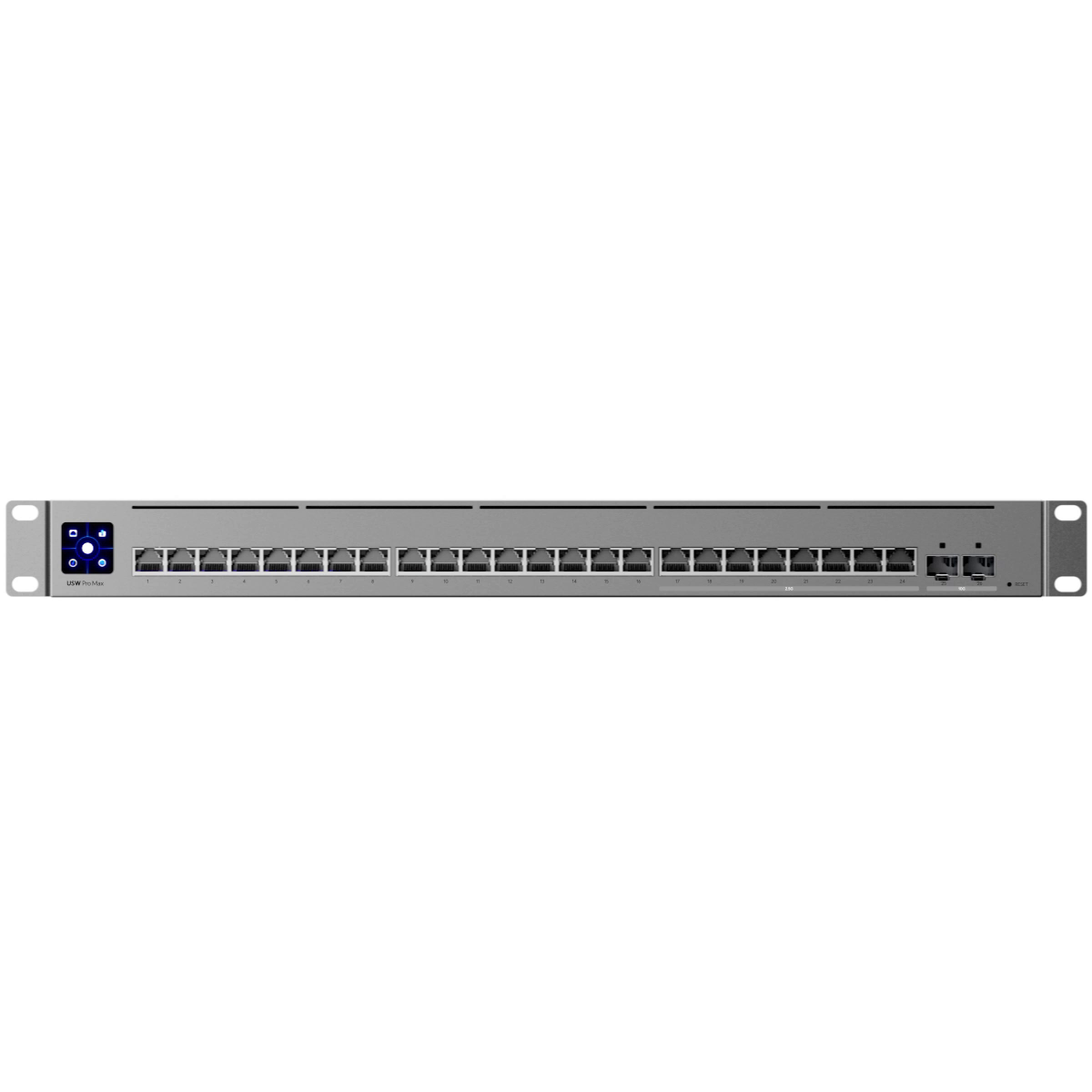

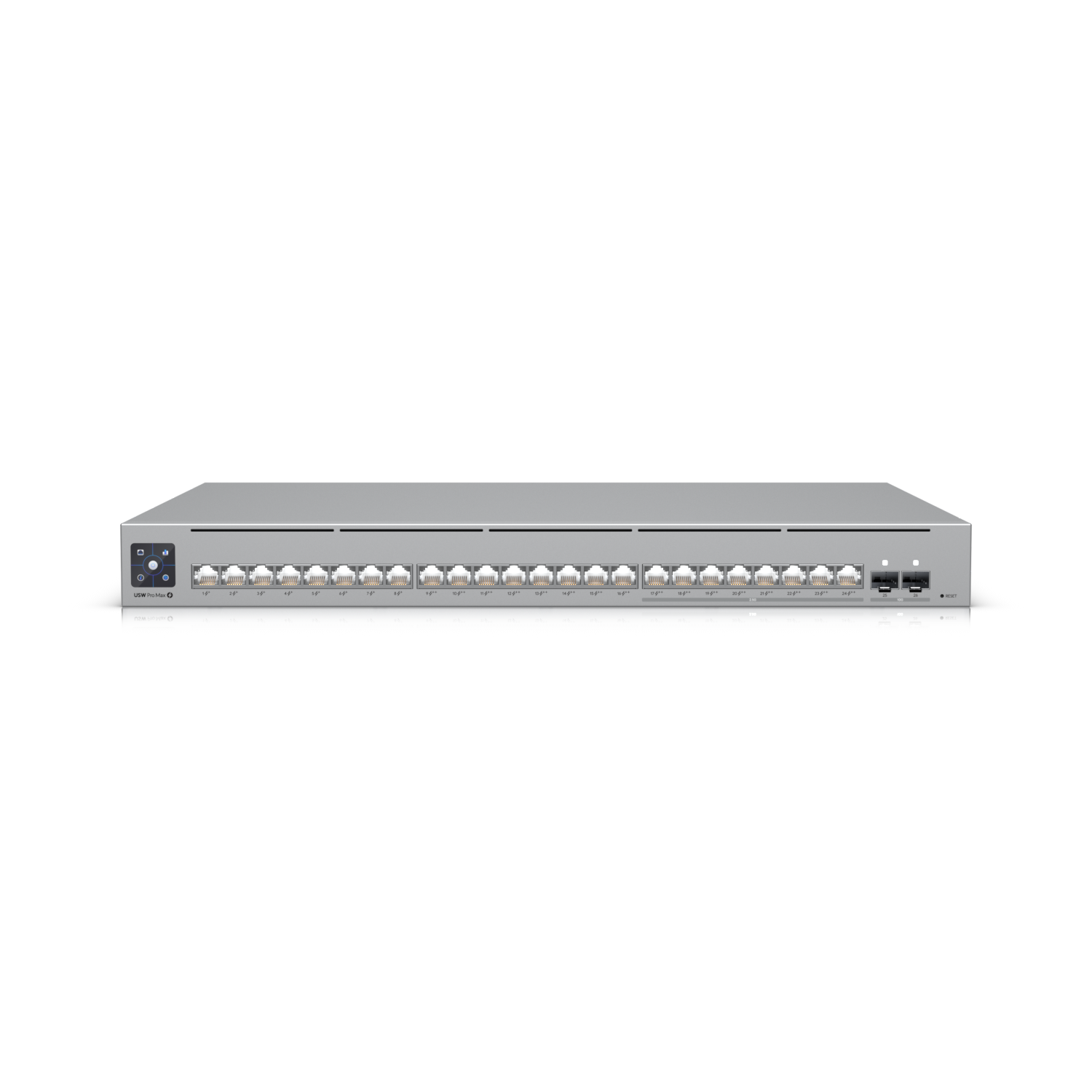

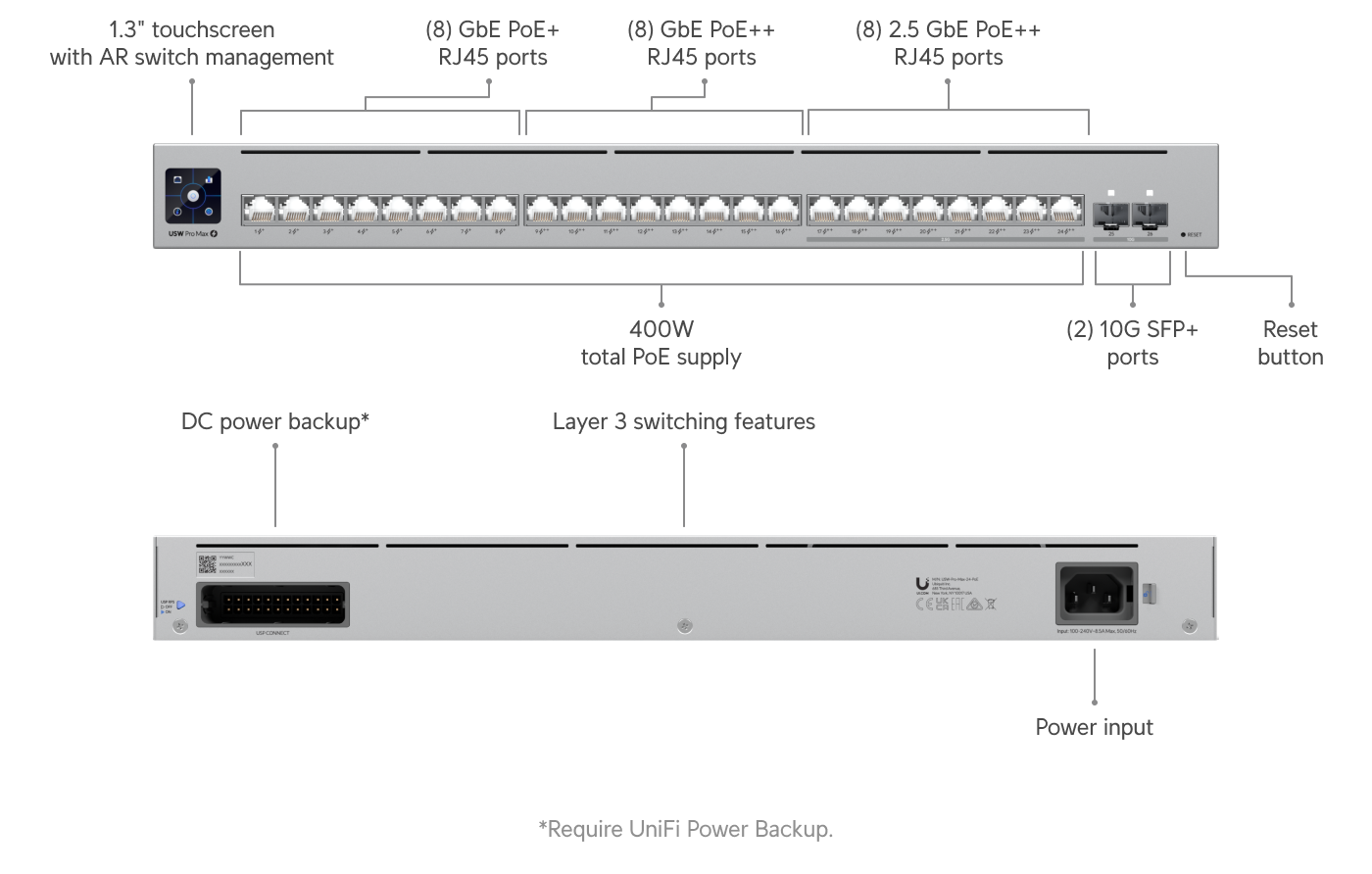

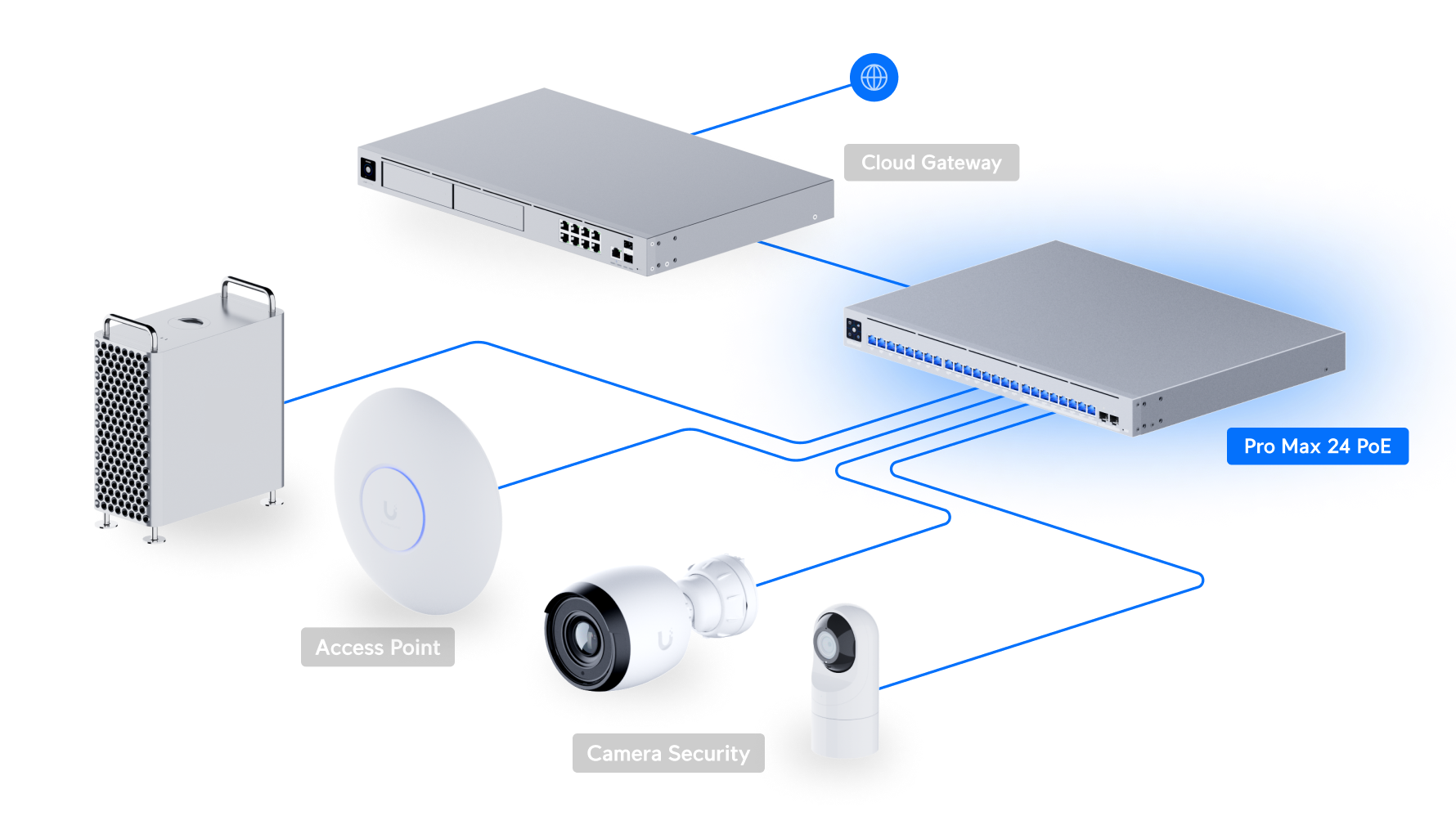

The Ubiquiti UniFi USW-Pro-Max-24-PoE is a high-performance managed Layer 3 Ethernet switch designed for professional and enterprise network environments. It features 24 total ports, including eight 2.5 GbE RJ45 ports with PoE++ support, sixteen 1 GbE RJ45 ports with a mix of PoE+ and PoE++ capabilities, plus two 10G SFP+ uplink ports for ultra-fast connectivity and aggregation. This switch supports a total PoE budget of 400 watts, allowing it to power a range of devices such as IP cameras, VoIP phones, and wireless access points with advanced IEEE 802.3af/at/bt standards.

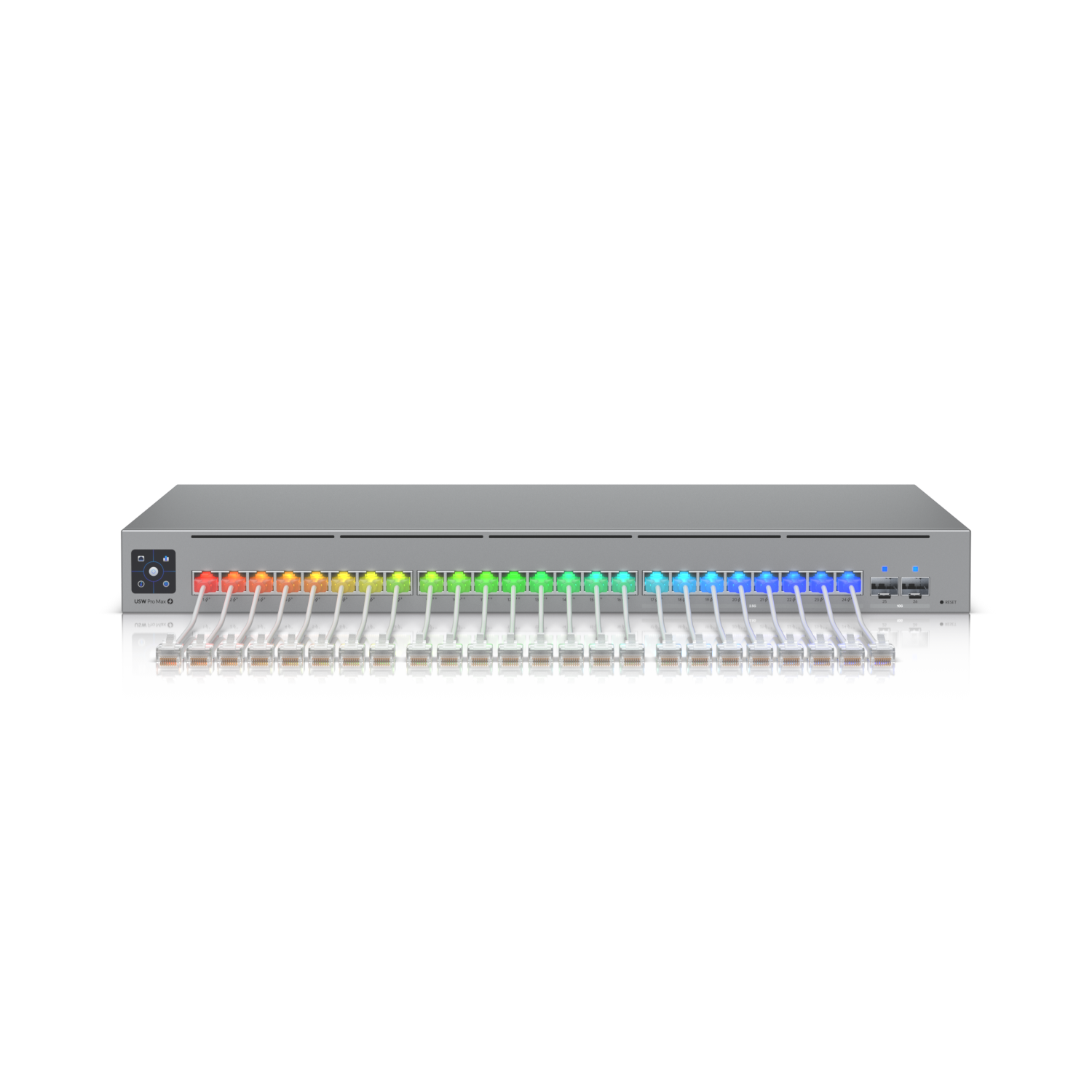

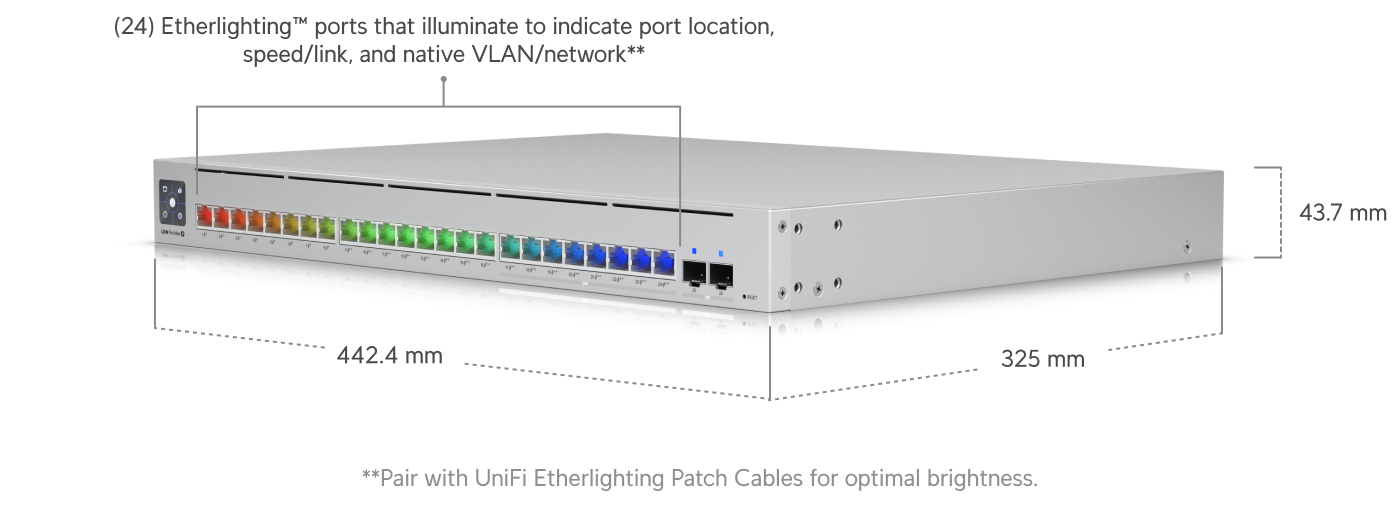

The unit is engineered for rack-mount installation with a 1U form factor and integrates Etherlighting™ technology—illuminated ports provide visual feedback on port location, connection speeds, and VLAN assignments. Local device status is easily monitored via a vibrant 1.3-inch touchscreen display. It also offers DC power backup readiness for enhanced reliability.

On the software front, the USW-Pro-Max-24-PoE supports extensive Layer 2 and Layer 3 network features such as DHCP Server and Relay, Inter-VLAN routing, static routes, Link Aggregation Control Protocol (LACP), Spanning Tree Protocol variants (STP/RSTP), IGMP snooping, ACLs, QoS, and security features like 802.1X and DHCP snooping. Designed for seamless integration within UniFi Network ecosystems, it supports up to 1000 VLANs and a MAC address table accommodating 16,000 entries.

Beyond performance, the switch boasts a switching capacity of 112 Gbps, non-blocking throughput of 56 Gbps, and a forwarding rate of 83 million packets per second for robust data handling. The enclosure is constructed with durable SGCC steel, and it supports rack depths from 400 to 1200 mm. Operating temperature ranges from -5 °C to 40 °C, making it suitable for various data center environments. Certifications include CE, FCC, IC, and Anatel, and it complies with NDAA security requirements.
