Ubiquiti Ultra 210W Compact Layer 2 8-Port GbE PoE Switch with 7 PoE+ Outputs & 1 GbE Port, 202W Total PoE, Versatile Mounting, Includes PSU
★ 0.0 Rating (0 user feedback)

SKU: usw-ultra-210w

Availability: In Stock

Brand: Ubiquiti

Category: Switches

$471.90


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The Ubiquiti Ultra 210W (USW-Ultra-210W) is a compact and powerful Layer 2 Gigabit Ethernet switch engineered for versatile deployment in small to medium networks. Featuring eight RJ45 GbE ports, including seven PoE+ output ports and one Gigabit port with PoE++ input capability, this switch offers flexible power and connectivity options for modern network environments.

  • Provides up to 202W total PoE output through the included 210W AC power adapter for powering devices such as IP cameras, VoIP phones, and wireless access points.
  • Supports PoE input via the GbE port, allowing operation from PoE++ or PoE+ sources with varying power availability.
  • Designed with a total non-blocking throughput of 8 Gbps and a switching capacity of 16 Gbps, ensuring efficient data management and low latency.
  • Advanced Layer 2 features include STP/RSTP support, port isolation, port mirroring, storm control, multicast and broadcast rate limiting, flow control, jumbo frames, and loop protection for secure and stable network operation.
  • Compatible with the UniFi Network application for streamlined network management and monitoring.
  • Compact form factor supports versatile mounting options including desktop, wall, and magnetic, fitting neatly into various professional environments.
  • Robust environmental compliance supports operating temperatures from -30 to 60 °C depending on power input method and includes key certifications (CE, FCC, IC) and NDAA compliance.
This switch is ideal for IT professionals seeking a reliable, scalable, and power-efficient networking solution with comprehensive features and simplified deployment options.

Physical

Weight320 g (device),770 g (adapter)
Enclosure MaterialPolycarbonate
Mounting OptionsDesktop,wall,magnetic
Rack Mount CompatibilityDesktop,wall,magnetic mounting options
weight_kg0.32
MaterialPolycarbonate
Form FactorCompact,Desktop,wall,magnetic mount

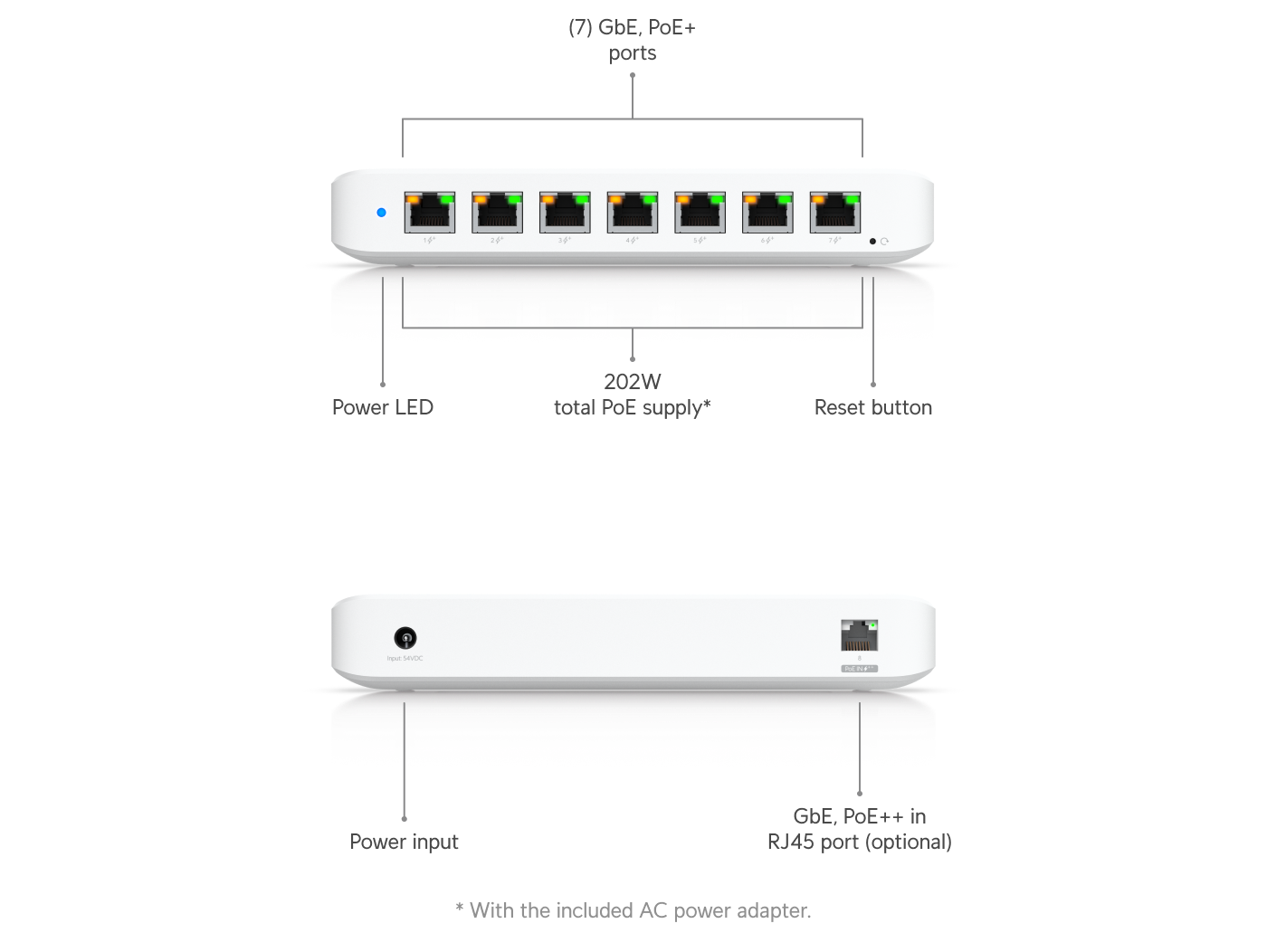

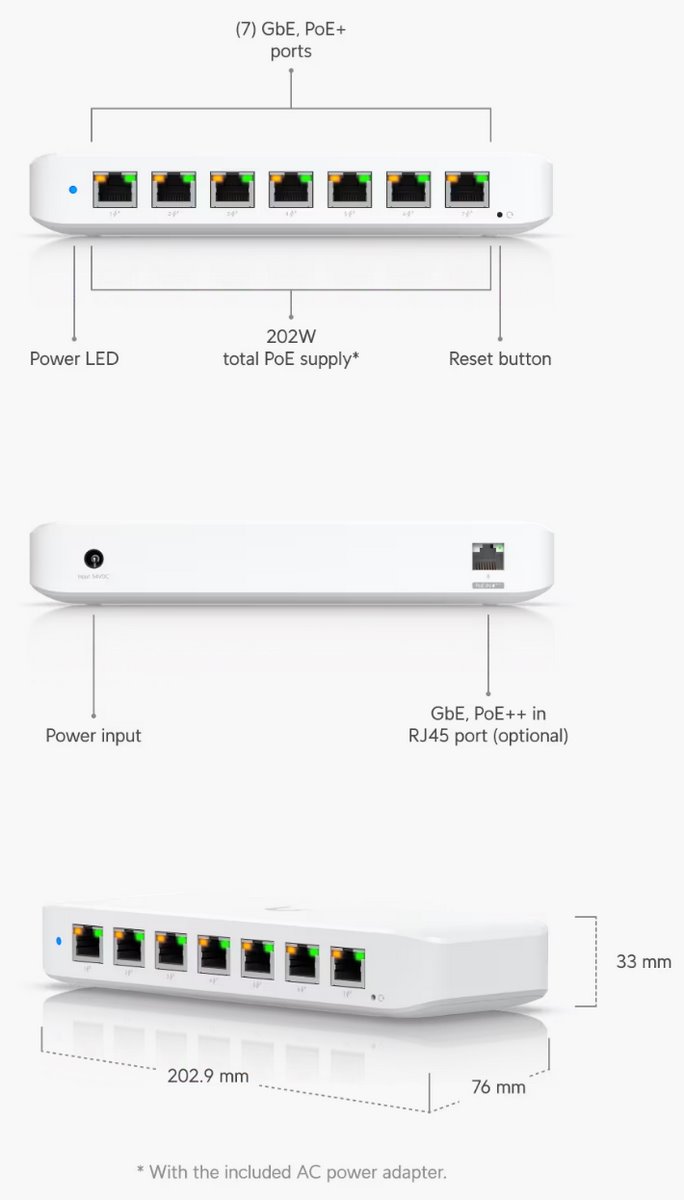

Ports8 x RJ45 GbE (7 PoE+ output,1 GbE port with PoE++ input)

Environmental

Operating Temperature-30 to 60 °C (PoE++ input),-20 to 60 °C (AC adapter input)

General

Voltage Range44\u201357 V DC
PoE Standards SupportedPoE (802.3af),PoE+ (802.3at),PoE++ input capable
Total PoE Output Power202W (with included 210W AC adapter)
ManagementManaged via UniFi Network application (Ethernet in-band)

Technical

MAC Address Table Size4,000 entries
VLAN SupportUp to 256 VLANs
Switch TypeLayer 2 Gigabit Ethernet
standards_protocolsIEEE 802.3af (PoE),802.3at (PoE+),802.3bt (PoE++) input capable
ports_10g0
mac_table_size4000
Layer SupportLayer 2 Gigabit Ethernet
VLAN Support256

Performance

Non-Blocking Throughput8 Gbps
Forwarding RateApproximately 12 Mpps
Switching Capacity16 Gbps
forwarding_rate_mpps12
non_blocking_throughput_gbps8
switching_capacity_gbps16

Power

Power Input54V 3.9A external power adapter (included),PoE++ input support
PoE StandardPoE (802.3af),PoE+ (802.3at),PoE++ input capable
total_poe_power_budget_w202
max_power_consumption_w210
Power Input54V 3.9A external power adapter (included),PoE++ input support

Identification

ModelUSW-Ultra-210W

Compliance

CertificationsCE,FCC,IC,Anatel,NDAA compliant

Identifiers

SKUUSW-Ultra-210W

Environment

operating_temperature_c-30 to 60 °C (PoE++ input),-20 to 60 °C (AC adapter input)
