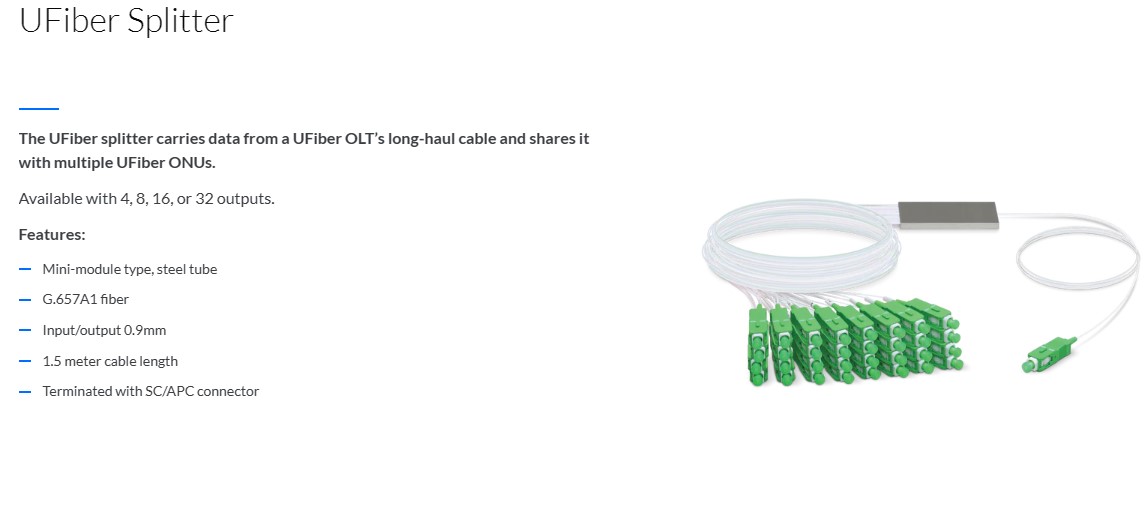

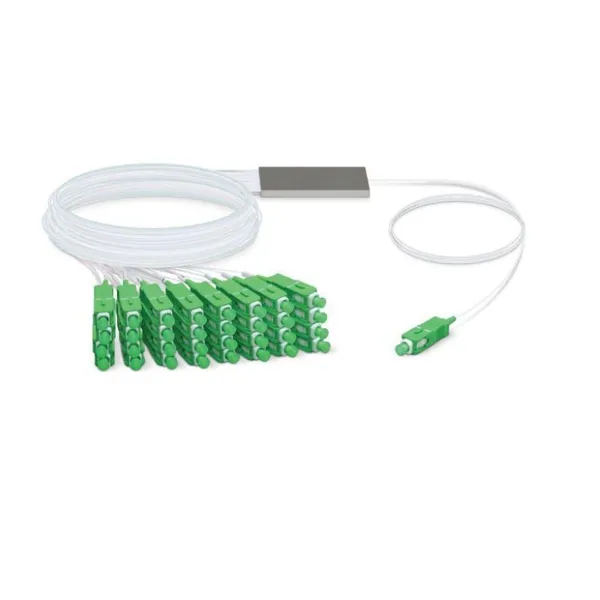

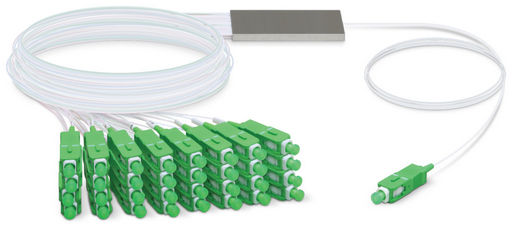

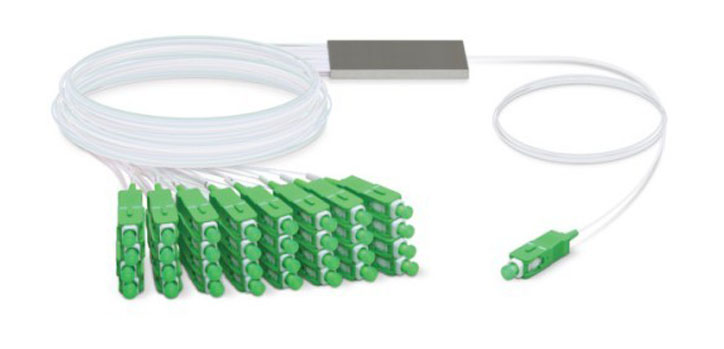

The Ubiquiti UFiber Gigabit Passive Optical Network Splitter 1:32 is an essential passive component designed for efficient distribution of optical signals in fiber networks, particularly in UFiber and UISP GPON deployments. This splitter takes a single incoming optical fiber signal from a UFiber OLT's long-haul cable and splits it into 32 output signals, facilitating point-to-multipoint FTTx architectures without requiring power or active electronics.

Key characteristics include robust SC/APC connectors on both input and outputs, utilization of low-bend-loss G657A1 fiber for improved signal integrity, and a wide wavelength bandwidth from 1260 nm to 1650 nm. The 1:32 split ratio model delivers an insertion loss of approximately 17.0 dB, maintaining high signal quality with a return loss of 50 dB and directivity of 55 dB across all ports.

Engineered to operate reliably in harsh environments, it supports an ambient temperature range from -40 °C to 85 °C and complies with NDAA standards, ensuring suitability for secure and demanding deployments. The pre-terminated 1.5-meter cable assembly simplifies field installation, reducing deployment time and minimizing potential connection errors.

Ideal for expanding fiber optic networks by connecting multiple ONUs through a single OLT fiber, this passive splitter enhances scalability and flexibility in modern broadband infrastructures.
