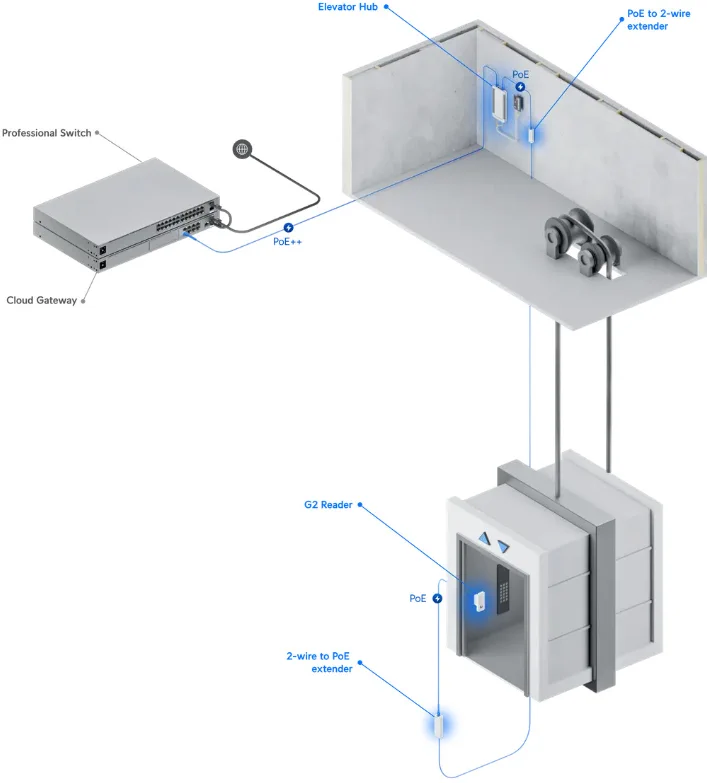

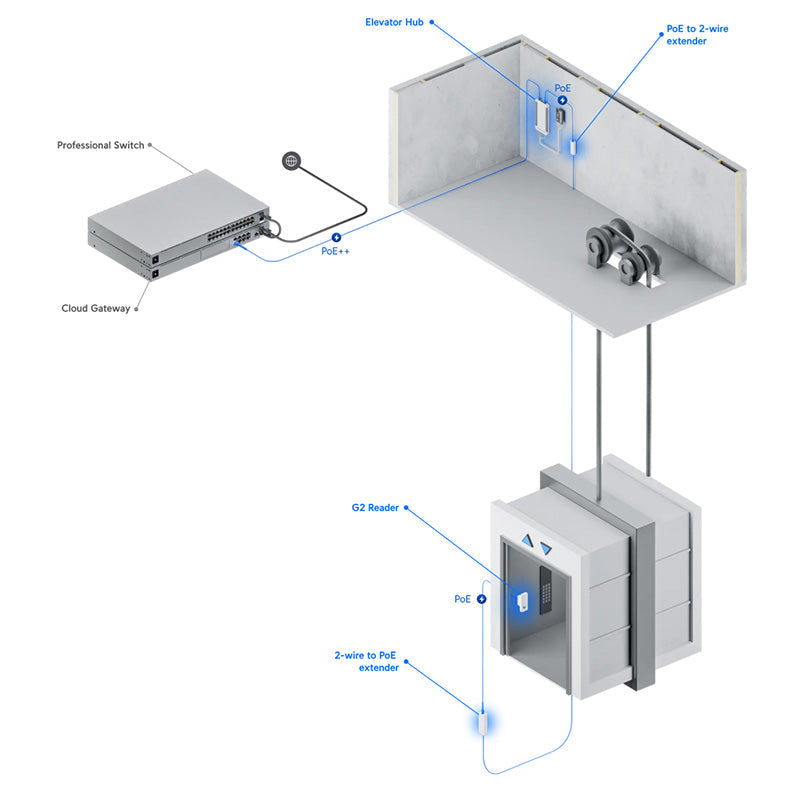

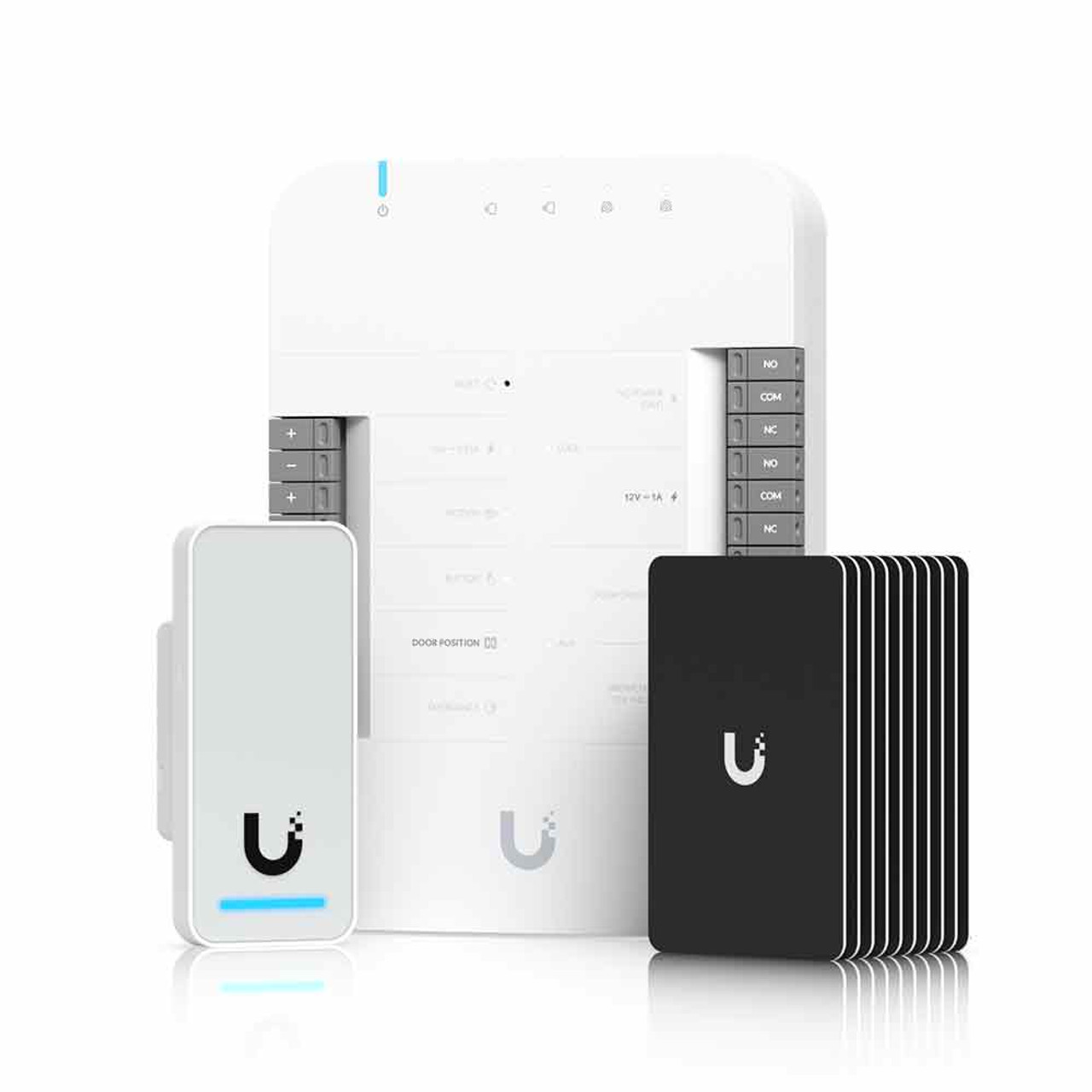

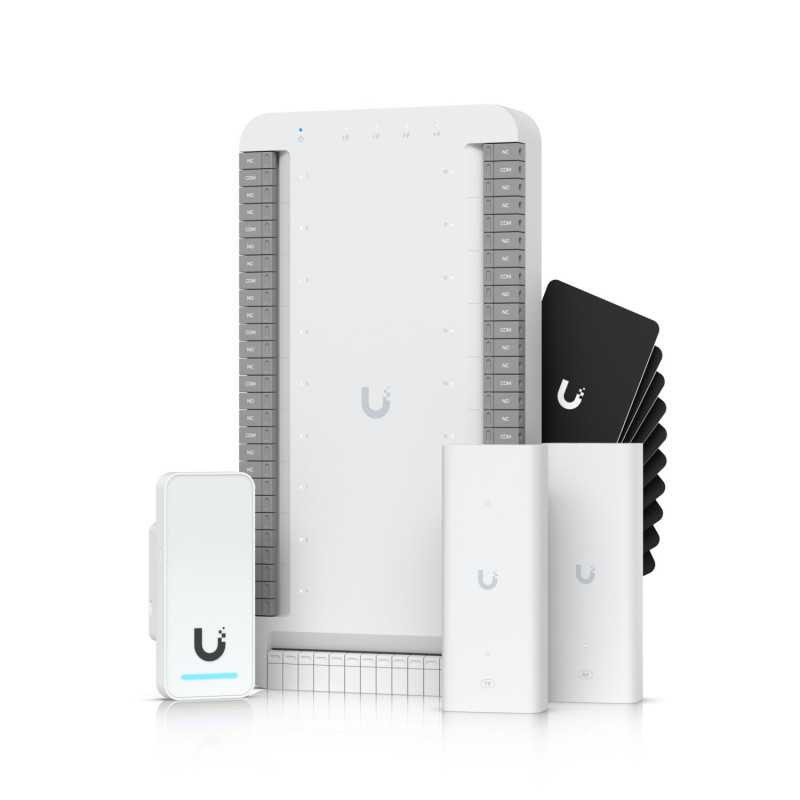

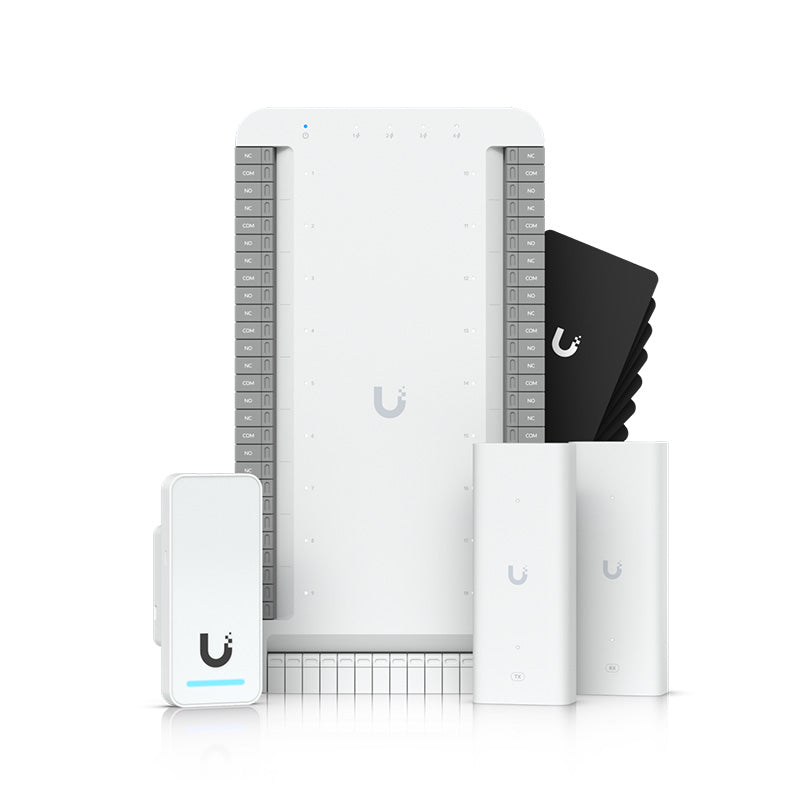

Ubiquiti Elevator Starter Kit (UA-SK-Elevator) is a comprehensive access control system designed for elevator floor selection authorization. It connects to in-elevator readers via PoE++ to securely manage user floor selection and supports up to 18 floors. The kit includes an Elevator Hub with multiple relay outputs, a G2 Reader with NFC and BLE capabilities, two 2-wire PoE extenders for leveraging existing cabling, and ten access cards for immediate deployment.

Key Features:

• Connects seamlessly to elevator readers using PoE++
• Controls up to 18 floors via 18 relay outputs rated at 30 V DC / 2 A

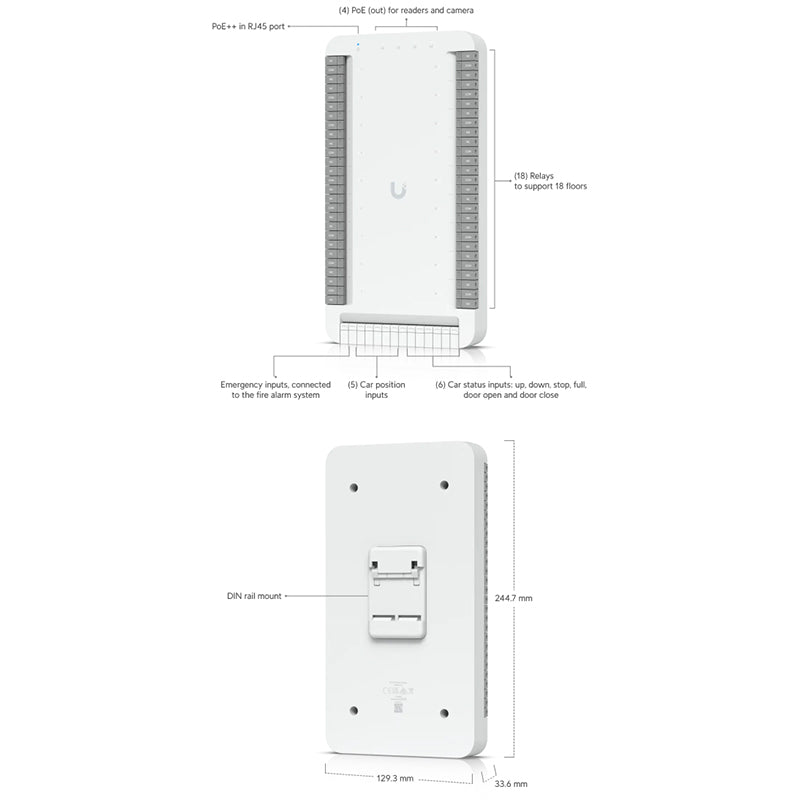

• Elevator Hub provides digital inputs for emergency, car status (Up/Down/Stop/Full), car position (5-bit), and door status (Open/Close)
• G2 Reader supports NFC cards, keyfobs, mobile unlock, and features IP55-rated weatherproofing

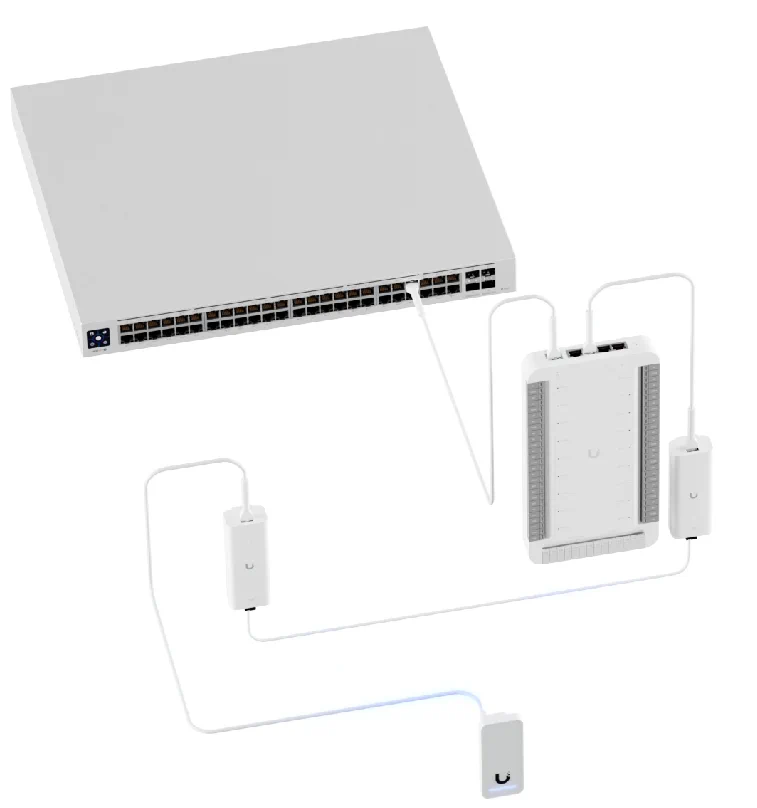

• Includes two PoE extenders to enable PoE++ delivery over existing two-wire cabling
• Robust networking with multiple Gigabit Ethernet ports, PoE++ input, and PoE+ outputs
• Certified for CE, FCC, IC, UL 62368-1, CAN/ULC-60839-11-1, and UL 294

Mechanical & Environmental:

• Elevator Hub Dimensions: 129.3 x 244.7 x 33.6 mm; Weight: 537 g


• G2 Reader Dimensions: 93 x 40 x 36.5 mm; Weight: 82 g


• Operating temperature ranges from -10°C to 40°C for the Hub and -30°C to 45°C for the Reader
