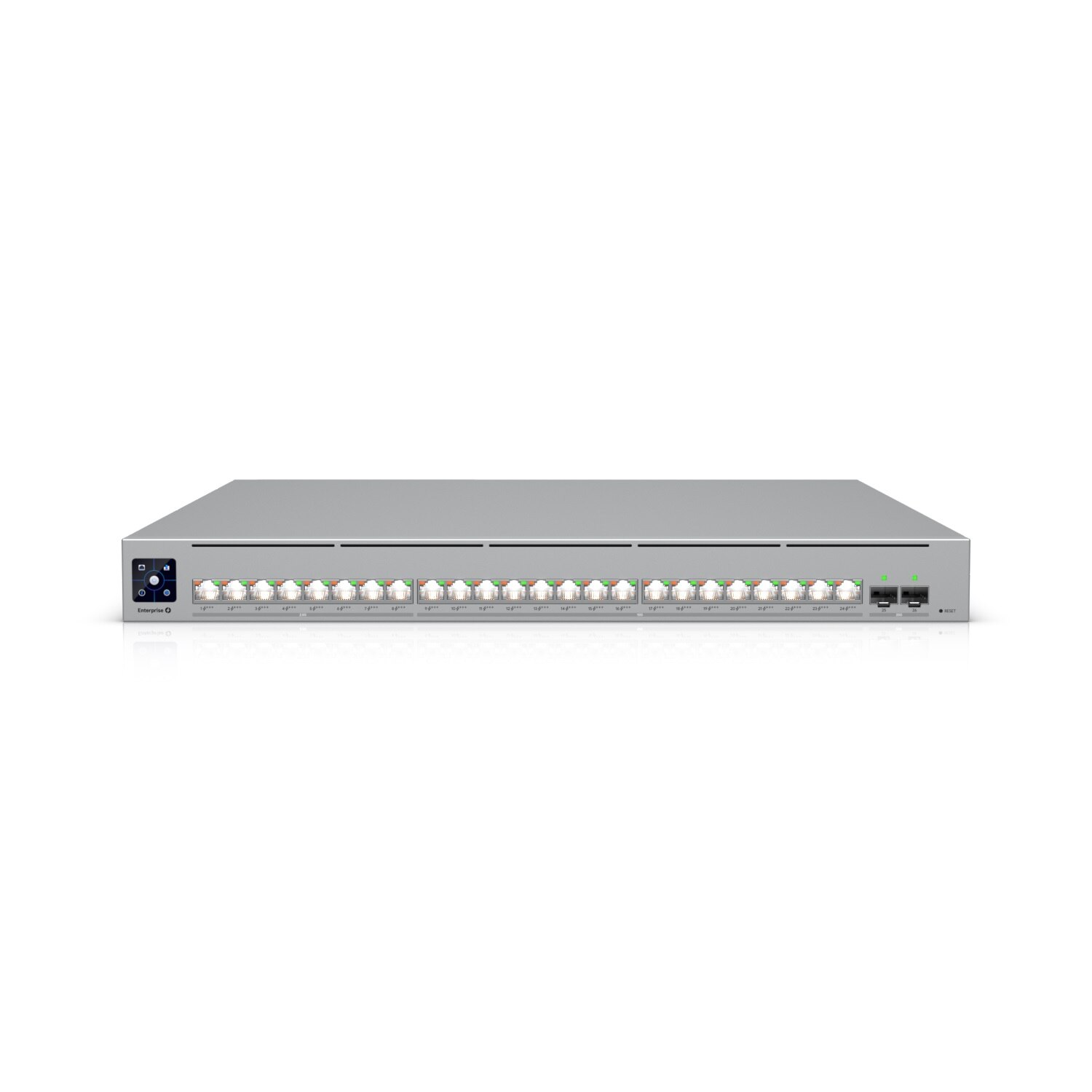

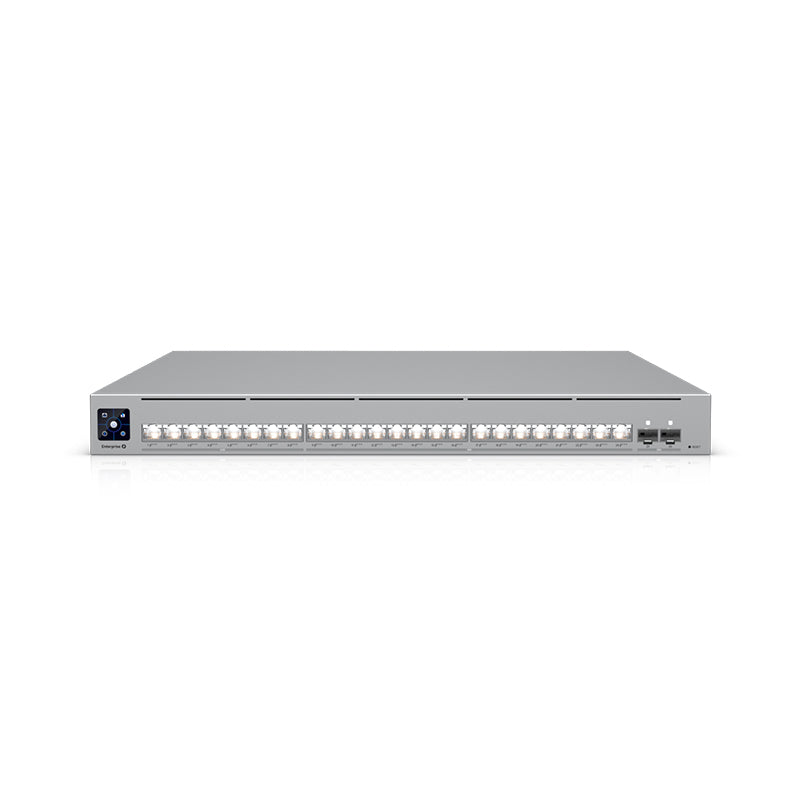

Ubiquiti ECS-24-PoE Enterprise Campus PoE+++ Switch offers advanced Layer 3 switching for high-density enterprise campus deployments. This 1U rack-mount switch features 24 total PoE+++ ports: a combination of 16 x 10 GbE RJ45 and 8 x 2.5 GbE RJ45 ports, delivering up to 90W per port and a total PoE budget of up to 1,050W depending on power module and voltage configuration.

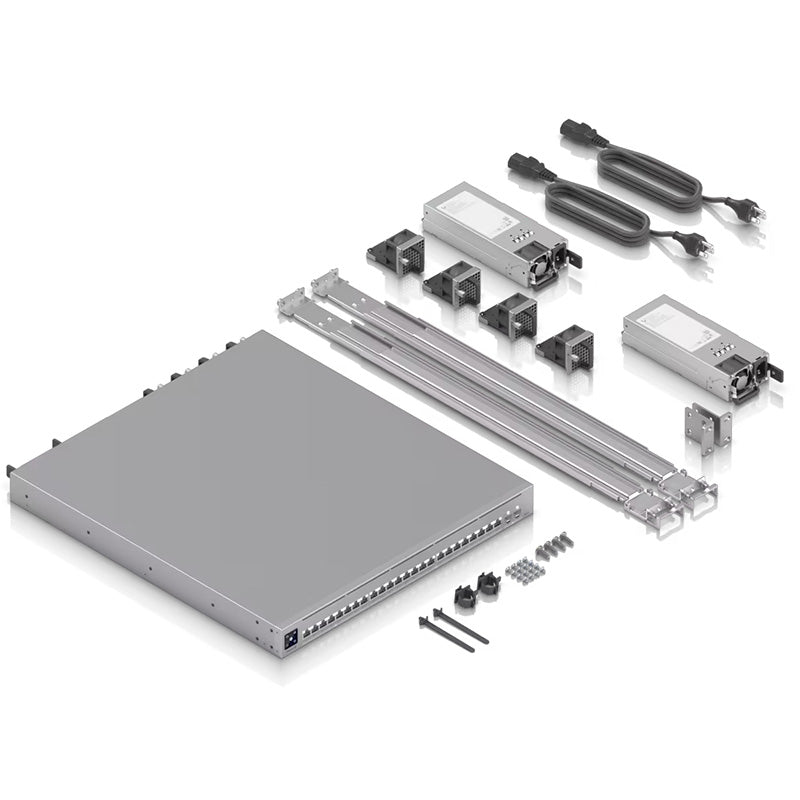

Equipped with 2 x 25G SFP28 uplink ports, it enables ultra-high capacity connections to aggregation layers or data center interconnects. Designed for high availability, the ECS-24-PoE includes dual hot-swappable 600W power supply modules and four hot-swappable fan modules (one fan configured as backup) ensuring seamless redundancy and cooling.

Performance highlights include a 460 Gbps switching capacity, 230 Gbps non-blocking throughput, and 342 million packets per second (Mpps) forwarding rate, fulfilling demanding enterprise network needs. The switch supports enterprise Layer 2 and Layer 3 functionality such as inter-VLAN routing, static routing, DHCP server/relay, link aggregation (LACP, MC-LAG), STP/RSTP, QoS, advanced multicast IGMP snooping, 802.1X authentication, and comprehensive VLAN & ACL configurations.

Further enhancing usability, a 1.3" LCD touchscreen provides local monitoring of system and connection status. The enclosure is crafted from durable SGCC steel and is NDAA compliant, with certifications including CE, FCC, and IC. Managed via the UniFi Network Controller (v9.0.114+), this switch is best paired with Enterprise Campus Aggregation devices for resilient campus network designs.

Key Features:

• 24 PoE+++ ports: 16 x 10 GbE RJ45 + 8 x 2.5 GbE RJ45


• 2 x 25G SFP28 high-capacity uplinks


• Dual hot-swappable 600W power modules


• Four hot-swappable fans with redundancy


• Total PoE budget up to 1,050W


• Enterprise Layer 2 and Layer 3 routing and switching features


• 1.3" LCD touchscreen for easy status overview


• 460 Gbps switching capacity and 342 Mpps throughput


• SGCC steel enclosure, NDAA compliant, CE/FCC/IC certified

Note: Requires Enterprise Deal Registration prior to order placement via the [Deal Registration Form](https://forms.office.com/r/yj8pRnmEWD).
