SKU: am-5g19-120
Availability: Out of Stock
Brand: Ubiquiti
Category: Access Points
100% Guarantee Safe Checkout

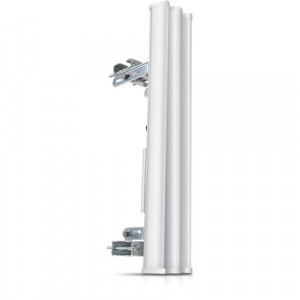

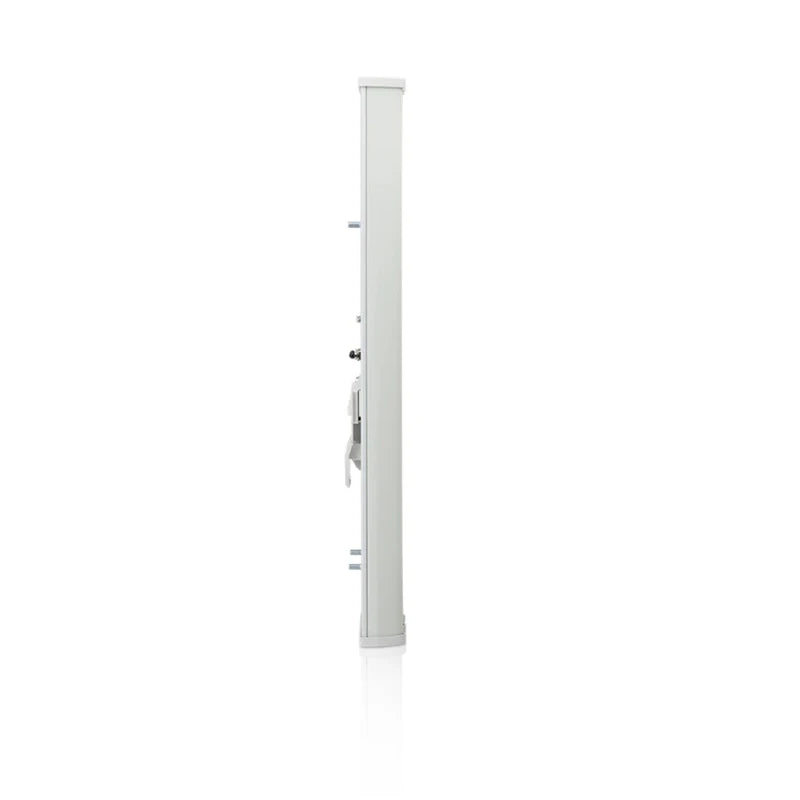

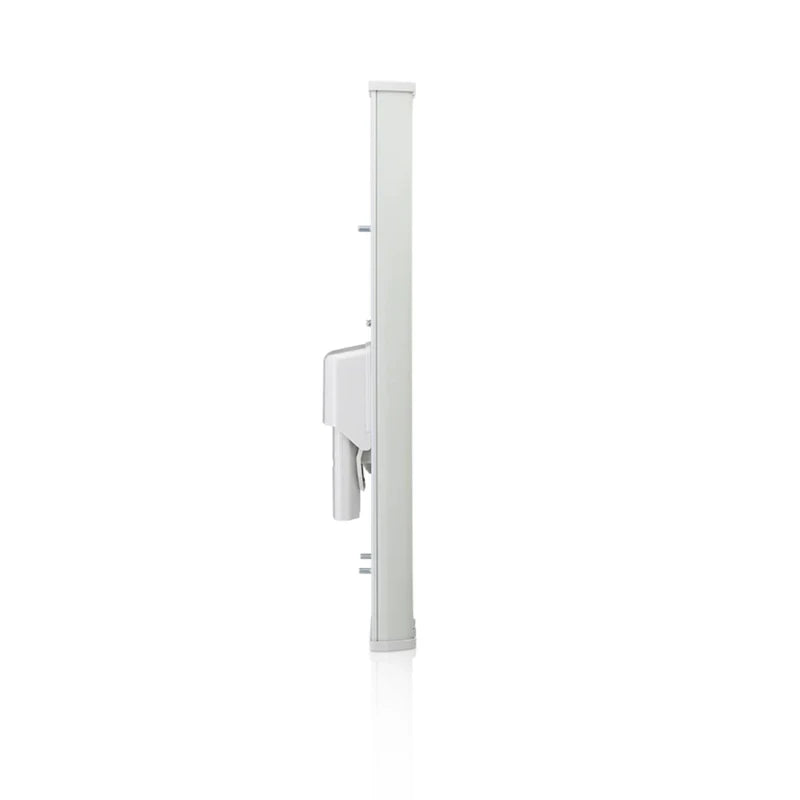

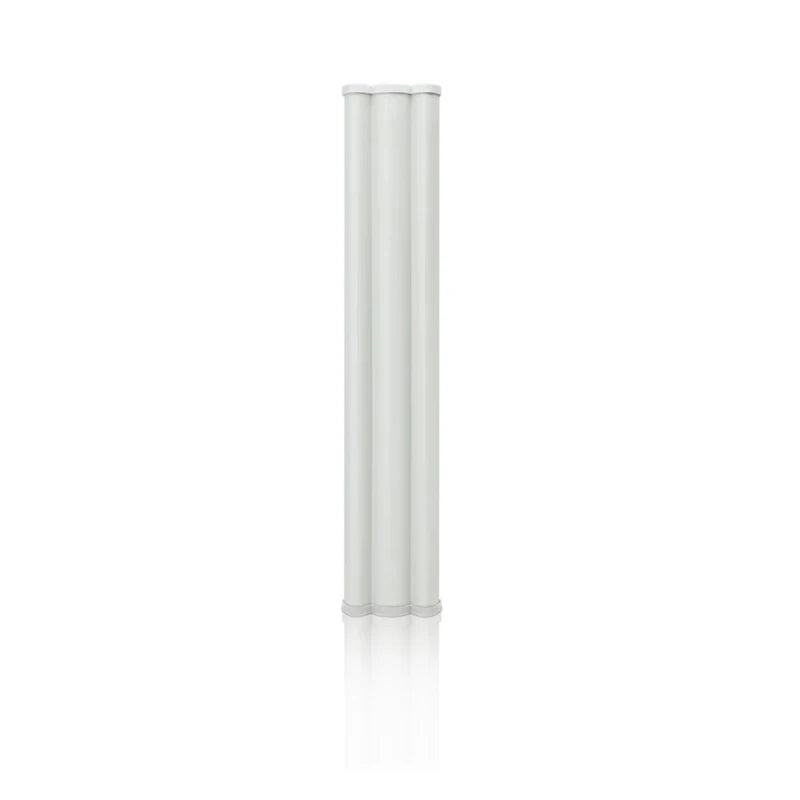

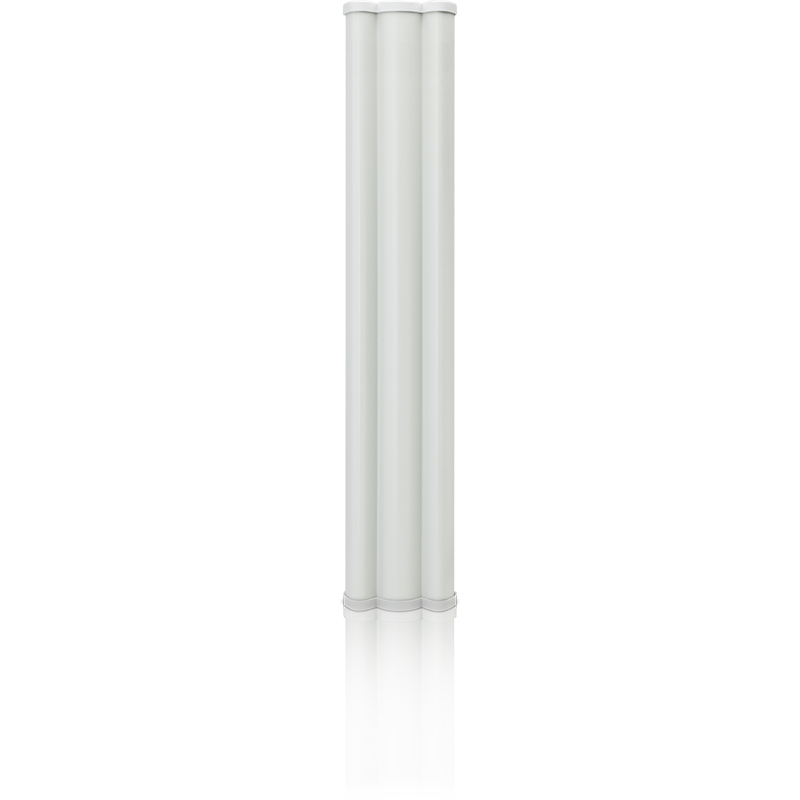

The Ubiquiti airMAX AM-5G19-120 is a high-performance 5 GHz sector antenna designed for Point-to-MultiPoint wireless basestation networks. Offering selectable beamwidth and gain options, it delivers 120° coverage at approximately 19 dBi or tighter 90° coverage at around 20 dBi, ideal for flexible deployment needs.
Equipped with dual-linear polarization (2×2 dual-polarity), this antenna supports MIMO configurations ensuring enhanced throughput and reliable client connections. The robust mechanical housing is engineered for outdoor environments, rated to withstand wind speeds up to 200 km/h, and includes weatherproof RF jumpers for durable protection.

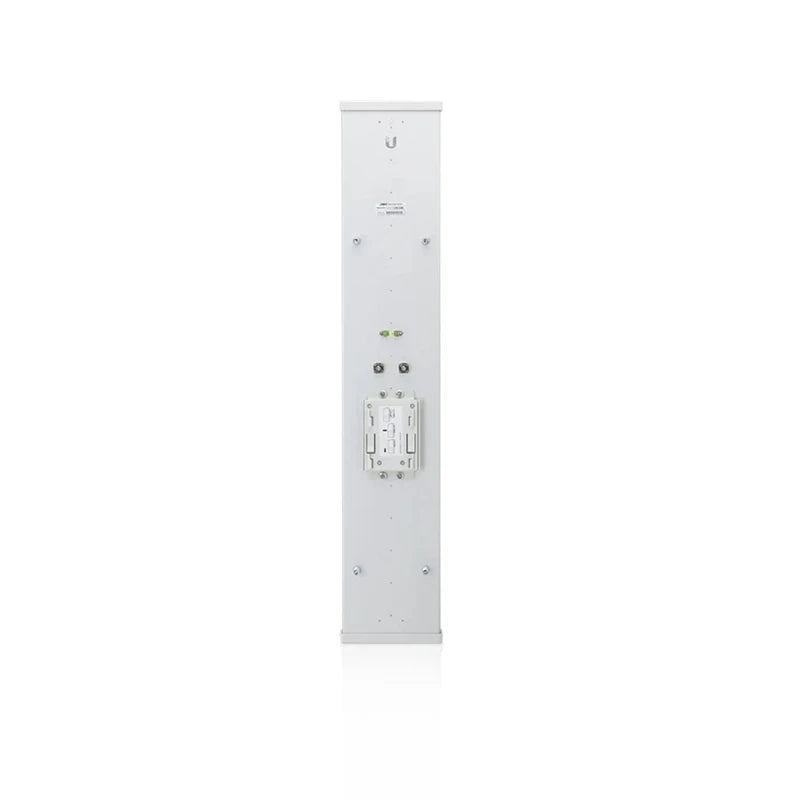

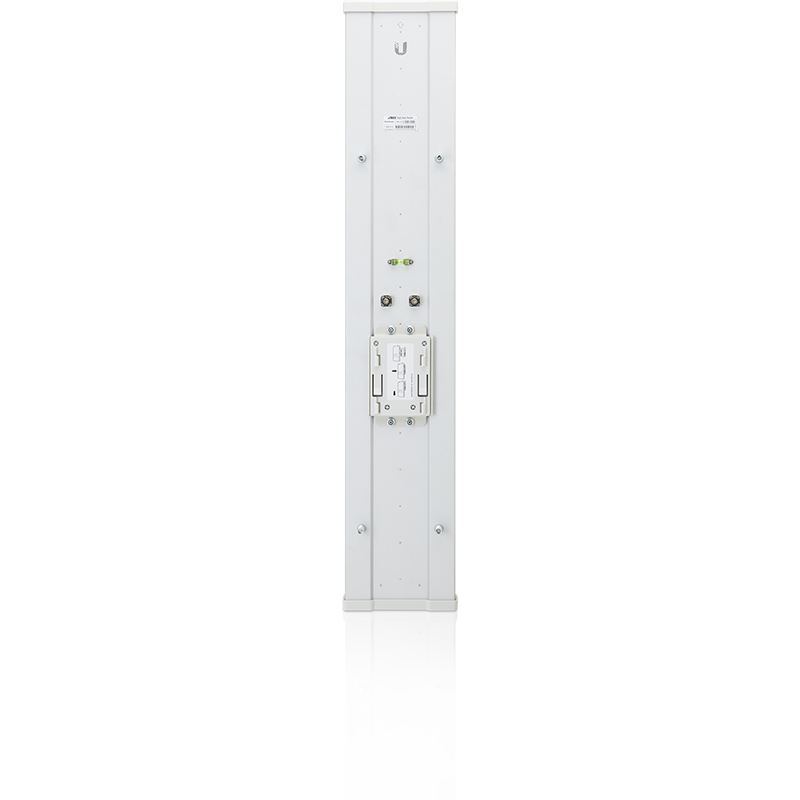

Installation is straightforward with an integrated RocketM mount compatible with Ubiquiti Rocket and Rocket Prism radios, simplifying network expansion. Key RF characteristics include a narrow elevation beamwidth (~4°), an electrical downtilt of 2°, and cross-polarization isolation greater than 28 dB, supporting focused and interference-resistant coverage. Compact dimensions and a thoughtful mounting kit make this antenna an excellent solution for carrier-class basestation performance and scalability.
| weight_grams | 5900 |
| Dimensions (LxWxH) | 700 x 135 x 73 mm |
| Polarization | linear 2x2 MIMO |
| gain_db | 19 |
| weight_g_with_mount | 5900 |
| Antenna Type | Sectorized directional antenna |
| Antenna Configuration | 2 Dual-Linear polarization; 19 dBi gain; 120\u00b0 beamwidth (90\u00b0 option) |
| Included Accessories | Pole mount,RocketM bracket,RF jumpers |
| Max VSWR | 1.5:1 |
| Weight (with mount) | 5.9 kg |
| Frequency Band | 5.15-5.85 GHz |
| Cross-Polar Isolation | \u2265 28 dB |
| Electrical Downtilt | 2\u00b0 |
| Beamwidth Vertical | ~4\u00b0 elevation |
| Gain | 19 dBi (120\u00b0) or 20 dBi (90\u00b0) |
| Beamwidth Horizontal | 120\u00b0 or 90\u00b0 selectable |
| dimensions_mm_width | 135 |
| dimensions_mm_height | 73 |
| dimensions_mm_length | 700 |
| Mount Type | Integrated RocketM mount |
| Mount Type | Built-in RocketM mount + Universal pole mount |
| SKU | AM-5G19-120 |
| Model Number | AM-5G19-120 |
| Wind Survivability | Up to 200 km\/h |
| wind_survivability_kmh | 200 |
| Frequency Range | 5.15\u20135.85 GHz |
| mimo_mode | 2 |
| Wireless Standards | airMAX (proprietary) |
| Frequency Range | 5.15\u20135.85 GHz |
| Ethernet Ports | 0 |
| Power Requirements | None (passive antenna) |
| VSWR | 1.5:1 |
| Model | AM-5G19-120 |
