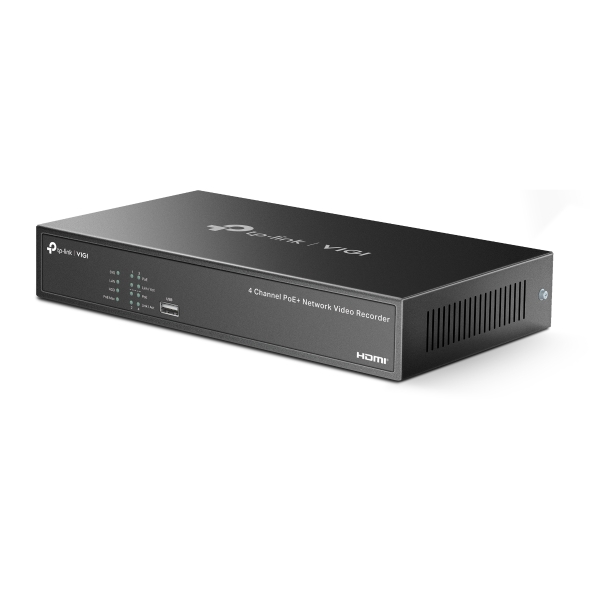

The TP-Link VIGI NVR1004H-4P is a professional 4-channel PoE+ Network Video Recorder designed for small business and advanced home security systems. It supports up to 8MP resolution per camera and offers a total decoding capacity of 16MP for crisp, detailed video surveillance. Experience flawless monitoring with 4K HDMI video output at 3840ร2160@30Hz, providing ultra-clear live viewing and playback.
Simplify installation with four 10/100 Mbps PoE+ ports delivering up to 53W total power, supplying data and electricity to compatible cameras via a single Ethernet cable without extra adapters. The NVR supports advanced H.265+/H.265/H.264+/H.264 compression technologies, reducing bandwidth usage and storage needs while maintaining high-quality video.

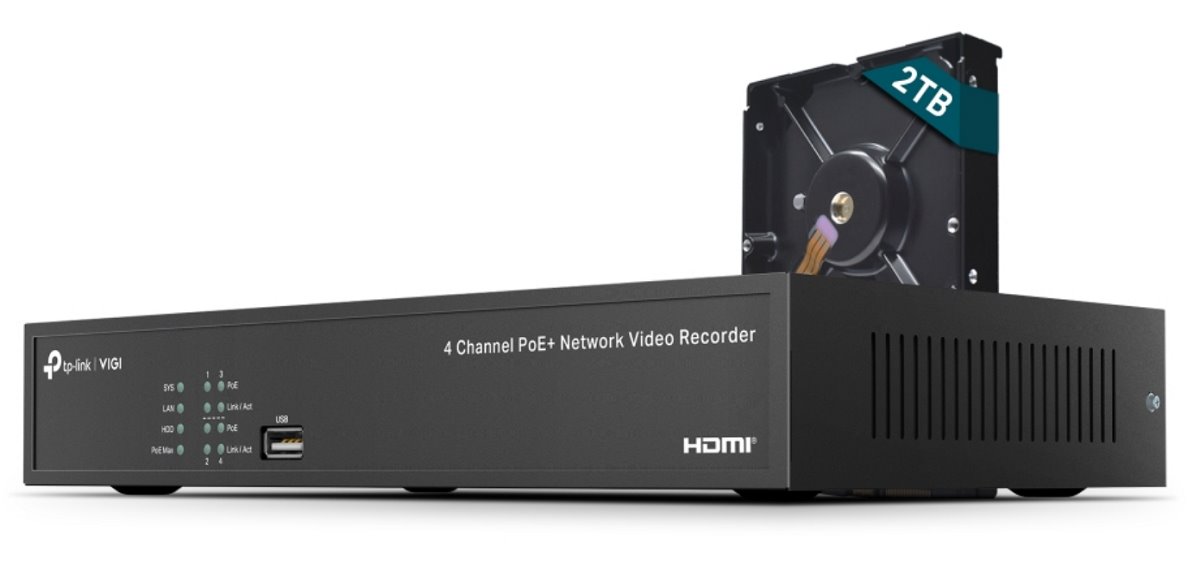

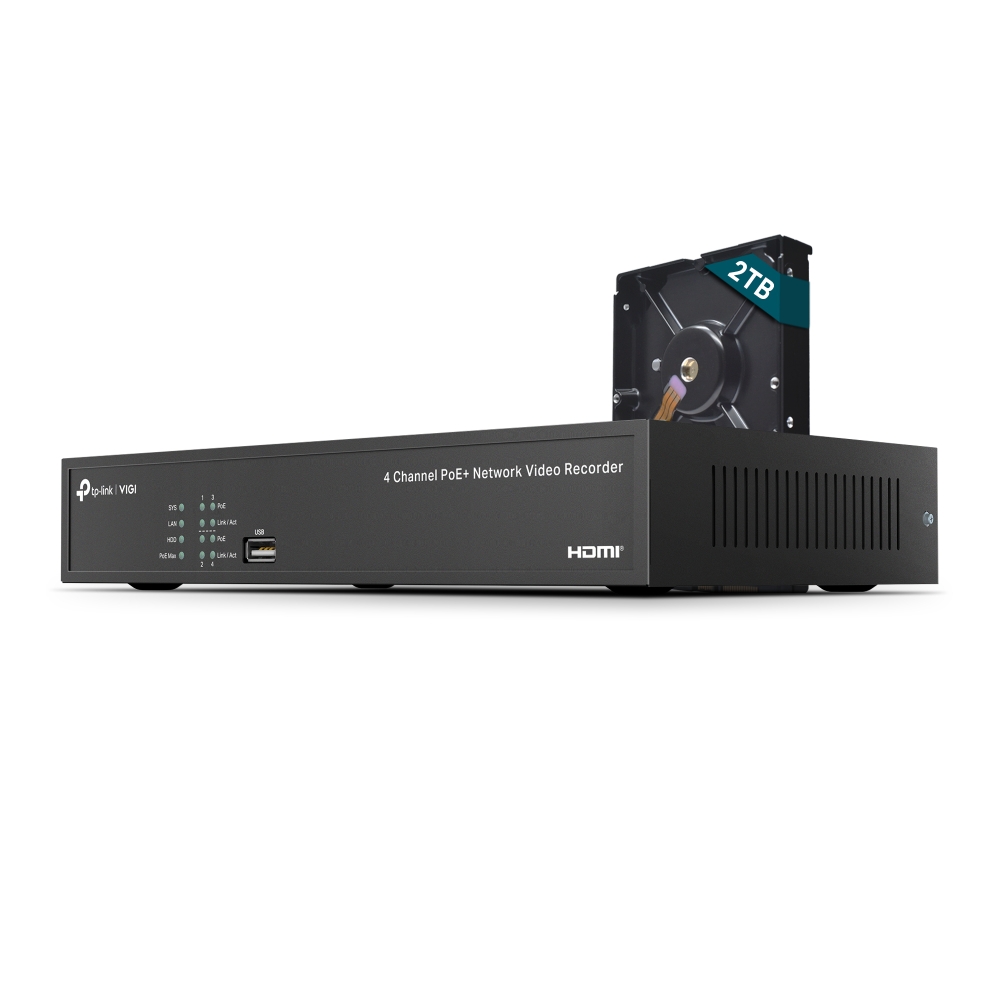

Equipped with a single SATA interface, it supports up to 10TB HDD for extensive 24/7 continuous recording (HDD not included; 2TB preinstalled models available). Manage recordings efficiently with multiple playback modes and versatile alarm triggers like motion detection, tampering, line crossing, intrusion, and more.
Remote management is seamless via VIGI App and Security Manager, offering real-time monitoring and two-way audio for interactive communication. Thanks to ONVIF Profile S/T/G compatibility, the NVR integrates effortlessly with various IP cameras across different brands.
Compact and reliable, the TP-Link VIGI NVR1004H-4P combines robust security features, flexible connectivity, and easy deployment, making it an excellent choice for comprehensive IP surveillance setups.
| Dimensions | 246.2 \u00d7 148.2 \u00d7 45 mm |
| Dimensions (mm) | 246.2 \u00d7 148.2 \u00d7 45 mm |
| Fixed Fiber Ports | N\/A |
| fixed_ports | 4\u00d7 10\/100 Mbps PoE+ ports |
| Audio Support | Two-way audio with intercom |
| USB Ports | Front and rear USB 2.0 |
| Alarm Types | Motion,tampering,intrusion,line cross |
| Preinstalled HDD | Optional 2TB HDD available |
| Video Bandwidth | 80 Mbps inbound,60 Mbps outbound |
| Compression Formats | H.265+\/H.265\/H.264+\/H.264 |
| Camera Resolution Support | Up to 8MP per channel |
| Max Decoding | Up to 16MP total decoding |
| PoE Ports | 4\u00d7 10\/100 Mbps with 53W total power |
| Video Output | 4K HDMI up to 3840x2160@30Hz |
| Channels | 4 Channel PoE+ support |
| Power Consumption | 4.25W no disk,13.1W with disk |
| Power Supply | 53.5 V DC \/ 1.31A external |
| Network Interface | 1\u00d7 RJ45 10\/100 Mbps |
| Network Connectivity | 1\u00d7 RJ-45 10\/100 Mbps LAN |
| Storage Interface | 1ร SATA,supports up to 10TB |
| max_storage_capacity_tb | 10 |
| Storage Options | 1\u00d7 SATA up to 10 TB HDD (2 TB preinstalled option) |
| video_resolution_max | 8MP |
| Compatibility | UPnP,NTP,ONVIF Profile S/T/G |
| power_consumption_watts | 13.1 |
| power_budget_watts | 53 |
| Model Number | VIGI NVR1004H-4P |
