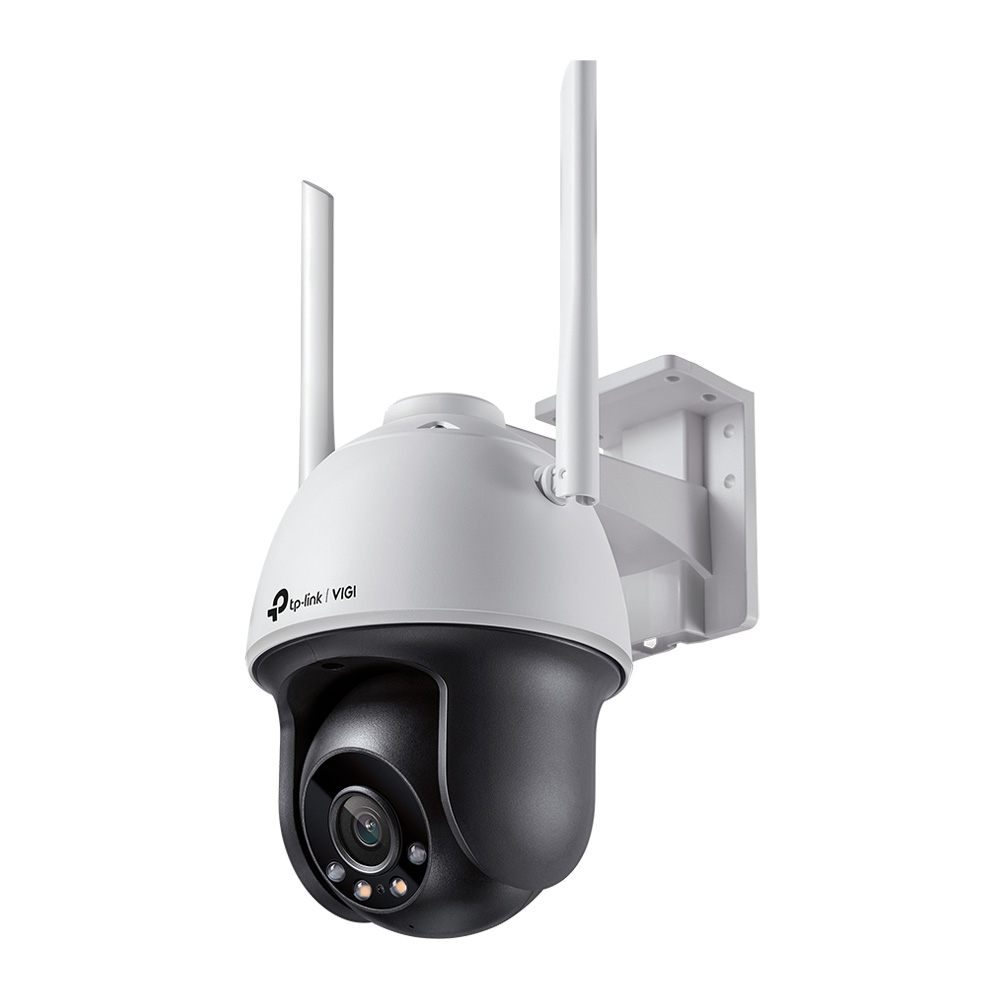

TP-Link VIGI C540-W(4mm) Outdoor Network Camera offers high-resolution 4MP (2560×1440) surveillance with full 24-hour color imaging. Equipped with a 1/3" progressive scan CMOS sensor and 4mm F1.6 lens, it delivers clear, detailed footage day and night using supplemental white LEDs and Smart IR technology for up to 30 meters of night illumination.
Enjoy extensive coverage with pan (0°–350°) and tilt (0°–120°) capabilities, customizable presets, patrol routes, and intelligent auto-tracking for persons and vehicles. The camera supports smart detection features such as human/vehicle classification, area intrusion, line crossing, video tampering, and abandoned/removed object detection, sending instant notifications upon any event.
Connectivity options include wired Ethernet (10/100 Mbps) and 2.4 GHz Wi-Fi with 2×2 MIMO antennas for flexible deployments. H.265+ compression optimizes bandwidth and storage efficiency while maintaining crystal-clear video quality. Onboard microSD card storage and integration with VIGI NVRs, VIGI app, and VIGI Security Manager allow easy video management.
Its rugged IP66-rated weatherproof design withstands harsh environments with an operating temperature range from -30 °C to 60 °C. Two-way audio with built-in microphone and speaker enhances interaction. Additional image enhancements like DWDR and 3D DNR improve visibility in challenging lighting.
Ideal for business or home outdoor security, the TP-Link VIGI C540-W ensures dependable, intelligent video monitoring with simple installation and superior performance.
| Certifications | CE,RCM |
| Dimensions | 120 \u00d7 172 \u00d7 198 mm (excluding antennas) |
| Weatherproof Rating | IP66 |
| Pan Range | 0\u00b0\u2013350\u00b0 |
| Dimensions (mm) | 120 \u00d7 172 \u00d7 198 |
| tilt_range_degrees | 120 |
| pan_range_degrees | 350 |
| Power Consumption | ~15.5 W (12V DC) |
| Power Input | 12V DC |
| max_power_w | 15.5 |
| Power Supply | 12V DC |
| Operating Temperature | -30 \u00b0C to 60 \u00b0C |
| Weather Resistance | IP66 |
| Connectivity | Wired 10/100 Mbps Ethernet,2.4 GHz Wi-Fi (2×2 MIMO) |
| Video Compression | H.265+\/H.265\/H.264+\/H.264 |
| Sensor Type | 1\/3\" Progressive Scan CMOS |
| Video Resolution | 2560\u00d71440 |
| Resolution | 4MP (2560\u00d71440) |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Smart Detection | Human/Vehicle classification,Intrusion,Line crossing,Tampering,Object detection |
| Lens | Fixed 4 mm,F1.6 |
| Storage Support | Onboard microSD card support (capacity per manufacturer specs) |
| Night Vision | Supplemental white LEDs + 2 IR LEDs,up to 30 m |
| Tilt Range | 0\u00b0\u2013120\u00b0 |
| Power Source | DC |
| Wireless Capability | 2.4 GHz Wi-Fi (2\u00d72 MIMO) |
| Network Interface | 10/100 Mbps Ethernet, 2.4 GHz Wi-Fi (2x2 MIMO) |
| Audio | Two-way audio (built-in microphone and speaker) |
| Night Vision Type | Infrared |
| Illumination | Supplemental white LEDs,2 IR LEDs |
| night_vision_distance_m | 30 |
| Model Number | VIGI 4MP C540-W(4mm) |
| Management Software | VIGI app,VIGI Security Manager,VIGI NVRs |
| Storage | Onboard microSD card (per manufacturer specs) |
| Image Sensor | 1\/3\" Progressive Scan CMOS |
