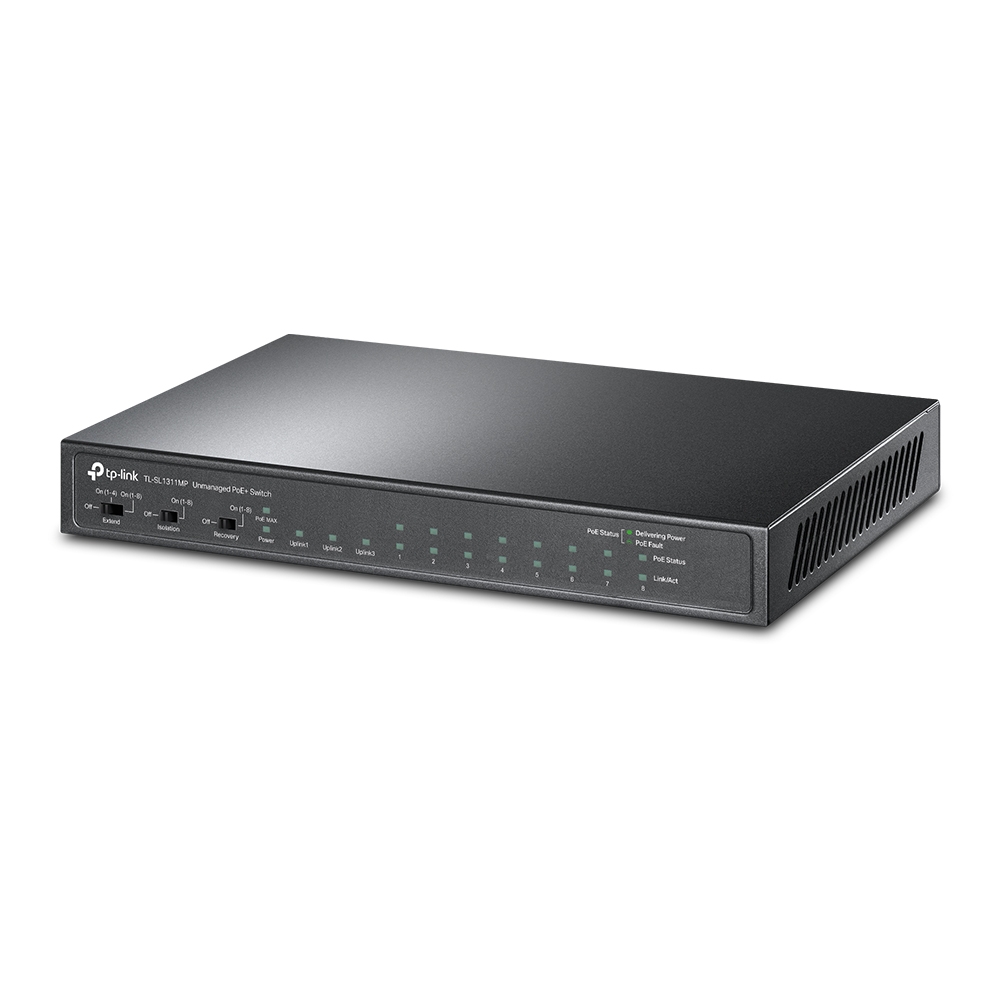

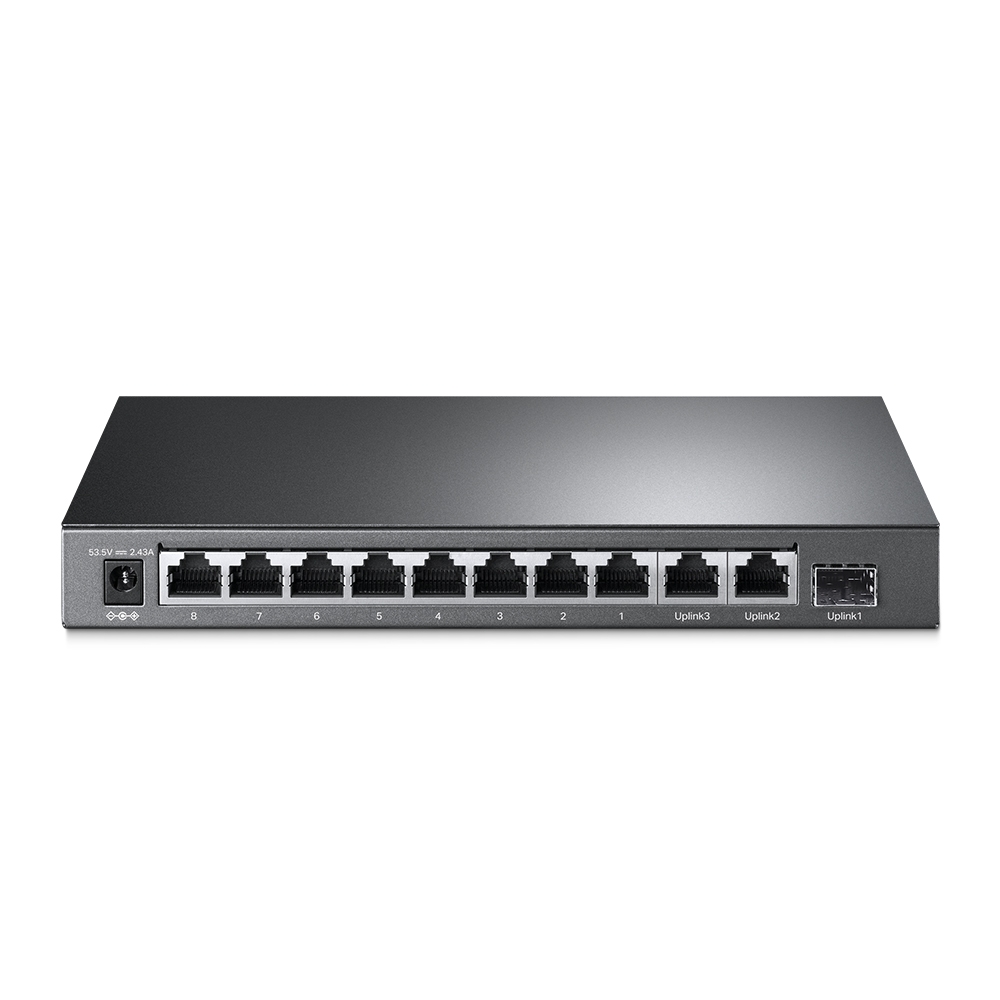

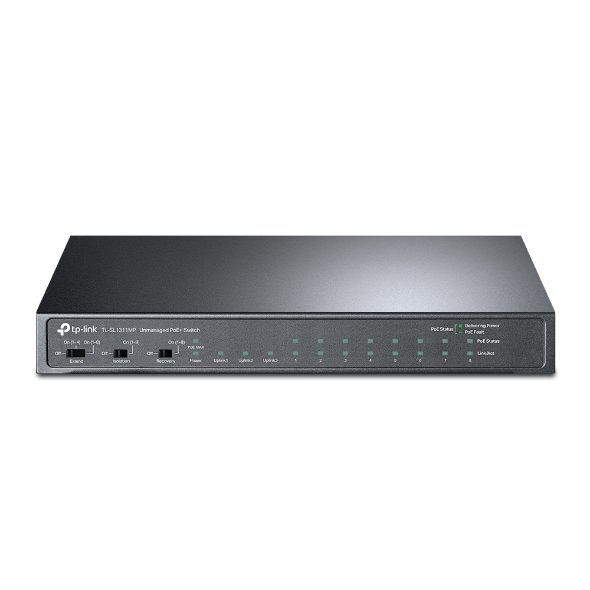

TP-Link TL-SL1311MP 11-Port Unmanaged Desktop Switch with 8-Port PoE+ (124W Budget), Gigabit Uplink & Extend Mode for 250m
โ˜… 0.0 Rating (0 user feedback)

SKU: tl-sl1311mp

Availability: Out of Stock

Brand: TP-Link

Category: Switches

$159.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The TP-Link TL-SL1311MP is a versatile unmanaged desktop switch ideal for small business and SOHO environments requiring reliable Power over Ethernet (PoE) support. It features 8 x 10/100 Mbps PoE+ ports that deliver up to 30 W each, with a total PoE budget of 124 W, enabling simultaneous power and data transmission over a single cable.

This switch provides enhanced connectivity with 2 Gigabit RJ45 uplinks and 1 Gigabit SFP port for high-speed backbone connection. The Extend Mode function allows select ports to operate over longer distances of up to 250 meters at 10 Mbps speed, accommodating extended PoE deployments such as surveillance systems.

With Isolation Mode, user traffic can be separated instantly to enhance network security and performance. The PoE Auto Recovery feature maintains device stability by automatically rebooting unresponsive powered devices.

Designed with a fanless architecture, the TL-SL1311MP operates quietly and efficiently. Additional hardware features include a MAC address table supporting 2,000 entries, jumbo frame handling up to 16 KB, and a switching capacity of 7.6 Gbps. The compact form factor and physical security lock add to its suitability for desktop use.

This switch employs store-and-forward transmission technique and supports IEEE802.3af/at compliant PoE devices, ensuring broad compatibility and stable network performance.

General

DesignFanless,desktop form factor
Humidity10%\u201390% non-condensing
Extend Mode RangeUp to 250 m at reduced 10 Mbps
Packet Forwarding Rate5.6544 Mpps
PoE Power Budget124 W total,up to 30 W per port
ManagementUnmanaged

Power

Max Power Consumption141 W (with full PoE load)
PoE StandardIEEE 802.3af\/at compliant
total_poe_power_budget_w124
poe_power_per_port_w30
PoE StandardIEEE 802.3af\/at
Power InputExternal Adapter 53.5 VDC \/ 2.43 A

Environmental

Operating Temperature0 to 40 \u00b0C
operating_humidity_percent10\u201390% RH non-condensing

Physical

Storage Temperature-40 to 70 \u00b0C
Dimensions (WxDxH)209 x 126 x 26 mm
Dimensions (mm)209 \u00d7 126 \u00d7 26 mm
CoolingFanless
Form FactorDesktop
Ports8 x 10/100 Mbps PoE+,Gigabit RJ45,1 x Gigabit SFP

Technical

Jumbo Frame SupportUp to 16 KB
MAC Address Table Size2000 entries
store_and_forward1
standards_protocolsIEEE 802.3af\/at
Jumbo Frame Support16384
ports_10g0
mac_table_size2048

Performance

Switching Capacity7.6 Gbps
forwarding_rate_mpps5.6544
switching_capacity_gbps7.6

Environment

operating_temperature_c0\u201340 \u00b0C
