SKU: poe160s
Availability: Out of Stock
Brand: TP-Link
Category: Networking Accessories
100% Guarantee Safe Checkout

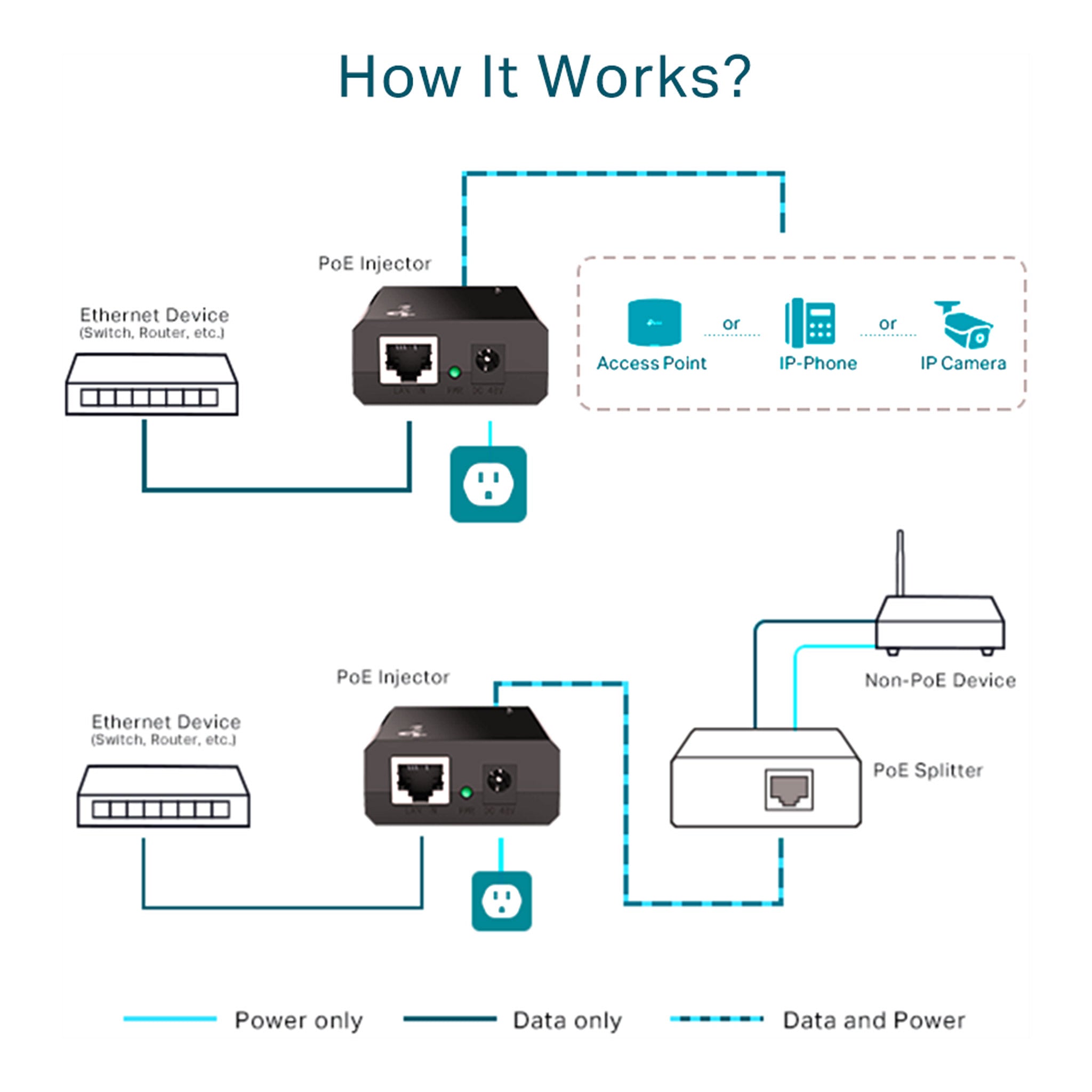

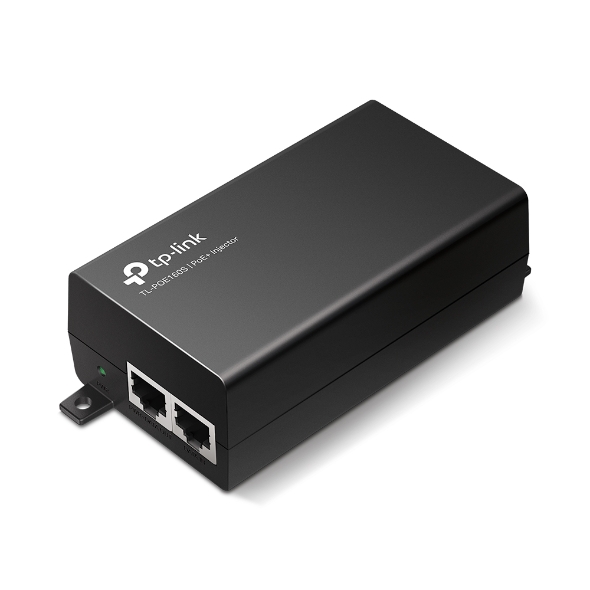

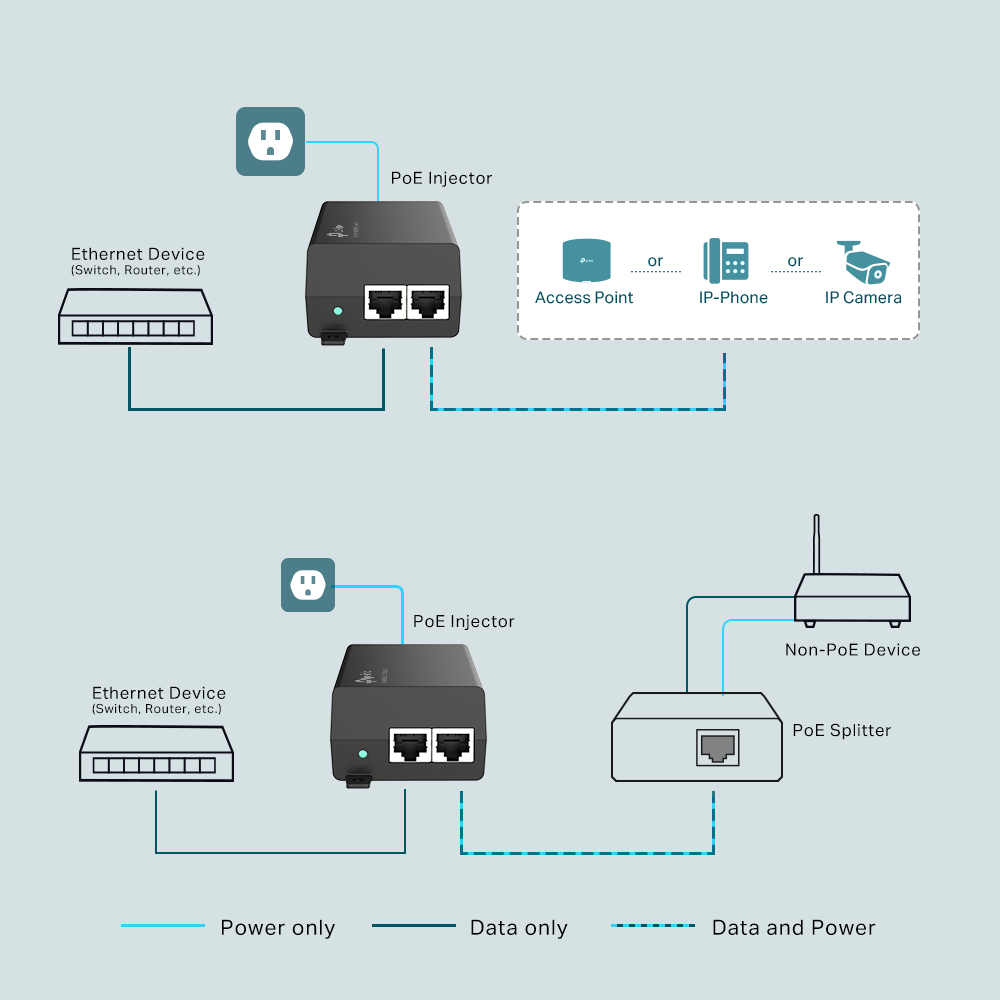

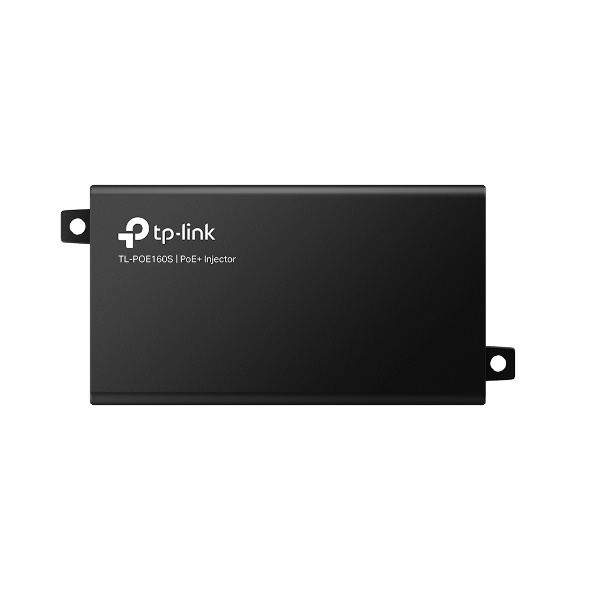

The TP-Link TL-POE160S is a high-performance PoE+ injector designed to efficiently power and connect your network devices through a single Ethernet cable. Supporting the latest IEEE 802.3af/at standards, it delivers up to 30 W of power, ideal for access points, IP cameras, and VoIP phones without the need for additional power sources. Featuring two Gigabit RJ45 portsโโone for data input and one for power and data outputโโit supports 10/100/1000 Mbps speeds to ensure fast, reliable network transmission.
Equipped with an integrated power supply and an AC socket, the device offers flexible installation with wall-mount and desktop options, complete with a mounting kit. Its Auto-Sensing technology intelligently detects connected powered devices and supplies the exact power needed, enhancing efficiency and safety. The user-friendly plug-and-play setup requires no configuration, and LED indicators provide clear power and PoE status. With support for up to 100 meters transmission over standard Ethernet cabling (Cat5/5e/6), and certifications including FCC, CE, and RoHS, the TL-POE160S ensures durable and compliant network deployment under various environmental conditions.
| Storage Temp. | -40\u00b0C to 70\u00b0C (-40\u00b0F to 158\u00b0F) |
| Operating Temp | 0\u00b0C to 40\u00b0C (32\u00b0F to 104\u00b0F) |
| Data Rate | 10\/100\/1000 Mbps (Gigabit Ethernet) |
| Ethernet Cabling | Cat5,Cat5e,Cat6,up to 100 m |
| Max Power Output | Up to 30 W per port |
| storage_temperature_max_c | 70 |
| storage_temperature_min_c | -40 |
| operating_temperature_max_c | 40 |
| operating_temperature_min_c | 0 |
| Pack Quantity | 1 |
| cable_length_with_cap_m | 100 |
| Dimensions (W x D x H) | 125 x 59.4 x 36.8 mm |
| Ports | 1 data-in + 1 power+data-out RJ45 |
| Cable Length (m) | 100 |
| dimensions_mm_h | 36.8 |
| dimensions_mm_w | 59.4 |
| dimensions_mm_l | 125 |
| environmental_operating_temperature_unit | Celsius |
| Power Input | 100-240 V AC,50/60 Hz |
| Power Supply | Integrated with AC socket |
| PoE Standard | IEEE 802.3af\/at compliant |
| Operating Humidity | 10% to 90% RH non-condensing |
| operating_humidity_max_pct | 90 |
| storage_humidity_max_pct | 90 |
| storage_humidity_min_pct | 5 |
| operating_humidity_min_pct | 10 |
| Certifications | FCC,CE,RoHS |
| LED Indicators | Power and PoE status |
| Installation | Wall-mountable and desktop |
| Auto-Sensing | Detects PDs & auto supplies power |
| LAN Speed Support | 1 Gbps |
| Product Type | PoE Injector |
| Model Number | TL-POE160S |
| poe_power_output_w | 30 |
| Powering Type | PoE+ (4-pair) |
| PoE Support | PoE+ (IEEE 802.3af\/at) |
| Model | TL-POE160S Omada PoE+ Injector |
