SKU: mcrp100
Availability: Out of Stock
Brand: TP-Link
Category: Power Supplies
100% Guarantee Safe Checkout
The TP-Link TL-MCRP100 is a high-reliability redundant power supply module specifically designed for the TL-MC1400 14-slot rackmount media converter chassis. Supporting a wide AC input range of 100โ240V at 50/60Hz, it delivers a stable DC output with a rated power of up to 102W to ensure uninterrupted operation of critical media converter setups.
This power module features advanced protection mechanisms including output over-voltage, short circuit, and over-current safeguards, enhancing the safety of both the power supply and connected devices. Its hot-swappable design allows for easy replacement and system redundancy, minimizing downtime in network environments.

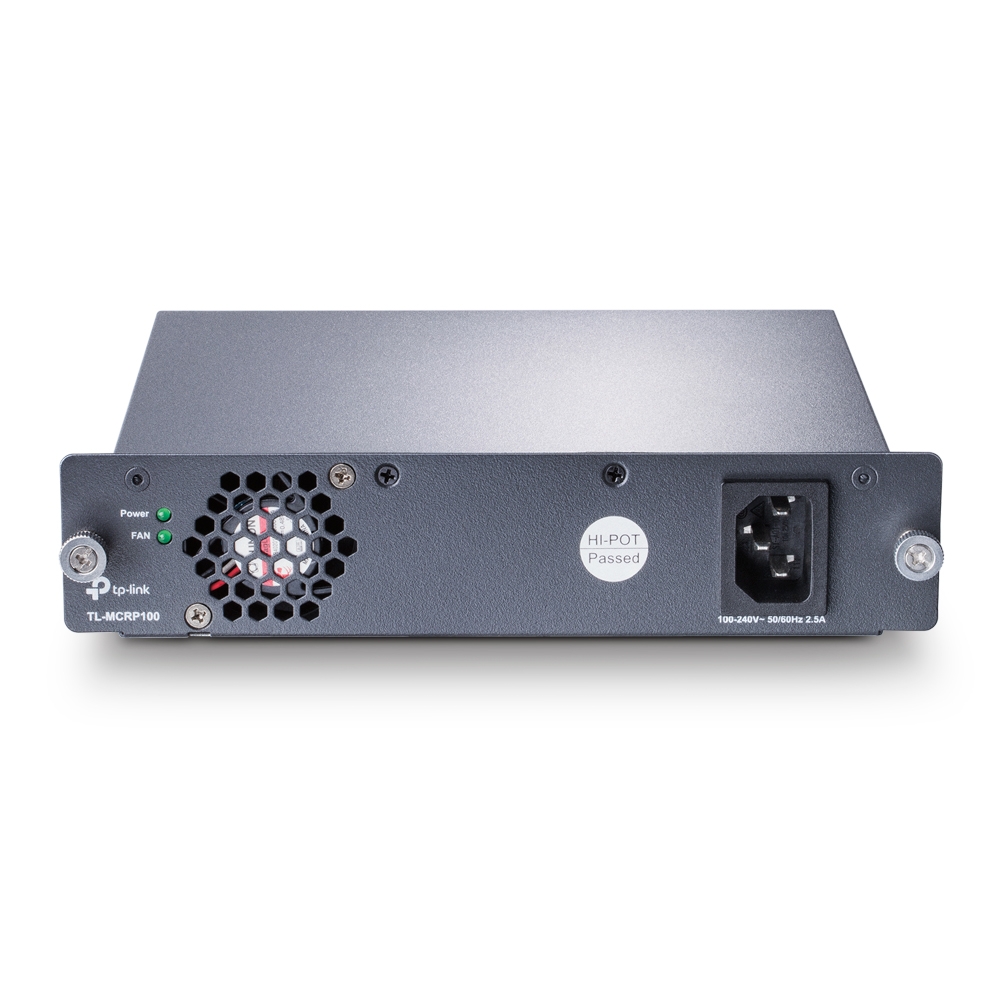

Built with a single cooling fan and equipped with front panel LED indicators for power and fan status, the TL-MCRP100 combines performance and ease of monitoring. It operates reliably within a wide environmental range (0ยฐC to 60ยฐC operating temperature) and supports non-condensing conditions, suitable for demanding rack installation scenarios.
Overall, the TL-MCRP100 is an essential accessory for professionals seeking robust and efficient power solutions for their TP-Link TL-MC series media converters in enterprise networking environments.
| Warranty | Limited 3 years |
| Compatibility | TL-MC1400 14-slot chassis |
| Dimensions (WxDxH) | 210 x 130 x 70 mm |
| Cooling | Single internal fan |
| Form Factor | Module |
| Power Supply Type | Redundant |
| Dimensions (mm) | 193.4 \u00d7 162.3 \u00d7 42.2 |
| Mounting Type | Rackmount |
| dimensions_h_w_d_mm | 42.2 \u00d7 193.4 \u00d7 162.3 mm |
| Storage Humidity | 10%-95% RH non-condensing |
| Operating Temp | 0\u00b0C to 60\u00b0C |
| Storage Temp. | -35\u00b0C to 85\u00b0C |
| dimensions_wx_dx_h_mm | 193.4 \u00d7 162.3 \u00d7 42.2 |
| Input Voltage | 100-240V AC,50/60Hz |
| storage_humidity_percent | 10%\u201395% RH non-condensing |
| output_current_a | 8.5-9.5 |
| output_voltage_v | 12 |
| input_voltage_v | 100-240V~50\/60Hz |
| operating_temp_c | 0\u00b0C to 60\u00b0C |
| input_voltage_vac | 100-240V |
| Operating Humidity | 20%-90% RH non-condensing |
| operating_humidity_percent | 20%\u201390% RH non-condensing |
| storage_temp_c | -35\u00b0C to 85\u00b0C |
| Relative Humidity (Storage) | 10-95% |
| Relative Humidity (Operating) | 20-90% |
| operating_humidity_pct | 20 |
| Input Current | 3A |
| Output Voltage | 9.5V DC (confirm model version) |
| Output Current | 9.5A |
| input_current_a | 3 |
| input_current_amperes | 3 |
| output_voltage_vac | 12V DC |
| Output Power | Up to 102 watts |
| Protection Features | Over-voltage,short circuit,over-current |
| operating_temperature_c | 0\u00b0C to 60\u00b0C |
| storage_temperature_c | -35\u00b0C to 85\u00b0C |
| rated_power_output_w | 102 |
| wattage_w | 102 |
| Capacity Watts | 102 |
| Capacity VA | 114 |
| SKU | MCRP100 |
| Model Number | MCRP100 |
| Part Number | TL-MCRP100 |
| Manufacturer | TP-Link |
