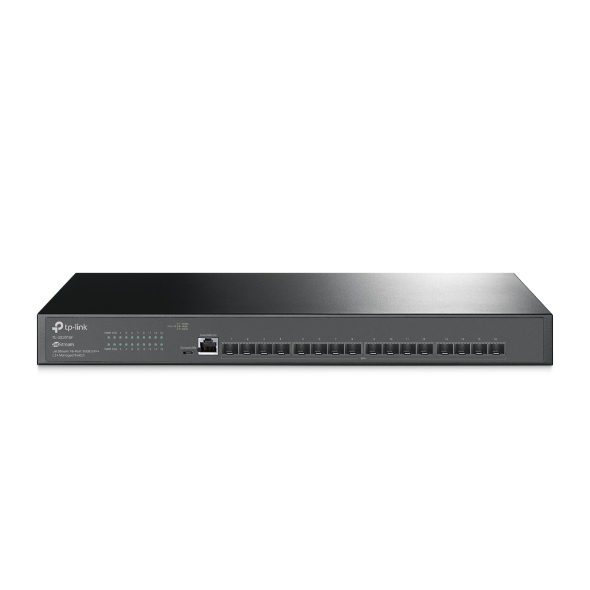

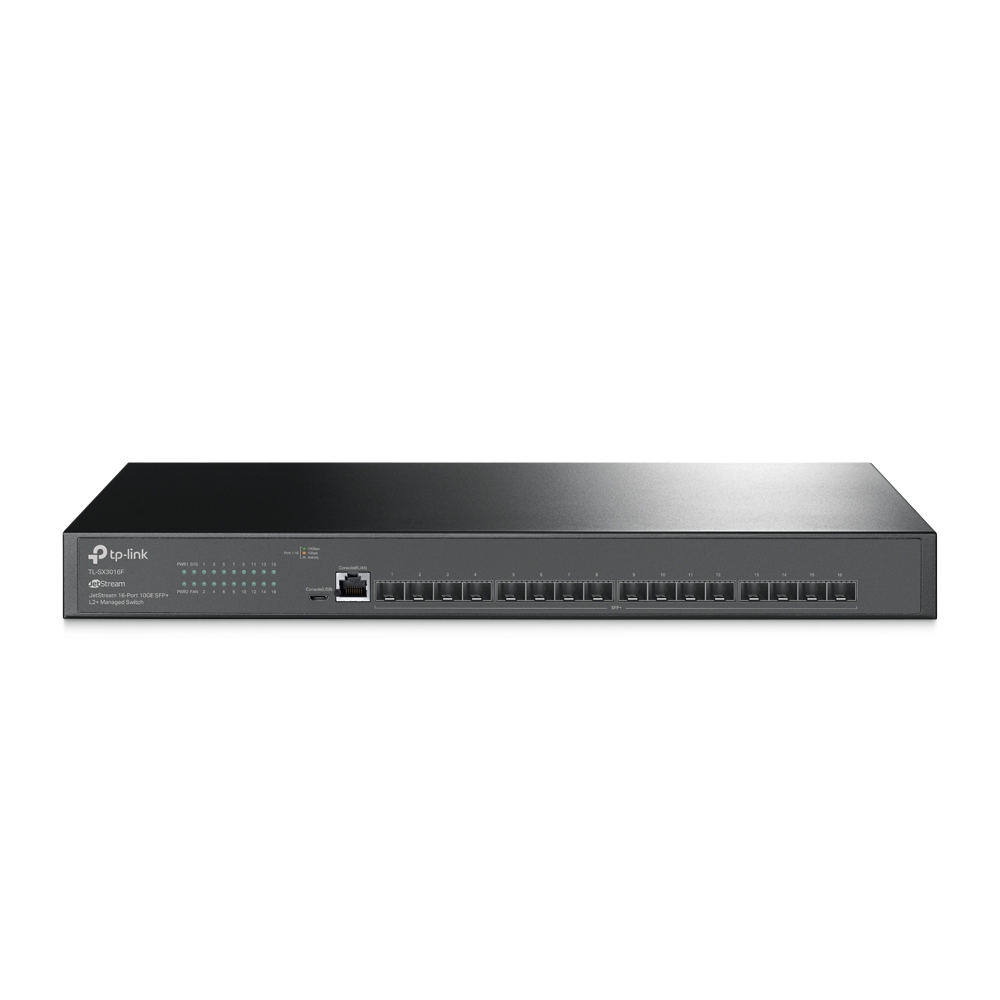

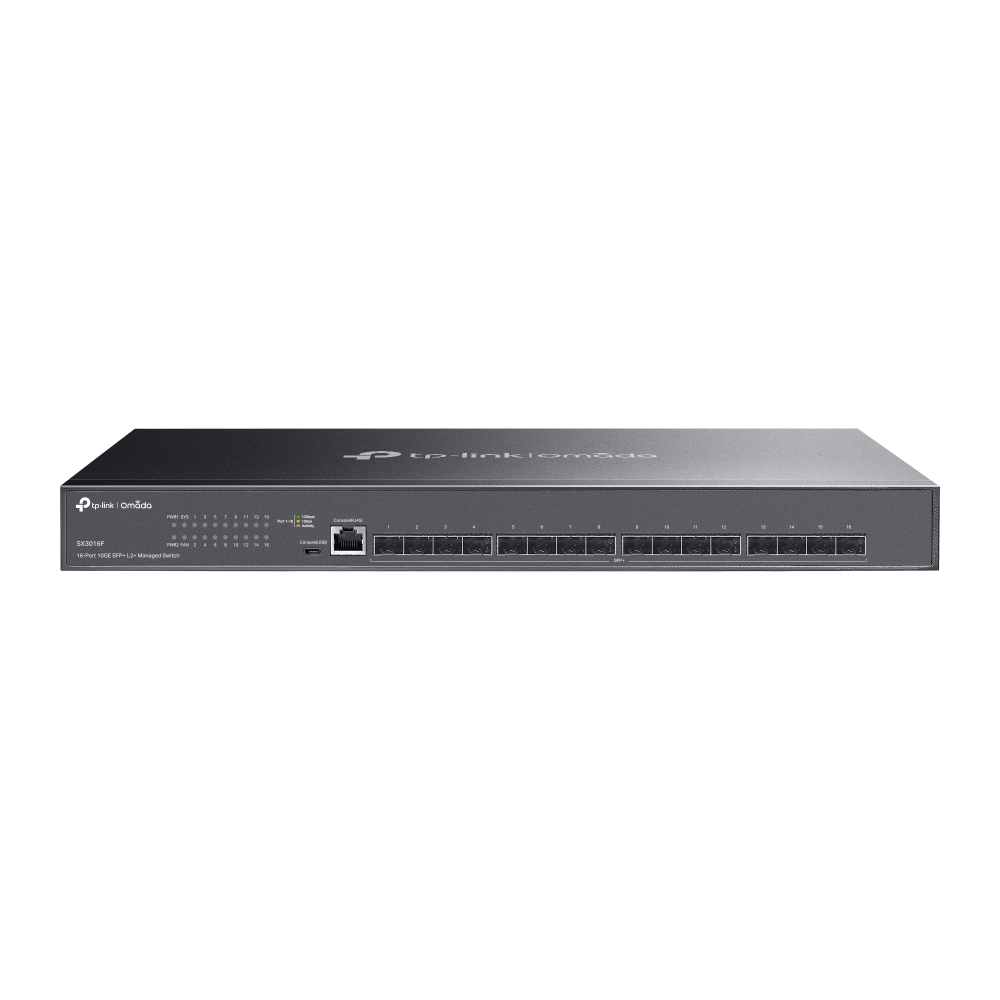

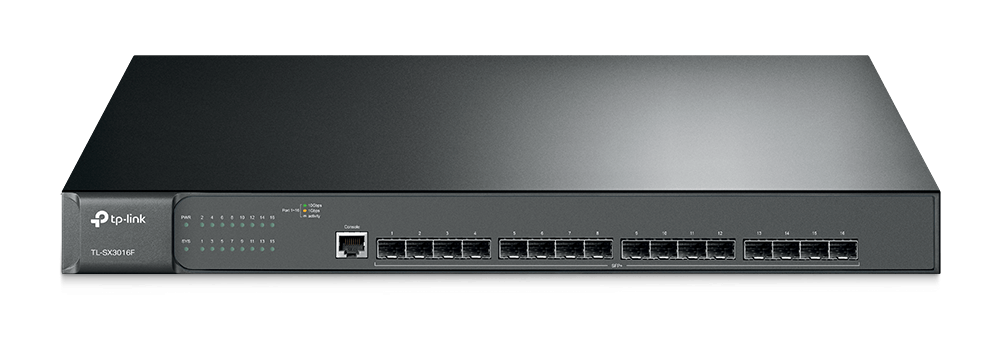

The TP-Link SX3016F JetStream is a high-performance L2+ managed switch designed for business networks requiring ultra-fast, reliable connectivity. Featuring 16 full 10 Gbps SFP+ fiber slots, it delivers up to 320 Gbps non-blocking switching capacity and a forwarding rate of 238.08 Mpps, ideal for aggregating server and switch connections in enterprise environments.

This switch supports centralized cloud management through the Omada SDN platform, enabling hybrid cloud access and remote network administration alongside traditional Web GUI, CLI, SNMP, and RMON options. Zero-touch provisioning simplifies large deployments, while Dual Image firmware support enhances update reliability.

Robust Layer 2 and Layer 2+ features include static routing, 802.1Q VLANs, STP/RSTP/MSTP protocols, Link Aggregation (LACP), 802.3x flow control, and IGMP Snooping with filtering/throttling for optimized multicast traffic.

Enterprise-grade QoS offers 8 priority queues with 802.1p/DSCP tagging, and various scheduling algorithms, ensuring traffic efficiency. Security is comprehensive, with IP-MAC-Port-VID binding, ACLs (L2–L4), port security, DHCP snooping, storm control, and 802.1X authentication.

The durable metal chassis supports rack mounting and provides operation up to 45 °C. A fanless design guarantees silent operation, perfect for noise-sensitive environments. Dual redundant power supply support maximizes uptime and reliability.

Additional hardware specs include a 32K MAC address table, 24 Mbit packet buffer, jumbo frames up to 9 KB, and multiple console ports (RJ45 and Micro-USB). Power consumption is efficient at around 32.74 W (max). Overall, the SX3016F embodies a powerful, secure, and manageable switch solution for demanding network infrastructures.
