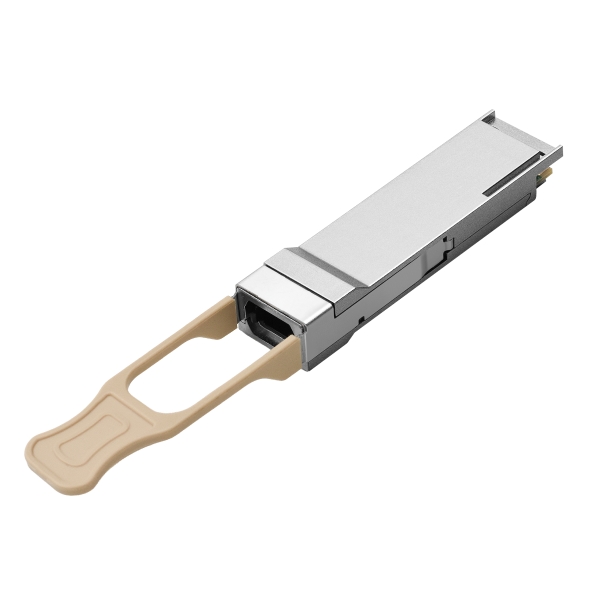

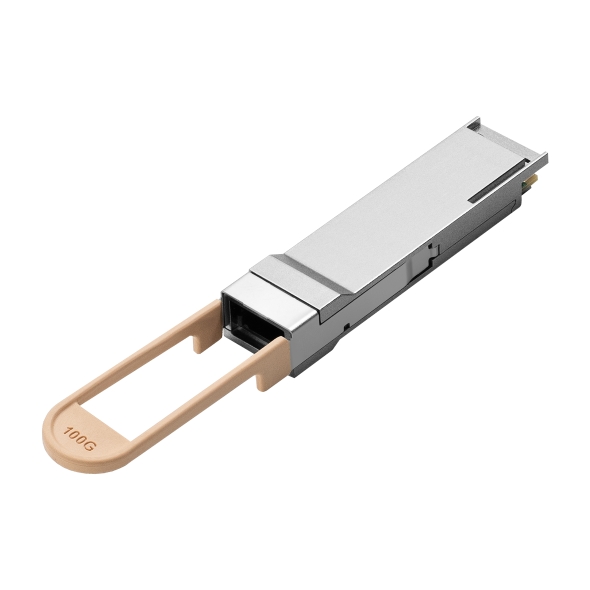

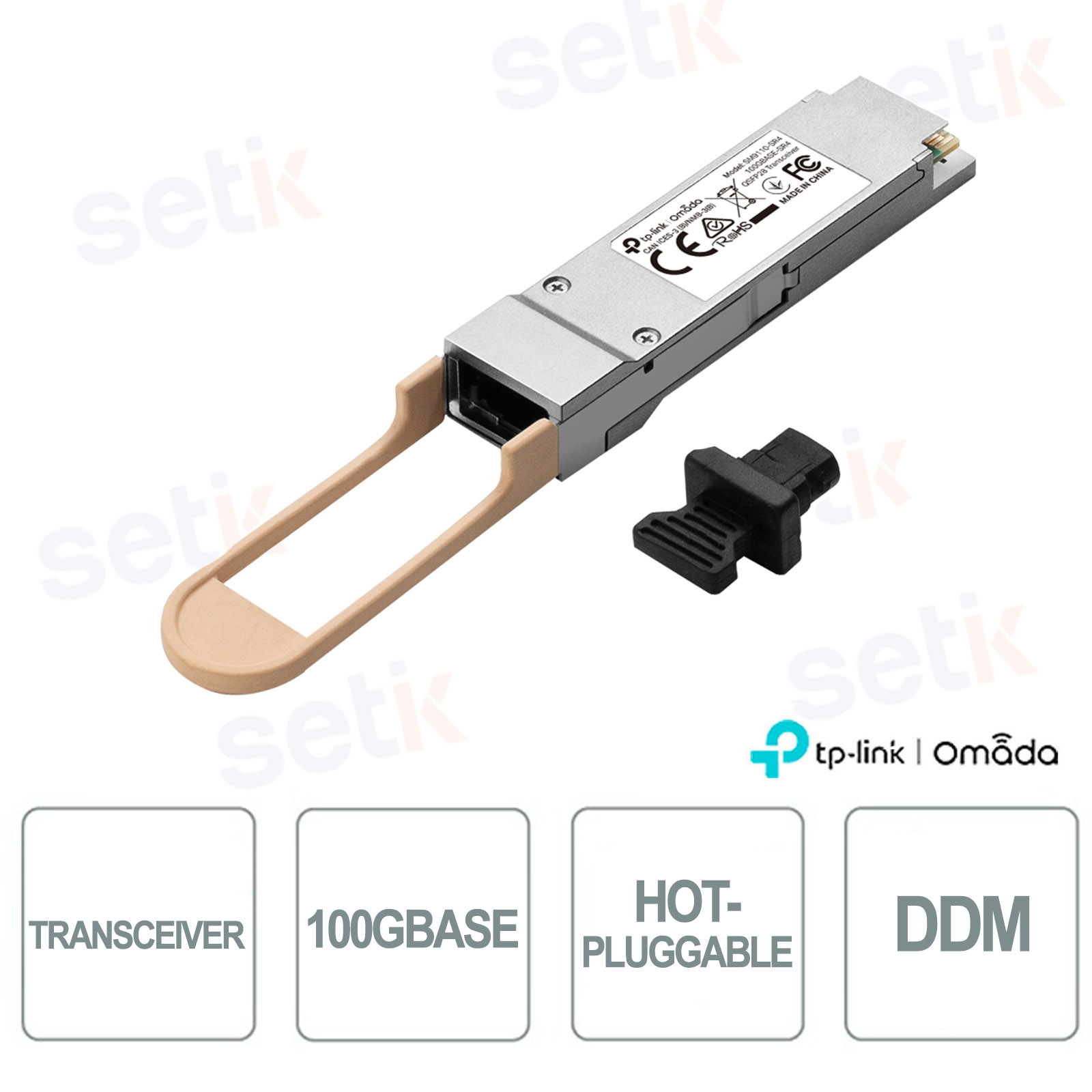

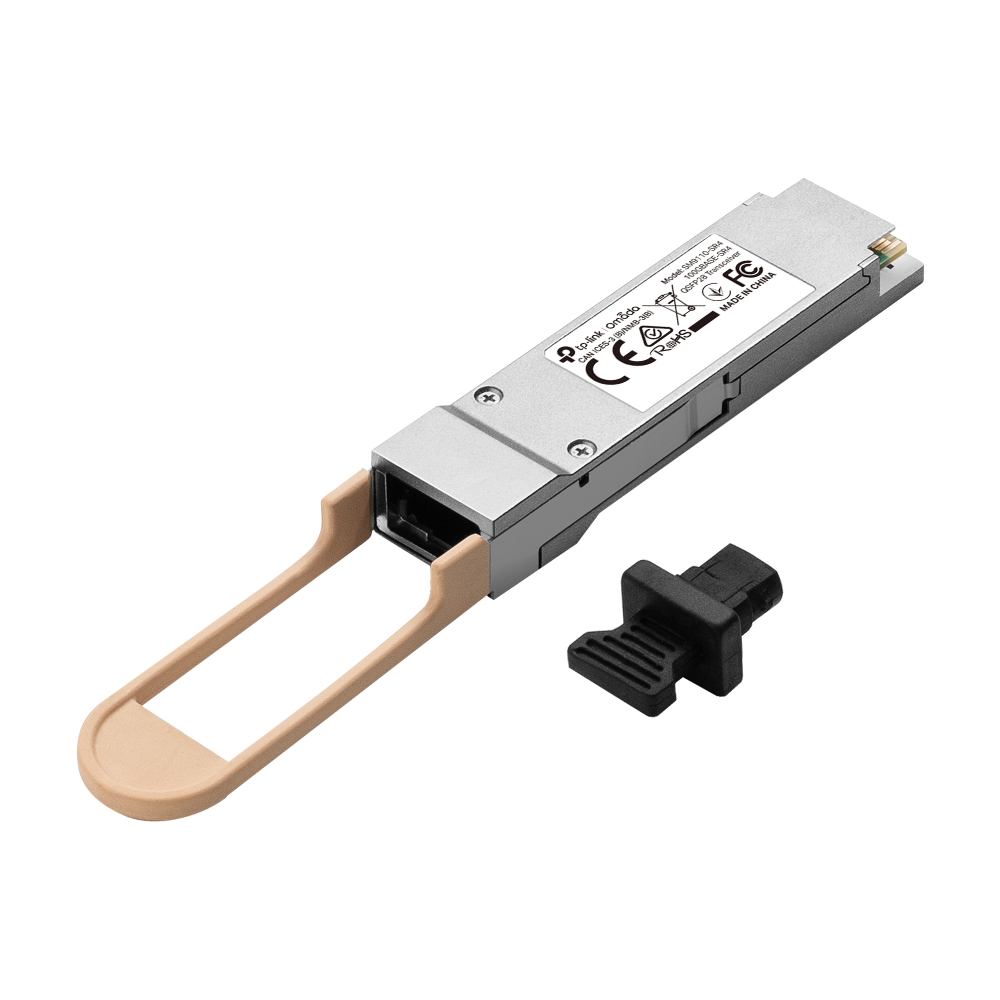

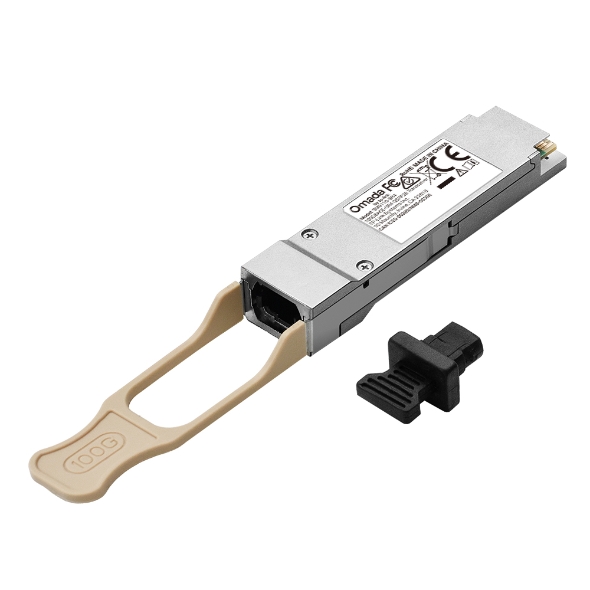

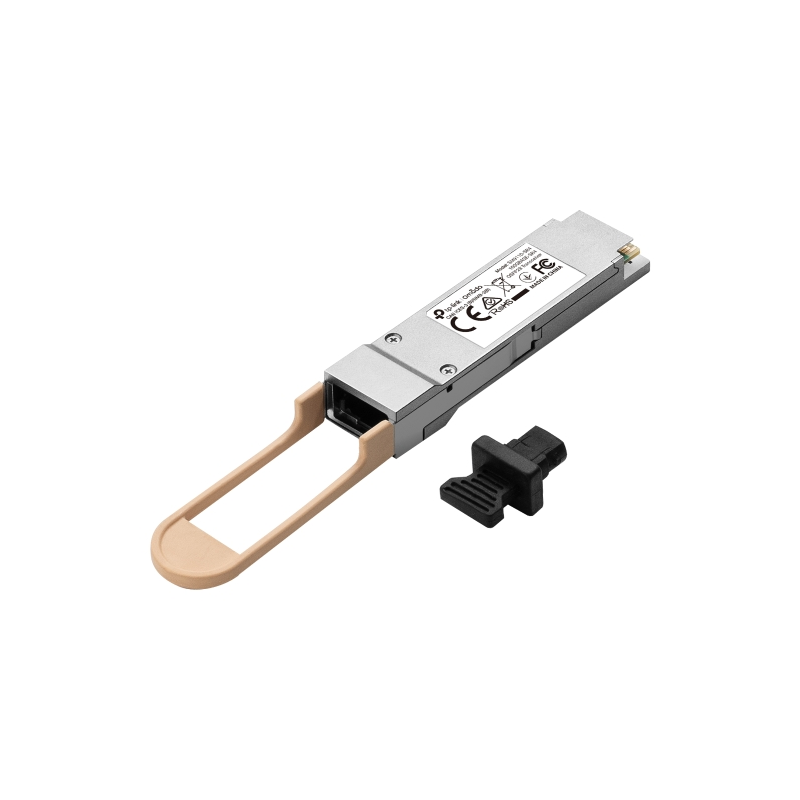

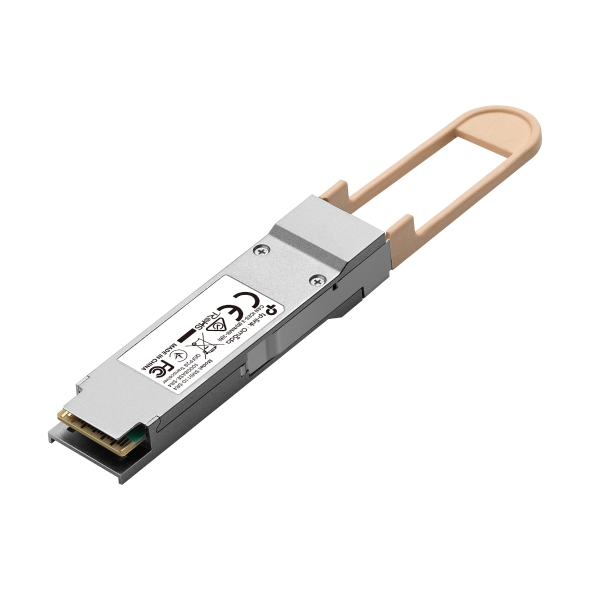

The TP-Link SM9110-SR4 Omada 100GBASE-SR4 QSFP28 Transceiver is a high-performance multimode fiber module designed for ultra-fast Ethernet networking. Operating at an 850 nm wavelength, this transceiver supports dual data rates of 103.125 Gbps and 41.2 Gbps, providing enhanced compatibility with both 100G and 40G networks. It is engineered for up to 100 meters transmission over OM4 multimode fiber, making it ideal for data centers and enterprise environments requiring high bandwidth and reliable connections.

Key features include Digital Diagnostic Monitoring (DDM) for real-time optical performance monitoring, a hot-pluggable QSFP28 form factor for convenient installation, and compliance with industry standards such as IEEE 802.3bm/802.3ba and QSFP28 MSA. The module utilizes an MTP/MPO-12 connector and supports 50/125 µm multimode fiber for flexible deployment.

This transceiver operates efficiently with low power consumption (max 1.8 W at 100 Gbps, max 1.54 W at 40 Gbps) and is built to withstand a wide temperature range from 0°C to 70°C. Its compact design ensures seamless integration into existing network infrastructures, delivering consistent high-speed data transmission with robust diagnostics and easy maintenance.
