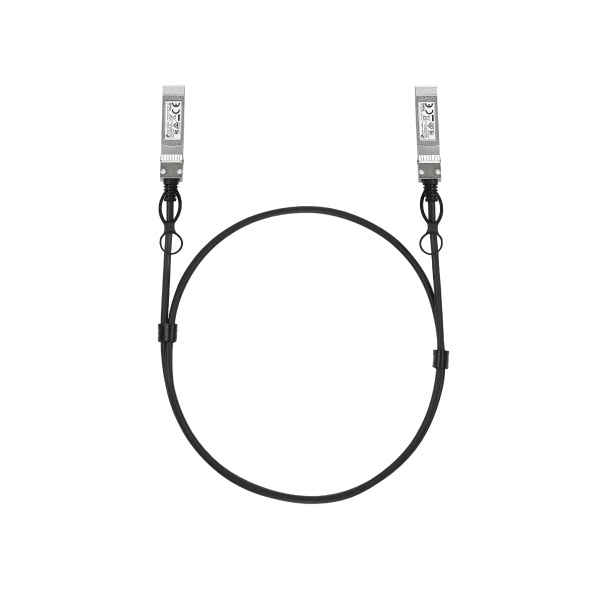

The TP-Link SM6220-1M Omada 1 Meter 25G SFP28 Direct Attach Cable is a high-performance passive twin-ax cable designed for ultra-fast, short-range networking. Featuring SFP28 connectors on both ends, this cable supports blazing data transfer rates of up to 25 Gbps, with backward compatibility for 10 Gbps and 1 Gbps speeds.

Engineered for reliable rack-to-rack or adjacent-rack connections within data centers and enterprise networks, the 1-meter length ensures low latency and optimal signal integrity. Constructed with silver-plated copper conductors and 30 AWG wire gauge, it provides excellent electrical performance and durability. The cable's design includes a minimum bend radius of 22.5 mm, maintaining stability in tight routing environments.

Its compact connectors measure approximately 57.5 × 13.55 × 8.55 mm, making it suitable for dense networking setups. The cable operates efficiently in a wide range of environmental conditions, tolerating temperatures between 0 to 70 °C and humidity levels of 10–90% RH (non-condensing). It can be safely stored in harsher conditions ranging from -40 to 85 °C and 5–90% RH.

This direct attach cable is an excellent cost-effective solution for environments requiring high bandwidth and short-distance connectivity, enabling seamless integration in multi-rate network infrastructures without compromising speed or reliability.
