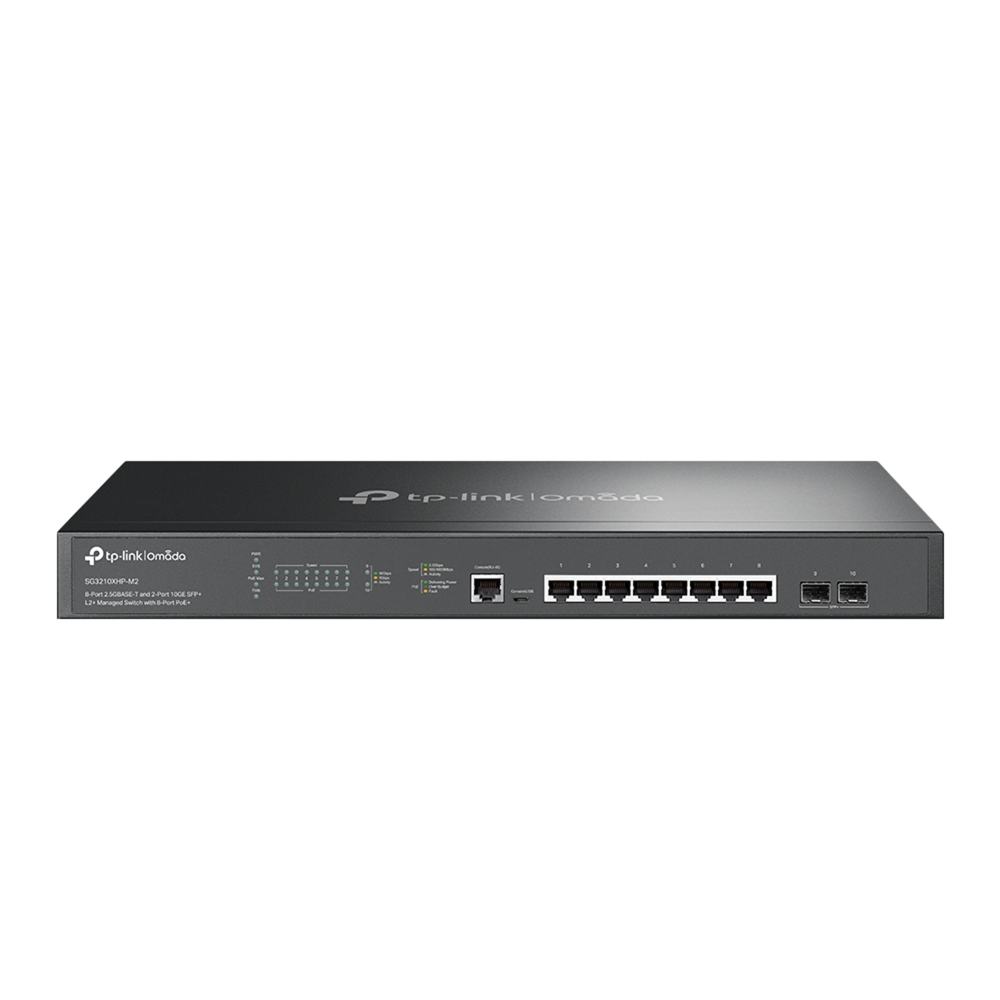

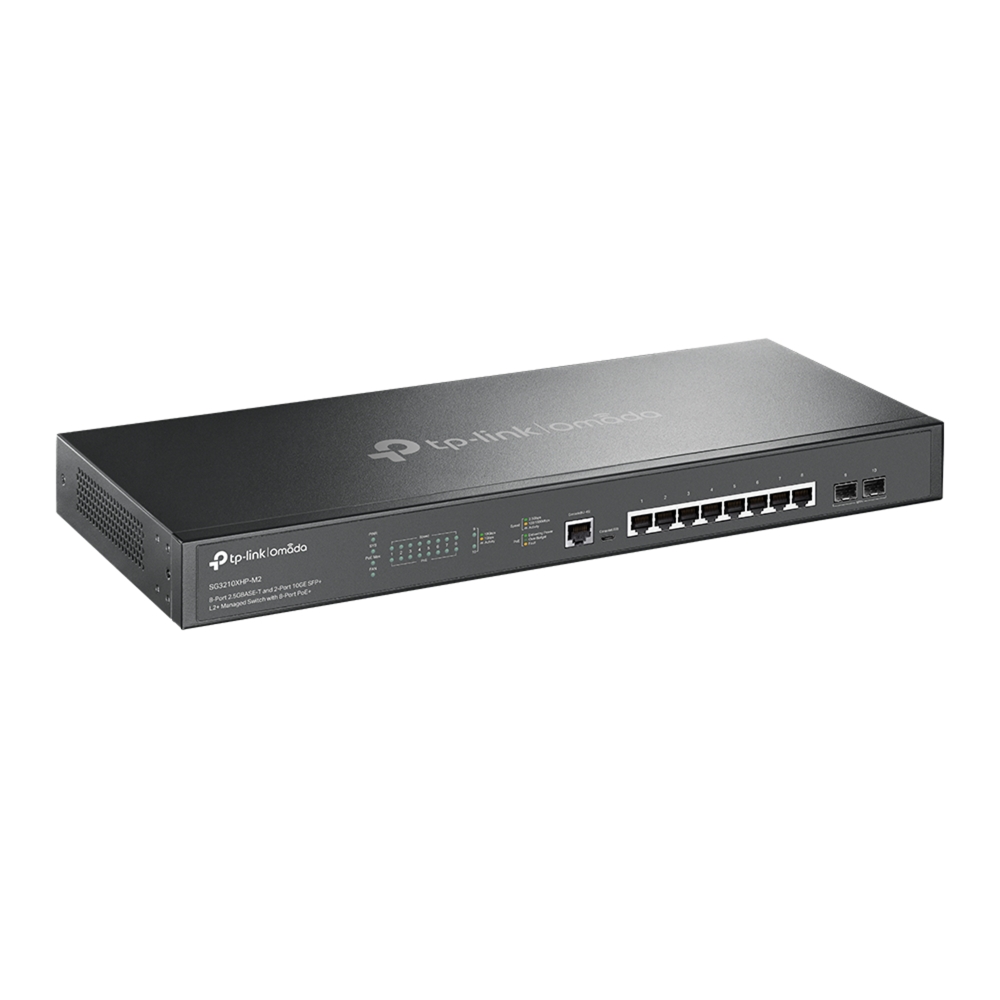

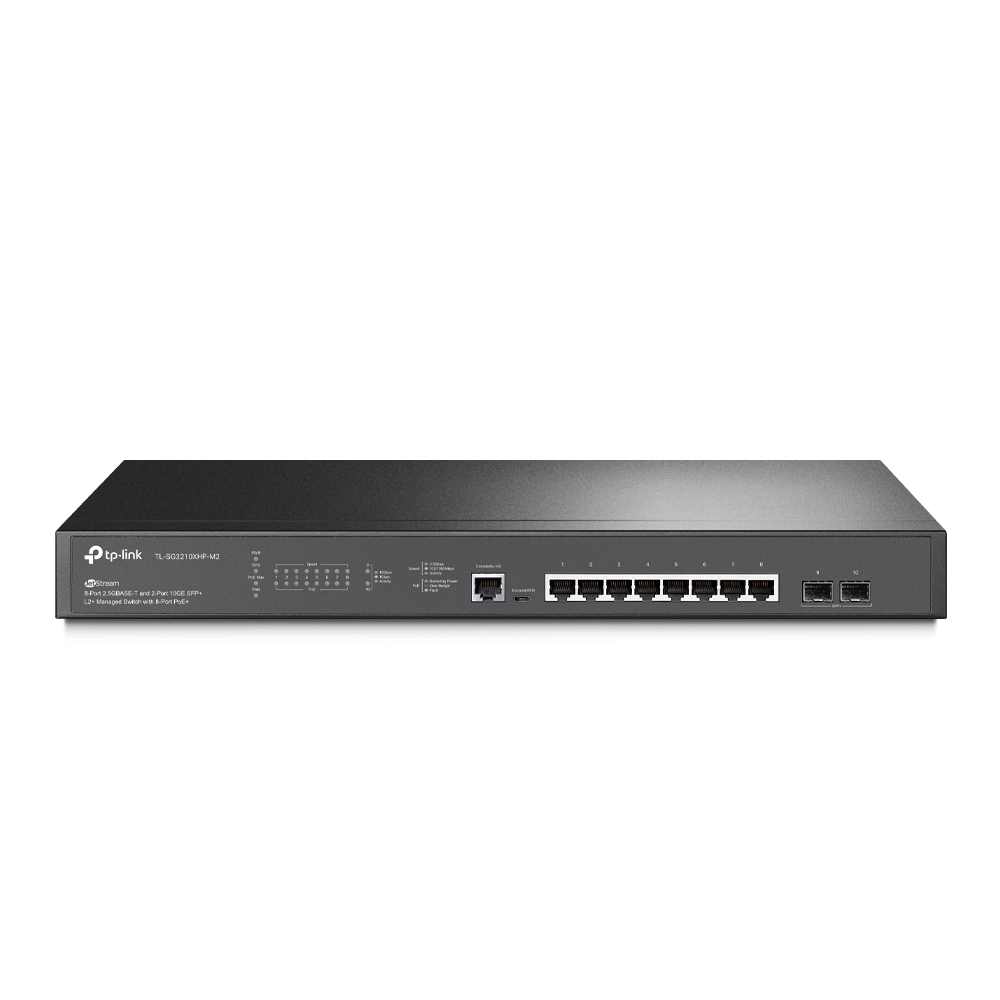

TP-Link SG3210XHP-M2 JetStream 8-Port 2.5G PoE+ & 2-Port 10G SFP+ L2+ Managed Switch with 240W PoE Budget, Omada Cloud Management
โ˜… 0.0 Rating (0 user feedback)

SKU: sg3210xhp-m2

Availability: Out of Stock

Brand: TP-Link

Category: Switches

$699.73


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

TP-Link SG3210XHP-M2 JetStream Managed Switch offers robust networking for business environments with high-speed connectivity and advanced management features.

  • 8ร— 2.5GBASE-T RJ45 Ports with PoE+ Support: Each port supports 100/1000/2500 Mbps and 802.3at/af PoE+ standards, ideal for powering WiFi 6 access points, IP cameras, and VoIP phones, with a total PoE budget of 240 W.
  • 2ร— 10G SFP+ Uplink Slots: Designed for lightning-fast uplinks, these slots enable high-bandwidth, non-blocking switching capacity at 10 Gbps.
  • Powerful Switching Performance: With 80 Gbps switching capacity and packet forwarding rate of 59.52 Mpps, this switch handles demanding network traffic efficiently.
  • Advanced L2+ and L3-lite Features: Includes VLAN (802.1Q), static routing, link aggregation (LACP), spanning tree protocols (STP/RSTP/MSTP), and quality of service (QoS) for optimized network performance and voice/video applications.
  • Comprehensive Security: Implements IP-MAC-Port binding, ACLs, port security, DoS defense, DHCP snooping, 802.1X authentication, and RADIUS to safeguard network integrity.
  • Optimized Multicast Handling: Supports IGMP v1/v2/v3, MLD snooping, and multicast VLAN registration (MVR) for efficient streaming and conferencing.
  • Omada SDN Integration: Provides centralized cloud management with zero-touch provisioning (ZTP), multi-site management, and real-time monitoring via Omada App or web interfaces.
  • Rack-Mountable 1U Design: Durable metal chassis with dual internal fans ensures reliable operation, dimensions 440 ร— 180 ร— 44 mm.
This switch is perfect for enterprises requiring a reliable, high-speed, and centrally managed networking solution ready for modern digital demands.

Physical

Dimensions440\u00d7180\u00d744 mm (W\u00d7D\u00d7H)
Dimensions (mm)440 x 180 x 44 mm
Rack Mount CompatibilityRack Mountable (1U)
Cooling2 internal fans
Form FactorRack Mountable (1U)
Ports8ร— 2.5GBASE-T RJ45,2ร— 10G SFP+

General

Rack Mount1U standard rack-mountable
Fan Quantity2 internal fans
QoSL2\/L3\/L4 QoS & IGMP\/MLD snooping
Buffer Memory12 Mbit packet buffer
Packet Forwarding59.52 Million packets per second
ManagementOmada cloud,web GUI,CLI,SNMP
PoE Budget240 Watts total power supply

Power

Power Input100โ€“240 V AC,50/60 Hz
total_poe_power_budget_w240
PoE Standard802.3at\/af PoE+ on all 8 ports
PoE Standard802.3at\/af PoE+
Power Input100-240 V AC,50/60 Hz

Technical

MAC Address Table Size16,000 entries
Jumbo Frame SupportUp to 9 KB
Jumbo Frame Support9216
ports_10g2
mac_table_size16384
Layer SupportL2\/L3\/L4
standards_protocolsIEEE 802.3at/af,802.1X,IGMP,MLD,MVR

Performance

switching_capacity_gbps80
Switching Capacity80 Gbps
forwarding_rate_mpps59.52

Security

Security FeaturesIP-MAC-Port binding,ACL,DoS defense

Compliance

CertificationsCE,FCC,RoHS

Identifiers

SKUSG3210XHP-M2

Environment

operating_temperature_c0-50
