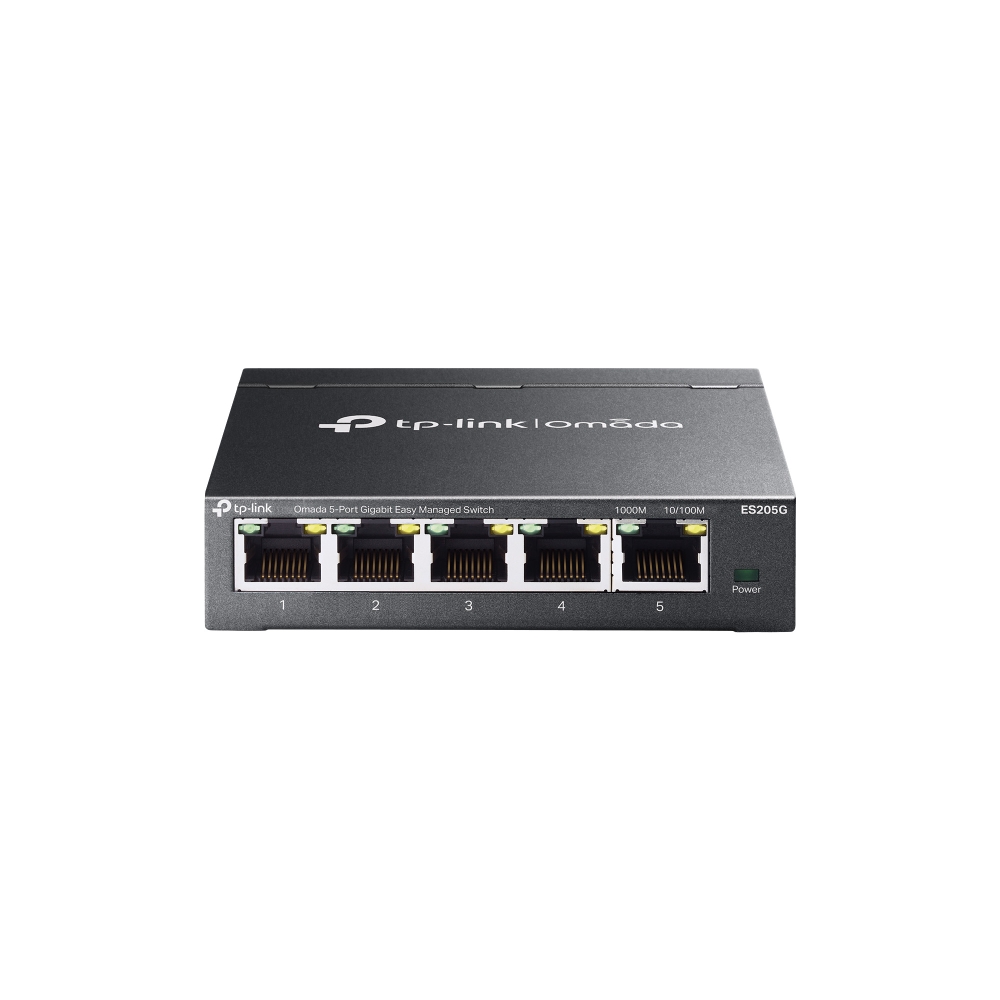

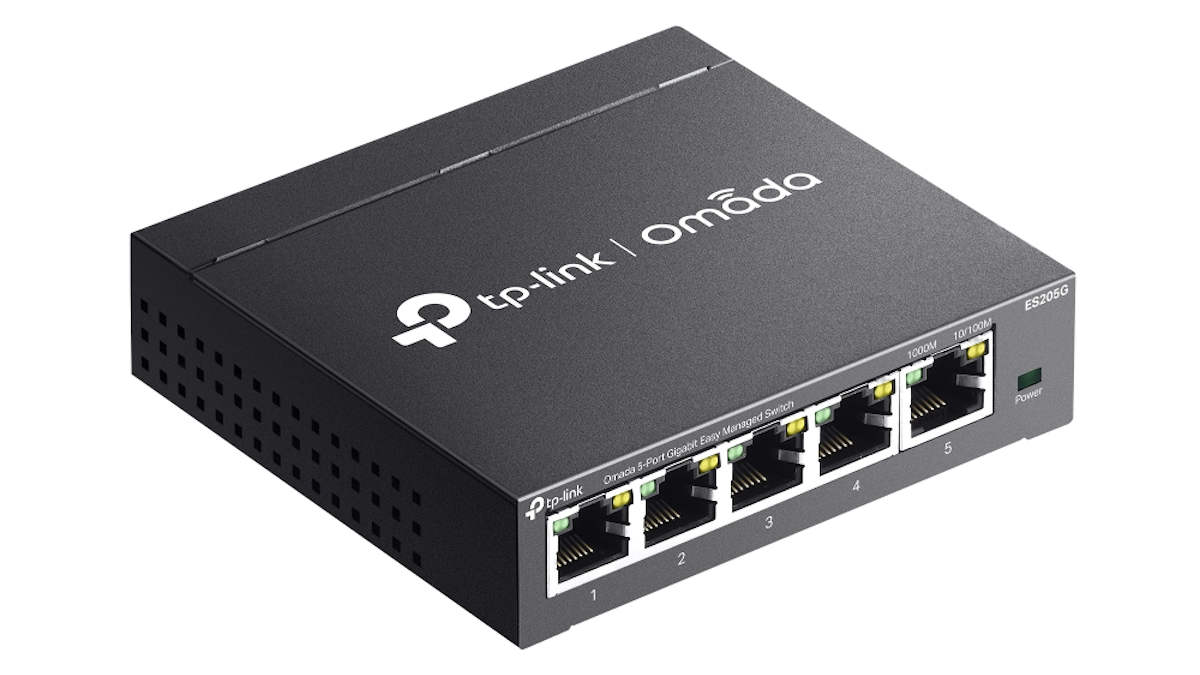

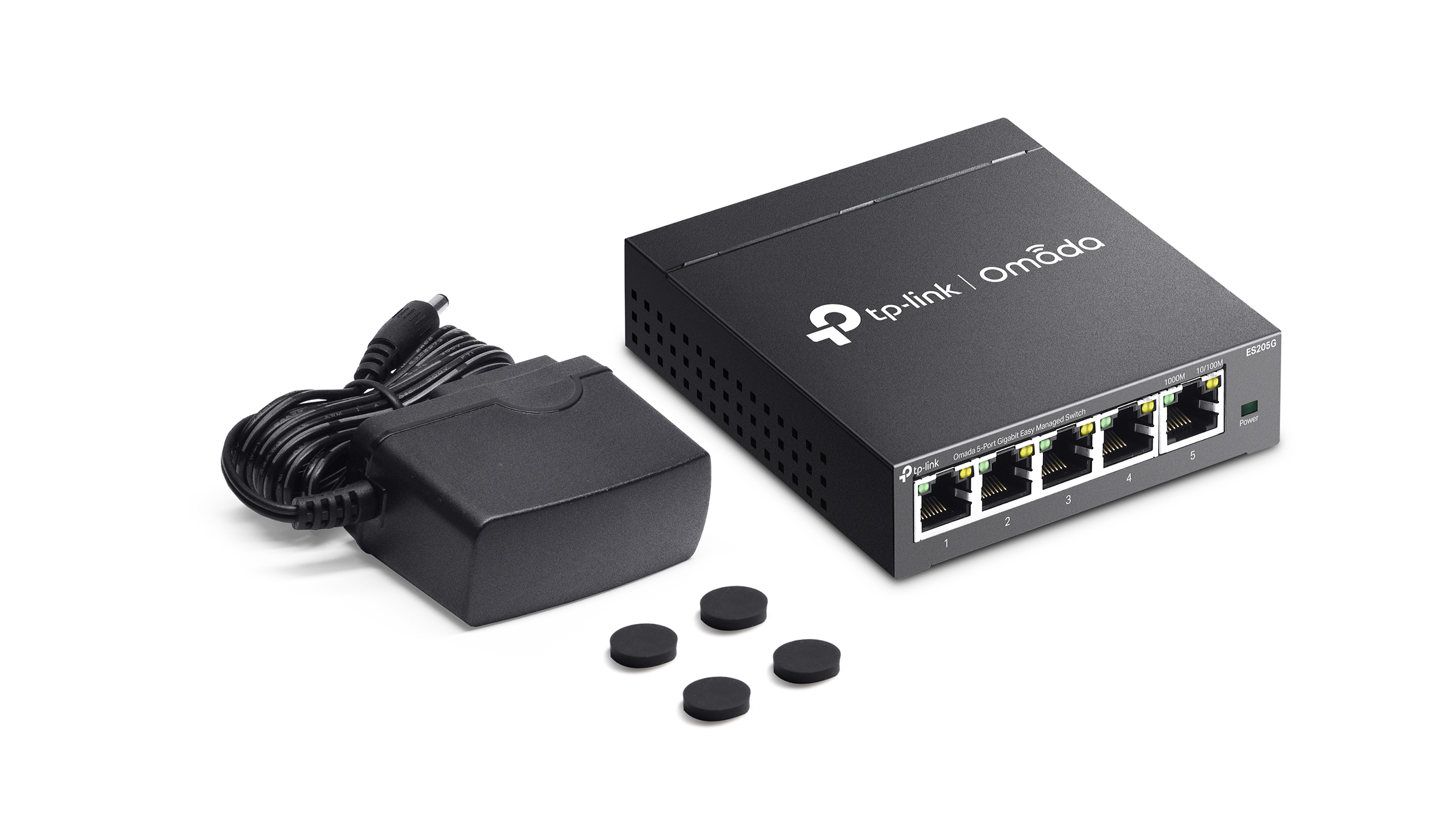

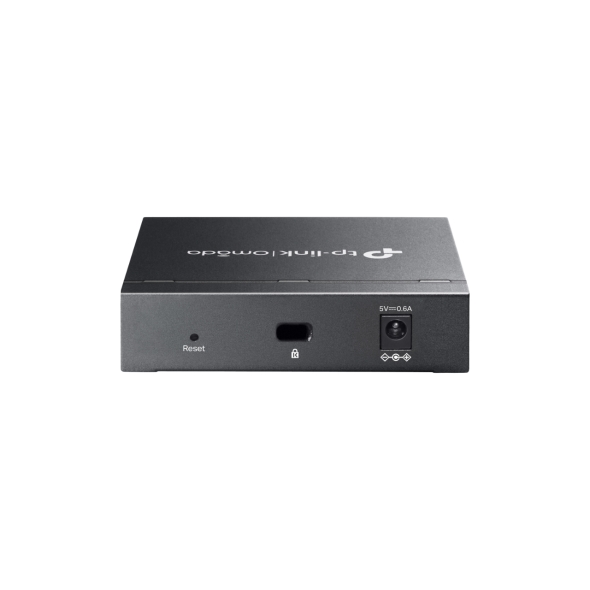

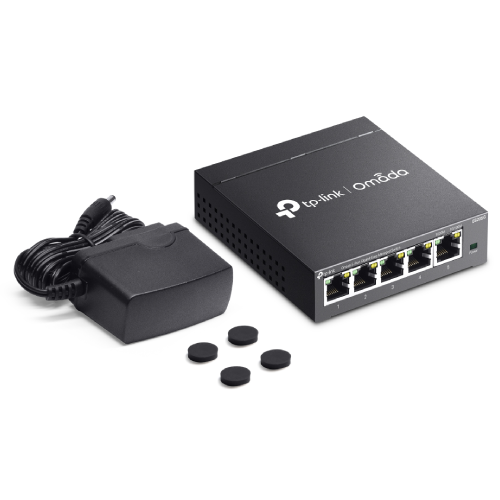

The TP-Link ES205G Omada is a compact, fanless 5-port Gigabit Ethernet switch designed for seamless network expansion and easy management through the Omada SDN platform. Featuring five 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, it supports plug-and-play for instant connectivity along with advanced Layer 2 features for robust performance. The switch excels in centralized cloud-based management via web GUI, Omada app, or hardware/software controllers, enabling zero-touch provisioning and batch configuration.

This switch incorporates key network enhancements such as VLAN (max 32 groups), IGMP Snooping (v1/v2/v3) with fast leave for optimized multicast traffic, and loop prevention to ensure network stability. Quality of Service (QoS) support with 8 priority queues and bandwidth control guarantees smooth handling of critical applications. Its metal casing and fanless design provide silent operation and durable installation options including desktop or wall mounting.

Performance highlights include a switching capacity of 10 Gbps, packet forwarding rate of 7.4 million packets per second, an 8K MAC address table, and support for jumbo frames up to 15 KB. Additional features such as static link aggregation, port mirroring, cable diagnostics, and 802.3x flow control make the ES205G an ideal choice for reliable, scalable small office or home office networks.
