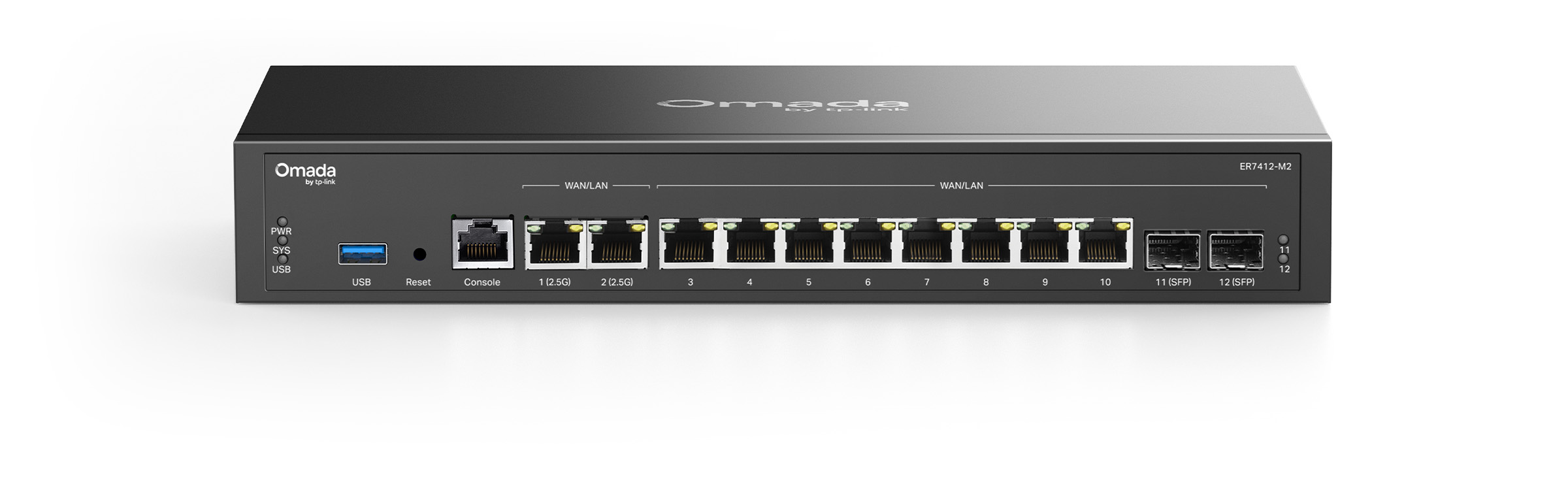

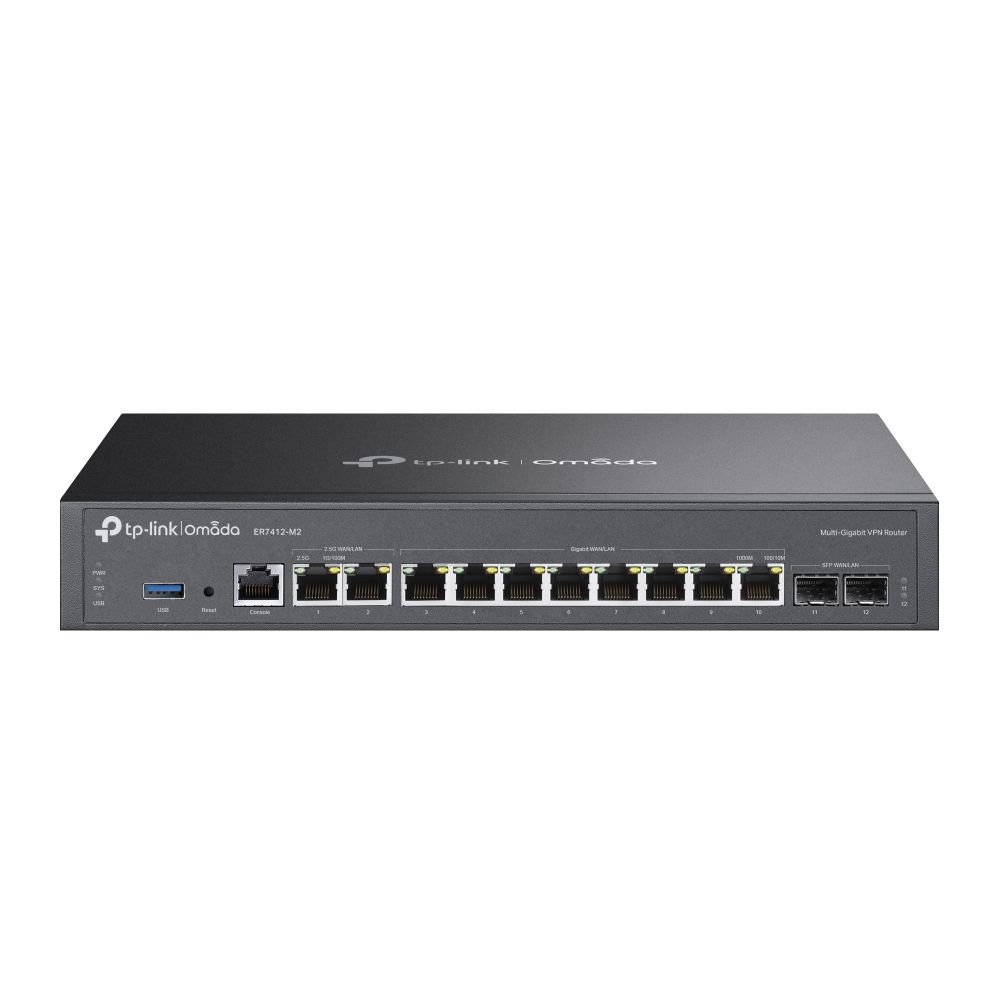

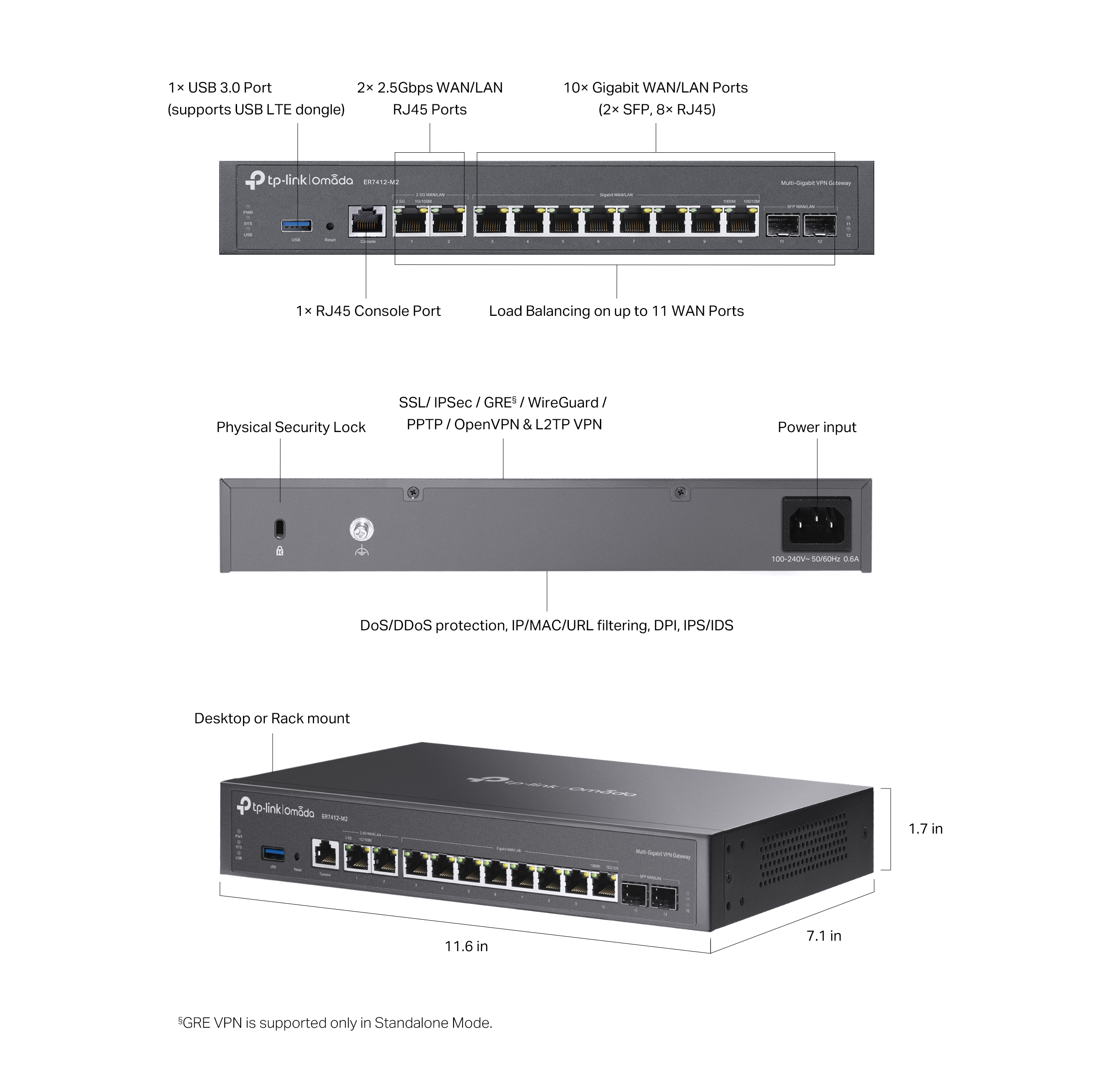

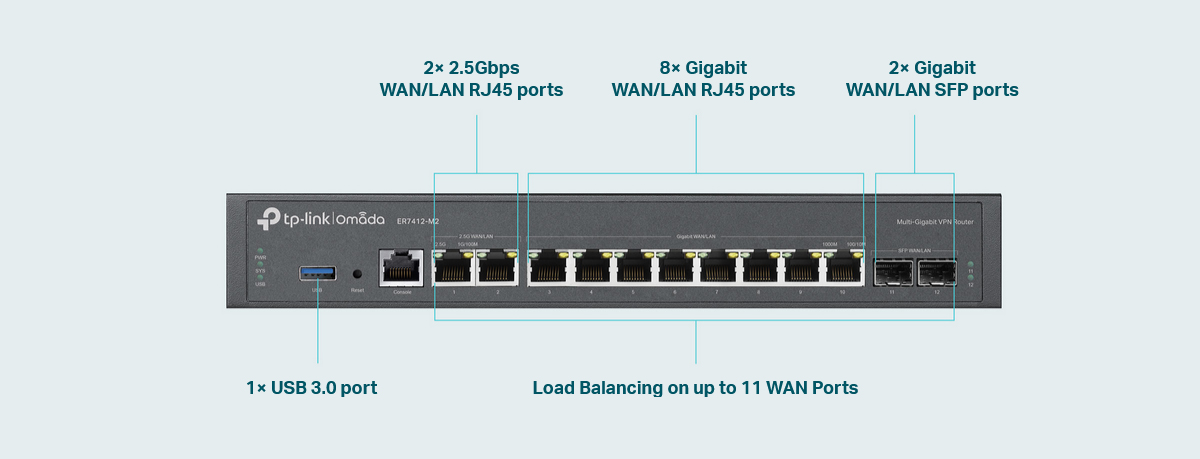

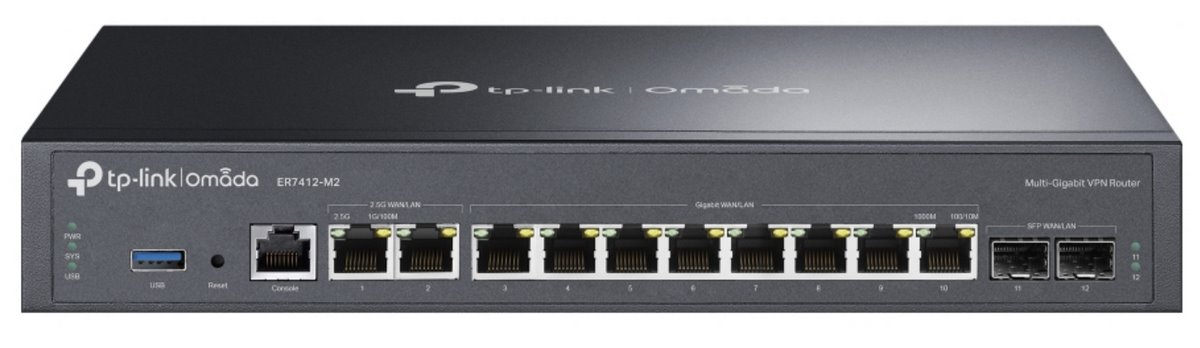

The TP-Link ER7412-M2 Omada Multi-Gigabit VPN Router is a high-performance network gateway designed for SMBs and distributed environments requiring robust multi-gigabit uplinks and advanced VPN/security capabilities. Powered by a quad-core ARMv8 CPU running at 2.0 GHz, it delivers superior routing efficiency and reliability. The router features 2 x 2.5 Gbps RJ45 ports and a total of 10 Gigabit WAN/LAN ports, including 2 SFP slots, enabling flexible and high-speed connectivity options.
Equipped with a USB 3.0 port, the device supports USB storage and LTE dongle backup, ensuring continuous internet access via multi-WAN load balancing with up to 11 WAN ports, including support for USB WAN. This optimizes broadband utilization and network resilience.
Security is paramount with comprehensive VPN support including IPSec, SSL, GRE, WireGuard, PPTP, L2TP, and OpenVPN protocols. The router further enhances protections through DPI, IPS/IDS, DoS/DDoS mitigation, IP/MAC/URL filtering, and ACL configurations.
Centralized management is made simple through TP-Link's Omada Cloud Controller, Software Controller, or Hardware Controller, supporting zero-touch provisioning and multi-site device management. Alternatively, standalone management is available via web GUI, CLI, SNMP, and RMON.
Additional features include advanced Layer 3 routing (static/policy routing, RIP, OSPF), VLAN 802.1Q, QoS, DHCP, IPv6 support, port mirroring, and application-optimized routing.
Offering a durable build with rack-mount and desktop placement support, 128 MB NAND flash, 1 GB DDR4 memory, and surge protection, the ER7412-M2 is a reliable solution for secure, flexible, and scalable business networking needs.
Warranty: 5 years
For detailed specifications and support, visit the [official TP-Link product page](https://www.tp-link.com/au/business-networking/omada-router-wired-router/er7412-m2/v1.2/).
| Form Factor | Rack-mountable \/ Desktop |
| eni_conversion | 5 Years |
| Warranty | 5 Years |
| Routing Features | Layer 3 routing,static/policy routing,RIP,OSPF |
| Network Features | VLAN 802.1Q,QoS,NAT,DHCP,IPv6,Port Mirroring |
| Management | Omada Cloud,Software & Hardware Controllers,Web GUI,CLI,SNMP,RMON |
| CPU Clock Speed | 2.0 GHz |
| Total WAN Ports Supported | Up to 11 (including USB WAN) |
| VPN Protocols Supported | IPSec,SSL,GRE,WireGuard,OpenVPN,PPTP,L2TP |
| Power Consumption | Max 18.5 W (with USB 3.0 connected) |
| Power Consumption (W) | 18 |
| Operating Temperature | 0\u201345 \u00b0C |
| Surge Protection | 4 kV |
| Security Features | DPI,IPS/IDS,DoS/DDoS Protection,IP/MAC/URL Filtering,ACL |
| WAN/LAN Ports | 2.5 Gbps RJ45,8 x Gigabit RJ45,Gigabit SFP |
| interfaces | RJ45,SFP,USB 3.0 |
| wan_lan_ports | 2.5 Gbps RJ45,8 x Gigabit RJ45,Gigabit SFP |
| Ethernet Ports | 2.5 Gbps RJ45,8 x Gigabit RJ45,Gigabit SFP |
| USB Ports | 1 x USB 3.0 (supports USB storage and LTE dongle backup) |
| Processor | Quad-core ARMv8 CPU |
| Management Interface | Omada Cloud,Software & Hardware Controllers,Web GUI,CLI,SNMP,RMON |
| backhaul_type | Wired |
| Storage | 128 MB NAND flash |
| Memory | 1 GB DDR4 |
| processor_info | Quad-core ARMv8 CPU,2.0 GHz |
| Product Type | VPN Router |
| Model Number | ER7412-M2 |
