SKU: eap235-wall
Availability: Out of Stock
Brand: TP-Link
Category: Access Points
100% Guarantee Safe Checkout

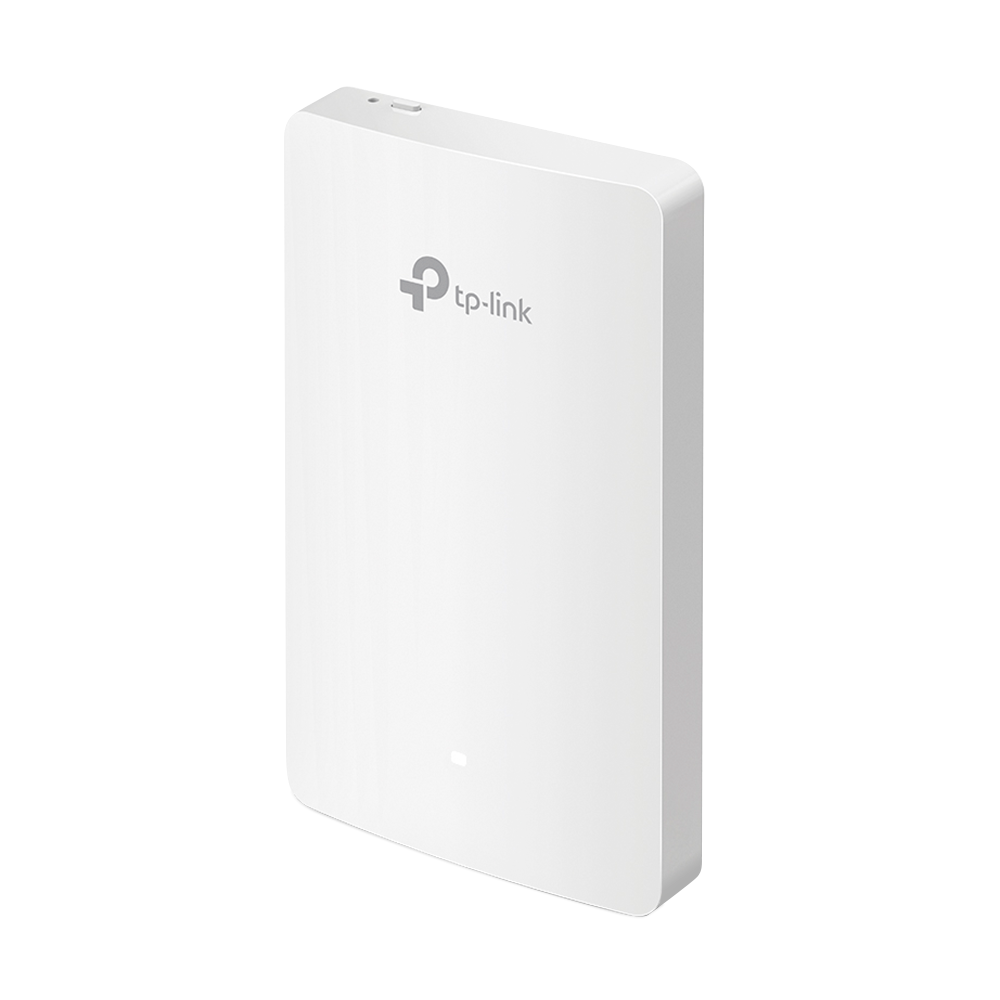

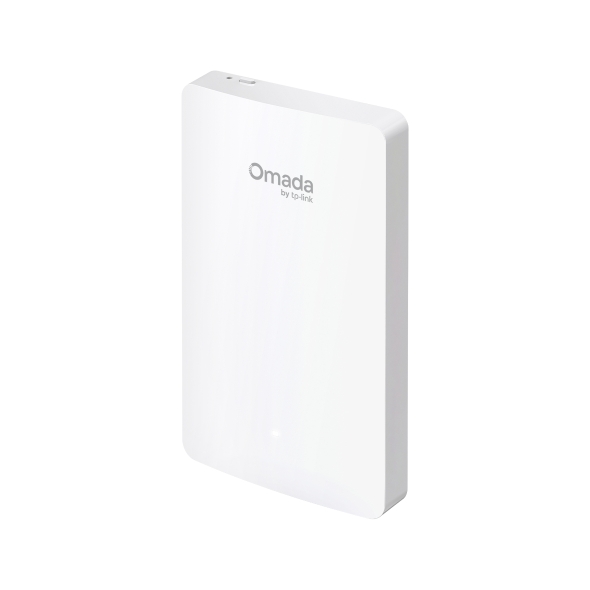

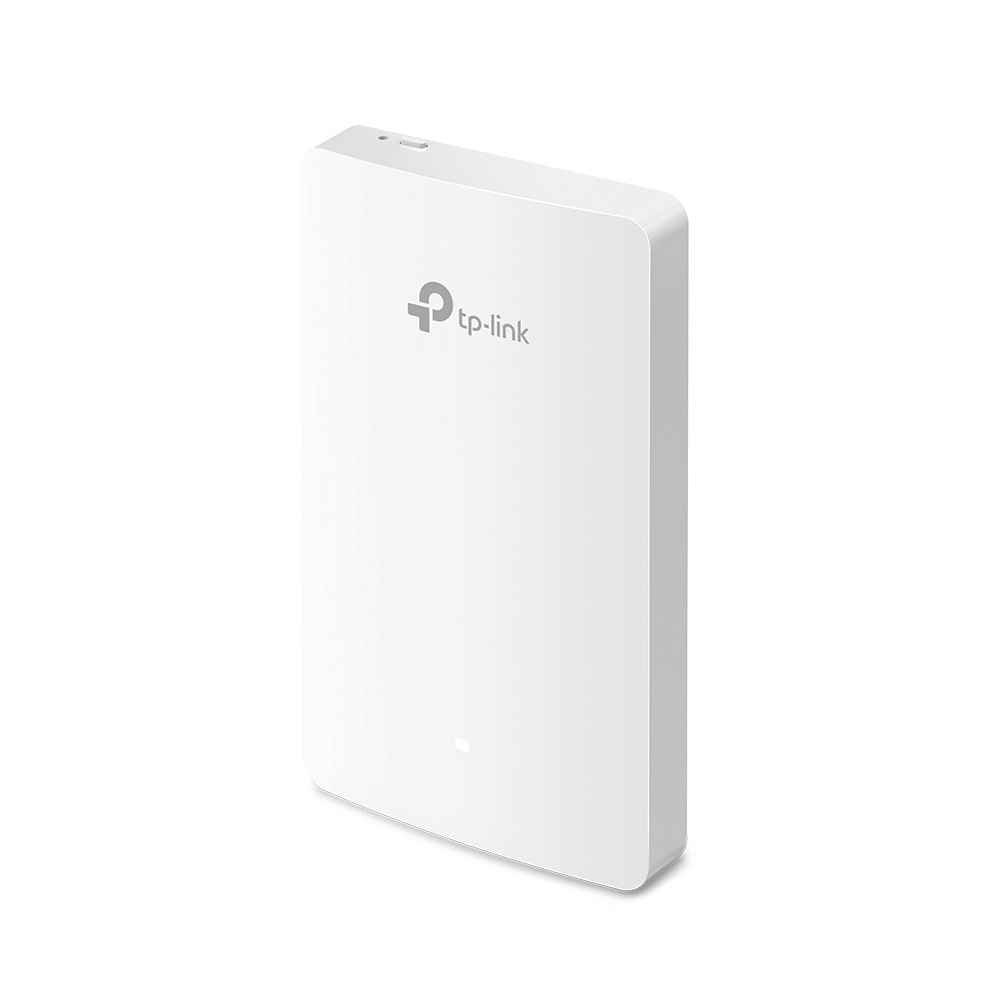

TP-Link EAP235-Wall Omada AC1200 is a sleek and ultra-slim wall-plate access point designed for discreet deployment in hotels, offices, hospitals, and dormitories. Featuring simultaneous dual-band Wi-Fi, it delivers combined speeds up to 1,167 Mbps (867 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz) with MU-MIMO technology for enhanced multi-user performance.

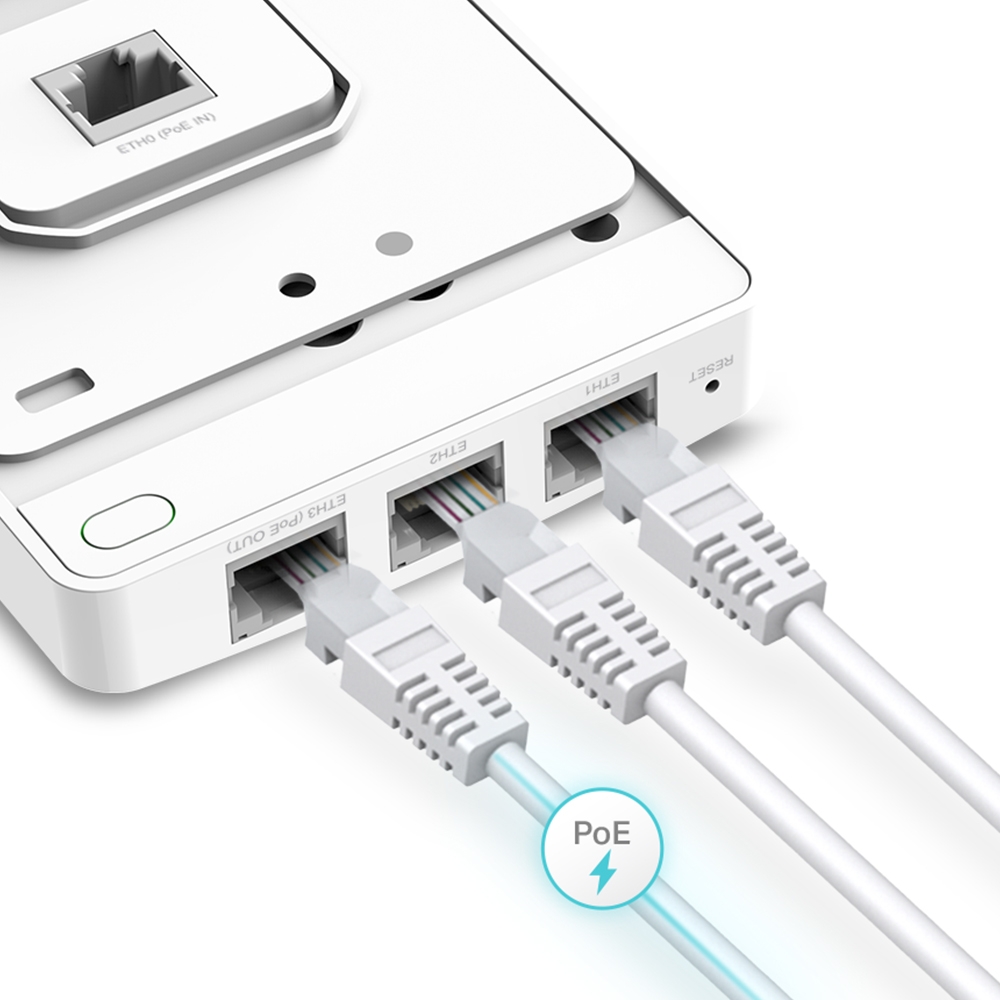

Equipped with four Gigabit Ethernet ports (1 uplink + 3 downlink), including one downlink port supporting PoE pass-through (requires 802.3at input), it powers wired devices seamlessly. Integration with the Omada SDN enables zero-touch provisioning, cloud-based centralized management, and intelligent system monitoring.
Security is robust with multi-SSID support (up to 16), guest network portals with SMS/Facebook/Voucher authentication options, WPA/WPA2, 802.1X, and advanced wireless features like band steering and beamforming to optimize overall network performance.
Installation is easy and compatible with standard 86mm, EU, and US wall junction boxes. Designed with a physical security lock and reset button, it operates efficiently with 802.3af/at PoE power input and consumes a maximum of 24.4 W (PoE-out enabled).
This access point offers extensive management features including SNMP, syslog, SSH, HTTP/HTTPS web interface, VLAN support, multi-site management, and email alerts, making it an ideal choice for professional-grade network deployments within small occupied spaces.
Key benefits:
| Management | Cloud/local,SNMP,SSH,HTTP/HTTPS |
| Physical Security | Security lock,reset button |
| SSIDs Supported | Up to 16 (8 per band) |
| PoE Passthrough | 1 downlink port,max 13 W output |
| Wireless Speed | 867 Mbps (5 GHz),300 Mbps (2.4 GHz) |
| antenna_gain_db | 4,4 |
| Frequency Band | 2.4,5 |
| Dimensions | 143 x 86 x 20 mm |
| Mounting Type | Wall plate (86mm\/EU\/US boxes) |
| Antenna Gain | 4dBi (2.4 GHz & 5 GHz) |
| Mounting Options | Wall plate (86mm/EU/US boxes) |
| Dimensions (mm) | 143,86,20 |
| Max Power Consumption | 9.8 W (up to 24.4 W with PoE Out) |
| Power Requirements | IEEE 802.3af\/at |
| Power Consumption (W) | 9.8 |
| ipas_type | IEEE 802.3af\/at |
| PoE Input | 802.3af\/at compliant |
| Wireless Standards | 802.11a,802.11b,802.11g,802.11n,802.11ac,802.11ac Wave2 |
| mimo_mode | MU-MIMO |
| Processor | MediaTek |
| Frequency Bands | band 2.4 GHz & 5 GHz |
| Ethernet Ports | 4x Gigabit (1 uplink + 3 downlink) |
| Ethernet Ports | 4x Gigabit (1 uplink + 3 downlink) |
| Wi-Fi Standard | IEEE 802.11a\/b\/g\/n\/ac Wave2 |
| Security Protocols | WEP,WPA,WPA2,802.1X |
| Security Features | WEP,WPA,WPA2,802.1X |
| WiFi Speed per Band | 300,867 |
| max_data_rate_mbps | 1167 |
| Certifications | CE,FCC,RoHS |
| Central Management | Omada SDN cloud\/local controller |
| Management Interface | Cloud/local,SNMP,SSH,HTTP/HTTPS |
| Model Number | EAP235-Wall |
