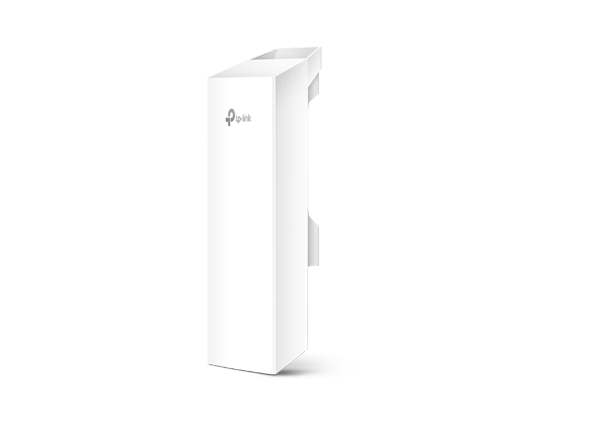

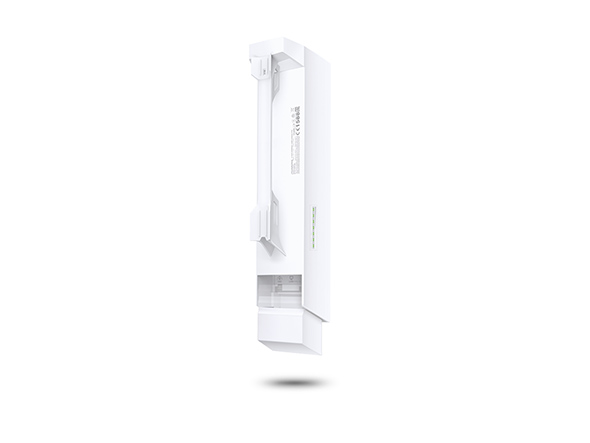

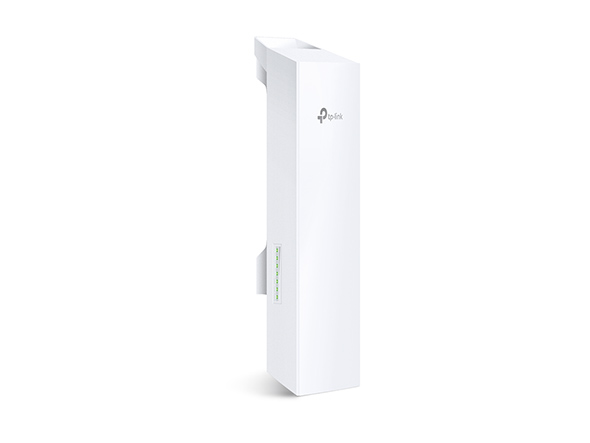

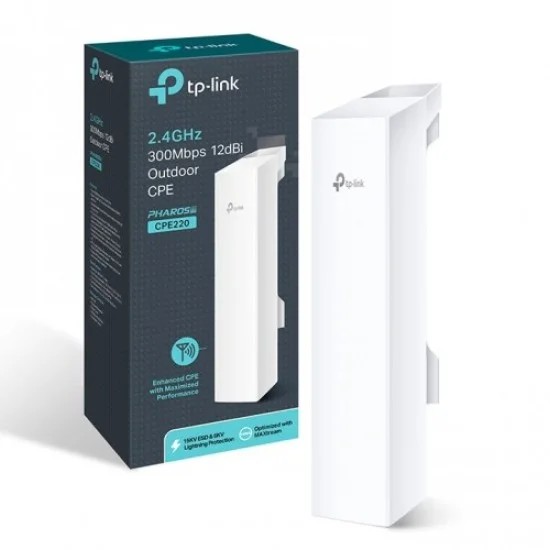

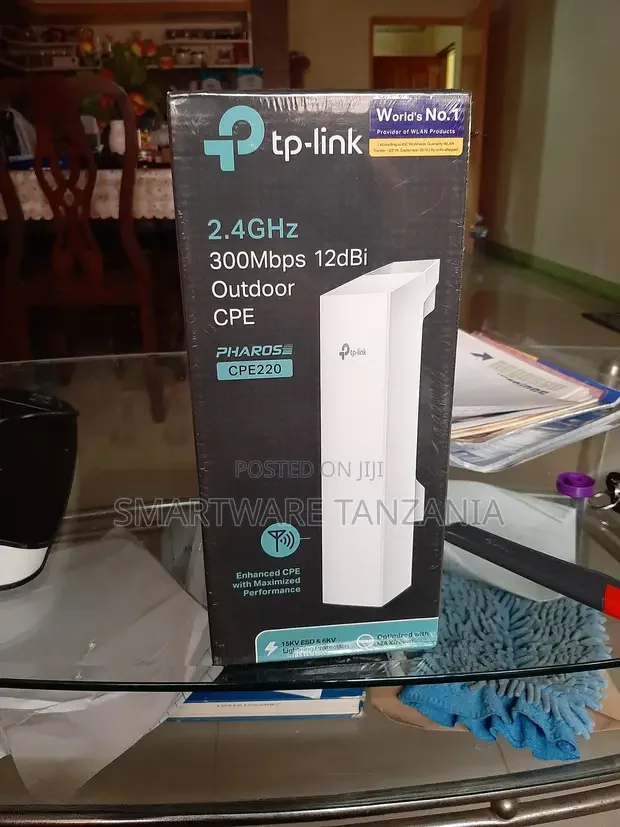

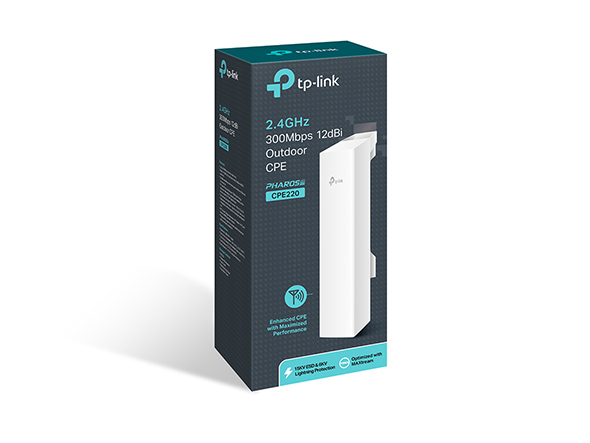

The TP-Link CPE220 is a high-performance 2.4GHz outdoor CPE designed for long-range wireless connectivity up to 13km+. Featuring a built-in 12dBi 2x2 dual-polarized directional MIMO antenna, it delivers reliable 300Mbps wireless rates with advanced Pharos MAXtream TDMA technology that enhances throughput, capacity, and latency in point-to-multipoint applications.
Engineered for outdoor durability, this device boasts an ASA-stabilized plastic enclosure with IPX5 waterproof rating, 15kV ESD and 6kV lightning protection, making it resilient under extreme weather conditions. It utilizes a powerful Qualcomm Atheros 560MHz CPU supported by 64MB DDR2 RAM for seamless performance.
Multiple operation modes including AP, Client, Bridge, Repeater, AP Router, and AP Client Router (WISP) provide versatile deployment options. The adjustable transmit power up to 30dBm (1000mW) ensures optimal signal strength while central management is enabled via Pharos Control system.

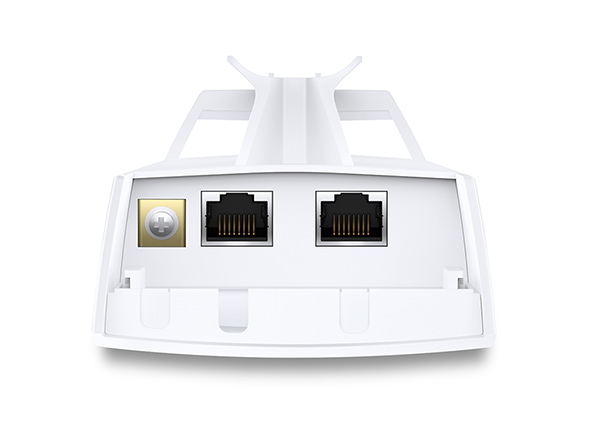

Hardware interfaces include two shielded 10/100Mbps Ethernet ports (one supporting Passive PoE input and one for PoE passthrough), a grounding terminal, and a reset button. The package comes complete with a passive PoE adapter supporting cable runs up to 60 meters for convenient outdoor installation.
Ideal for extending outdoor wireless coverage, connecting remote locations, or establishing point-to-point/multipoint networks, the TP-Link CPE220 stands out with its high gain antenna, robust hardware, and enterprise-grade software features in a compact, weatherproof design.
| Power Consumption | Max 10.8 Watts |
| Power Consumption (W) | 10.8 |
| ipas_type | Passive PoE |
| Power Requirements | 16-27V DC via Passive PoE (included adapter) |
| Power Options | 16-27V DC via Passive PoE (included adapter) |
| max_data_rate_mbps | 300 |
| Operating Temp | -40\u00b0C to +70\u00b0C |
| Enclosure | ASA plastic,IPX5 waterproof rated |
| Beam Width | 60\u00b0 (H-plane) \/ 30\u00b0 (E-plane) |
| Protection | 15kV ESD,6kV Lightning protection |
| Transmit Power | Adjustable up to 30 dBm (1000 mW) |
| Wireless Standard | IEEE 802.11b\/g\/n with TDMA mode |
| Operating Frequency | 2.4 GHz |
| Max Wireless Speed | Up to 300 Mbps (40 MHz channel) |
| Memory | 64MB DDR2 RAM,8MB Flash |
| CPU | Qualcomm Atheros 560 MHz,MIPS 24Kc |
| Storage | 8MB flash |
| processor_info | Qualcomm Atheros 560MHz CPU (MIPS 24Kc) |
| Ethernet Ports | 10/100 Mbps shielded,LAN0 PoE in,LAN1 passthrough |
| Ethernet Ports | 10/100 Mbps (1 Passive PoE in,1 passthrough) |
| interfaces | RJ-45 Ethernet ports (2 x 10\/100 Mbps) |
| wan_lan_ports | 10\/100 Mbps shielded (LAN0\/LAN1) |
| PoE Support | Passive PoE 24V (adapter included) |
| Processor | Qualcomm Atheros 560MHz CPU (MIPS 24Kc) |
| mimo_mode | 2 |
| band_count | 1 |
| WiFi Speed (Mbps) | 300 Mbps |
| Dimensions (WxDxH) | 276 x 79 x 60 mm (11 x 3.1 x 2.1 inches) |
| Antenna Type | Built-in 12dBi 2x2 Dual-polarized MIMO |
| esd_protection_kv | 15KV |
| Enclosure Rating | Outdoor ASA stabilized plastic,IPX5 waterproof |
| backhaul_type | Wired |
| Product Type | Outdoor CPE\/AP\/Router |
| Model Number | CPE220 |
