SKU: cm412
Availability: Out of Stock
Brand: Simplecom
Category: Video Adapters & Converters
100% Guarantee Safe Checkout

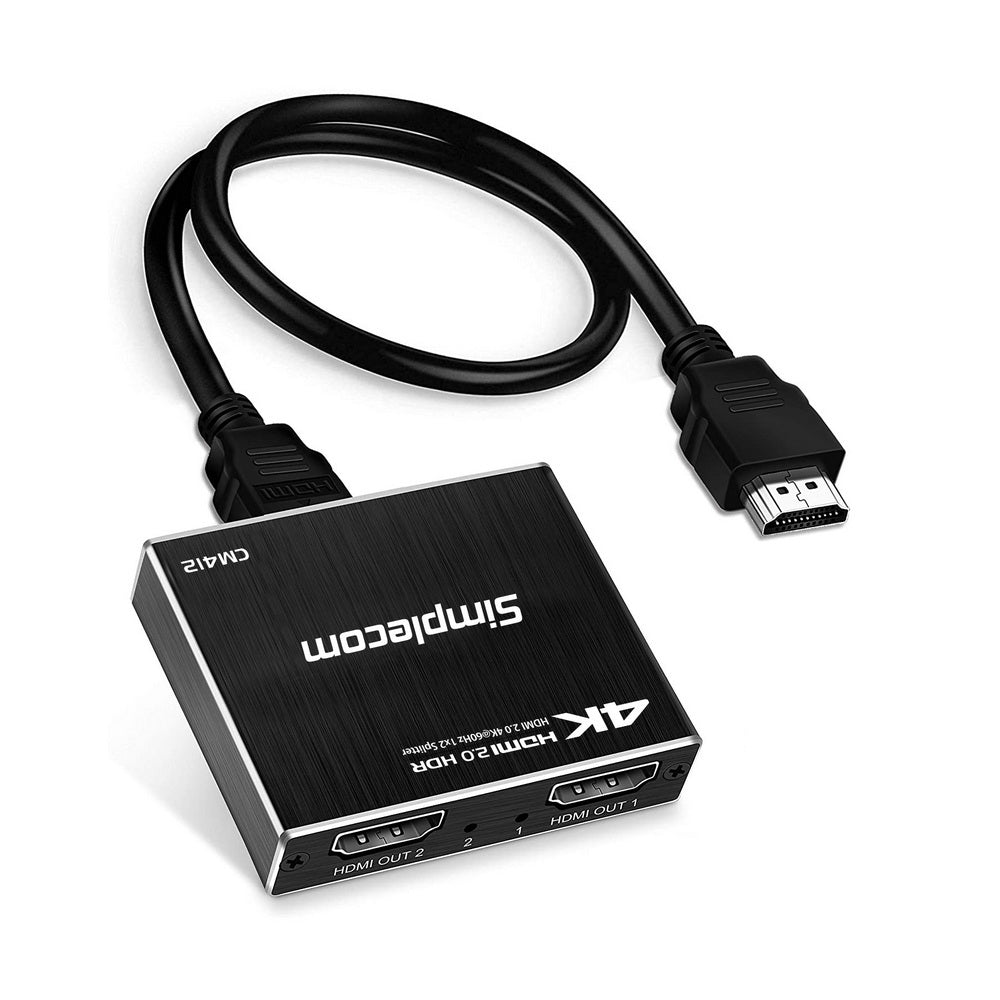

The Simplecom CM412 is a high-performance HDMI 2.0 1x2 splitter designed to duplicate one HDMI source signal to two displays simultaneously. Supporting ultra-high video resolutions up to 4K@60Hz along with HDR10 for vivid visual quality, this device is perfect for modern streaming boxes, gaming consoles, and multimedia setups.
Key features include automatic resolution detection and configuration to match each connected display's capabilities, as well as a unique downscaling (mixed) mode. This mode allows one output to deliver 4K while the other outputs 1080p, ideal for scenarios like gaming on a 4K display while capturing at 1080p.
The CM412 ensures broad compatibility with HDMI standards, supporting HDMI 2.0b while remaining backward compatible with HDMI 1.4 and 1.3. It is fully compliant with HDCP 2.2 and 1.4, safeguarding copyright protection. Alongside high-fidelity video, it supports multiple advanced audio formats including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1 channels.
Installation is straightforward with plug-and-play operation requiring no software. Featuring LED indicators for power and signal status, this compact splitter is powered via USB DC 5V 1A and consumes minimal power at 5W.
Ideal for multimedia enthusiasts seeking reliable dual-display HDMI duplication with advanced features and flexible output resolutions.
| Special Features | Downscaling and auto resolution detect |
| Power Requirement | USB DC 5V 1A |
| Audio Formats | DTS-HD,Dolby,LPCM 7.1 |
| Max Bandwidth | 18 Gbps |
| Output Ports | HDMI (female) |
| Input Ports | 1 x HDMI (female) |
| Operating Temperature | -15 to +55 \u00b0C |
| Dimensions (LxWxH) | 58 x 48 x 12 mm |
| Height (mm) | 12 |
| Width (mm) | 48 |
| Length (mm) | 58 |
| Dimensions (mm) | 58 x 48 x 12 |
| Max Power Consumption | 5W |
| HDR Support | HDR10 |
| max_resolution | 4K@60Hz (3840x2160) |
| Audio Support | DTS-HD,Dolby True HD,Dolby Digital Plus,LPCM 7.1 |
| bandwidth_gbps | 18 |
| Interface | HDMI |
| max_resolution | 3840 \u00d7 2160 @ 60Hz |
| HDCP Support | HDCP 2.2 & 1.4 compliant |
| HDMI Version | HDMI 2.0b |
| power_consumption_watts | 5 |
| Power Source | USB DC 5V 1A |
| Model Number | CM412 |
