Simplecom CM353 3-Port HDMI 2.1 Switch - 8K@60Hz, HDCP 2.3, 48Gbps Bandwidth, Remote Control Included
โ˜… 0.0 Rating (0 user feedback)

SKU: cm353

Availability: Out of Stock

Brand: Simplecom

Category: Cables & Adapters

$49.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

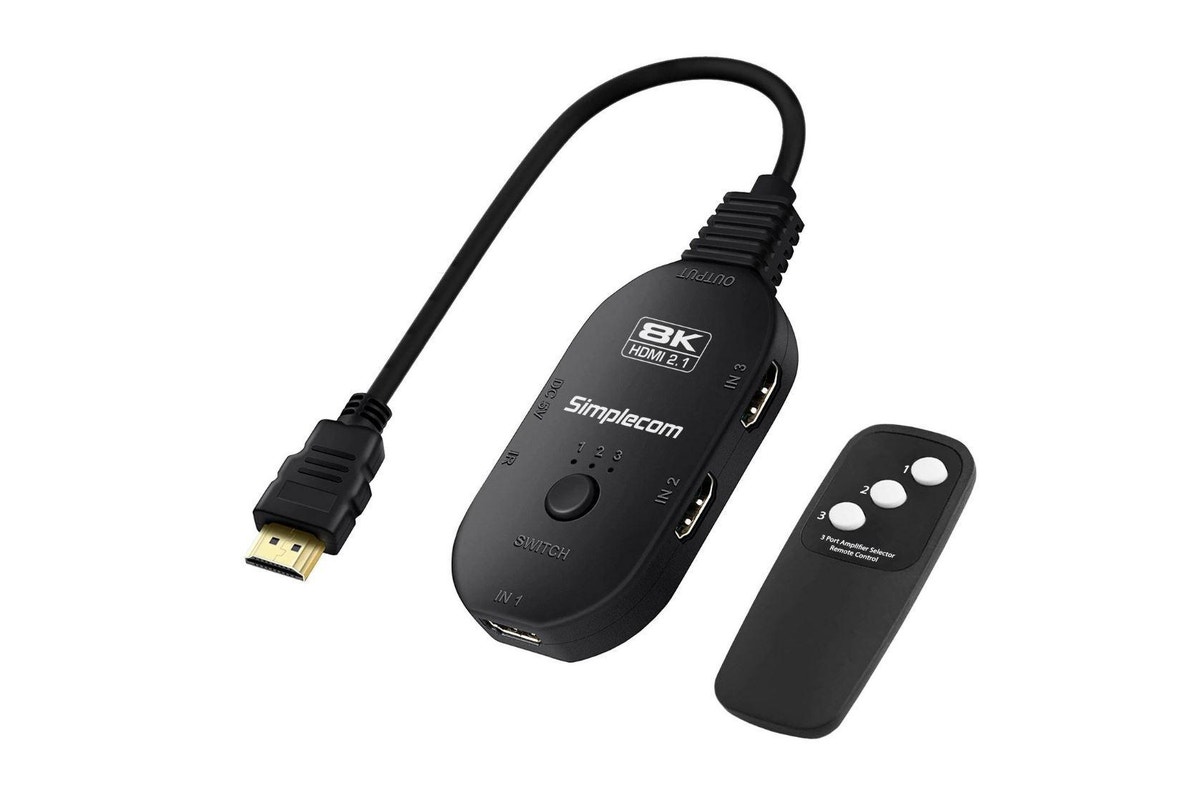

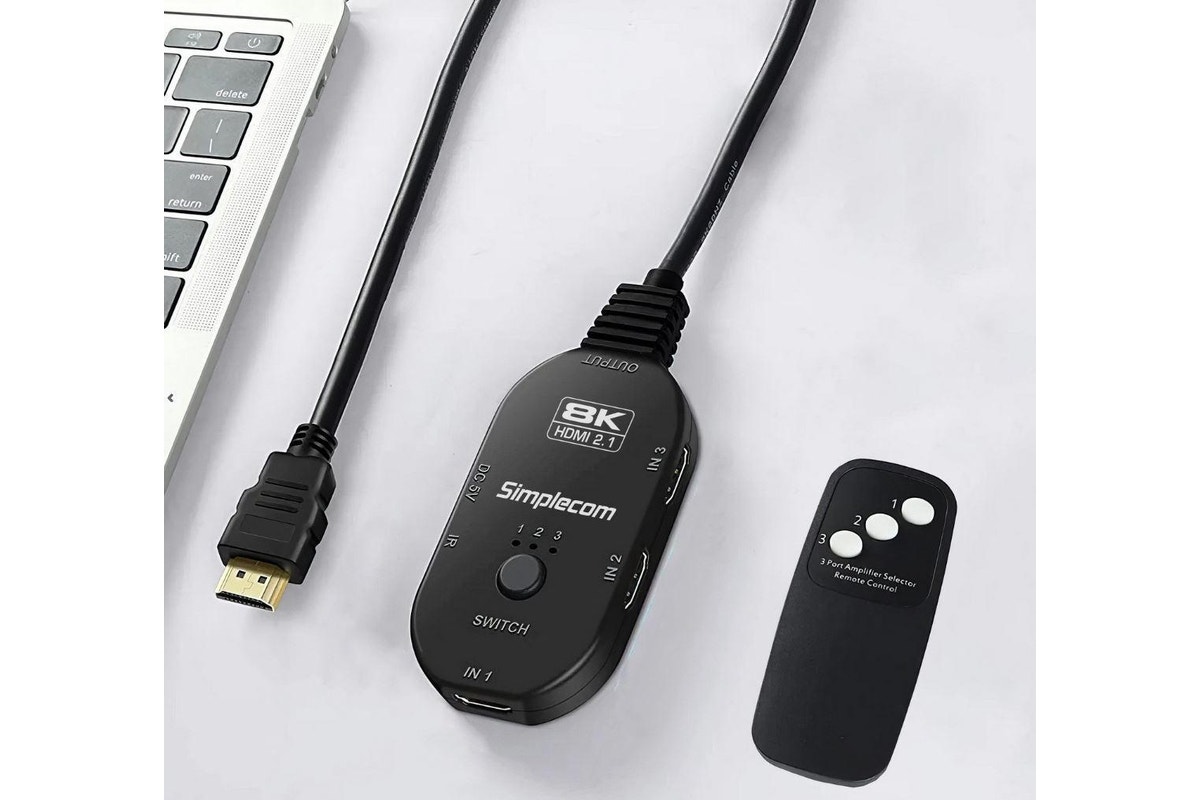

The Simplecom CM353 is a versatile 3-Port HDMI 2.1 switch designed to expand a single HDMI input on your TV or monitor into three sources. Supporting the latest HDMI 2.1 and HDCP 2.3 standards, it delivers impressively high resolutions up to 8K@60Hz and 4K@120Hz with a bandwidth up to 48Gbps. This switch allows seamless sharing of your HDMI display among multiple devices such as gaming consoles, media players, and computers.

Featuring an integrated HDMI output cable, it ensures a stable and straightforward connection without clutter. The device is both plug-and-play and easy to operate through the included remote control or via a front toggle button, with LED indicators clearly showing the active input. It supports advanced HDR and deep color formats (12-bit to 36-bit) along with popular audio formats like DTS-HD, Dolby TrueHD, and PCM/LPCM for an immersive audiovisual experience.

Powering options are flexible; the unit can draw power from connected HDMI devices or through the supplied USB-C 5V power cable, avoiding the need for bulky adapters in most setups. Compact and lightweight, the CM353 fits neatly into any entertainment setup, operating reliably between 0ยฐC and 50ยฐC. Please note that to achieve full 8K@60Hz or 4K@120Hz capabilities, use of a certified 48Gbps HDMI 2.1 cable (max 3 meters) is required.

Ideal for users needing to manage multiple HDMI sources effortlessly without compromising video or audio quality, the Simplecom CM353 simplifies connectivity while supporting cutting-edge display standards.

General

Operating Temp0\u00b0C to 50\u00b0C
Max Refresh Rate8K@60Hz,4K@120Hz,1080p@240Hz
Audio FormatsDTS-HD,Dolby-TrueHD,PCM,LPCM
Max Bandwidth48Gbps
HDMI Output1x HDMI Male (integrated cable)
HDCP Version2.3,backward compatible
length_meters0.4

Physical

Weight80g
Cable LengthApprox. 40 cm
Dimensions (LxWxH)121 x 50 x 1.5 mm
Connector Featureintegrated cable (output)
Length Unitmeters
Cable Length (Display)Approx. 40 cm
Cable TypeHDMI
Connector TypeHDMI Female (input),HDMI Male (output)

Power

Power InputUSB-C 5V or HDMI powered

Technical

Color Depth12\/14\/16\/36 bit deep colour
max_resolution8K@60Hz,4K@120Hz
HDR SupportYes
Supported Resolutions8K to 480p including 4K\/1080p
HDMI Features Supported8K@60Hz,4K@120Hz,HDR,12bit/14bit/16bit color depth,Deep Color
Power over Ethernet

Connectivity

HDMI Inputs3x HDMI Female
HDMI Version2.1,backward compatible

Compliance

ComplianceHDCP 2.3,HDMI 2.1
standard_complianceHDCP 2.3

Performance

maximum_speed_gbps48

Environmental

operating_temperature_c_max50
operating_temperature_c_min0

Identification

Part NumberCM353
ModelCM353

Classification

CategoryHDMI Switch \/ Splitter
