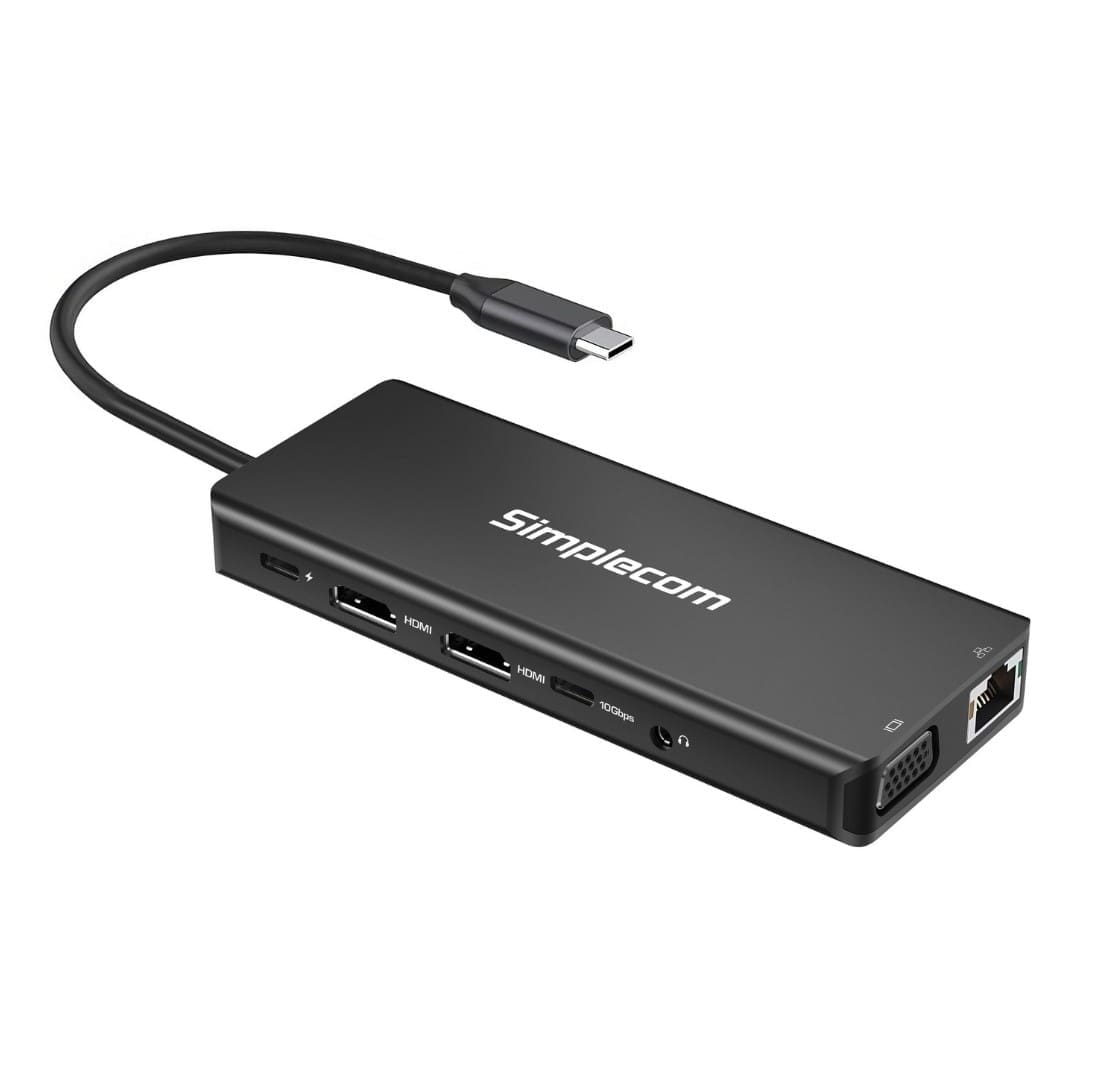

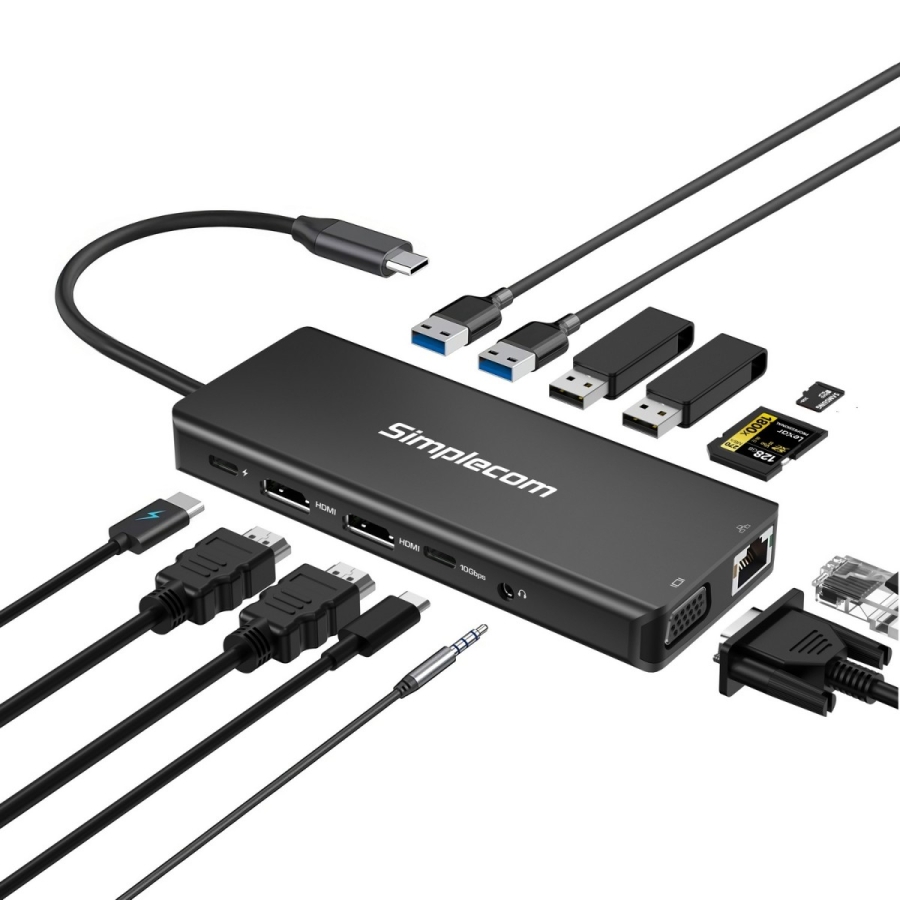

Simplecom CHN613 USB-C 13-in-1 Multiport Docking Station with Dual HDMI, VGA, Gigabit Ethernet, 10Gbps USB 3.2 Gen 2 & 100W PD Charging
โ˜… 0.0 Rating (0 user feedback)

SKU: chn613

Availability: Out of Stock

Brand: Simplecom

Category: Docking Stations

$79.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

Simplecom CHN613 13-in-1 USB-C Multiport Docking Station expands one USB-C port into a versatile hub offering multiple connectivity options for laptops and compatible devices. Crafted in durable aluminium alloy with a sleek design and lightweight form, it is ideal for on-the-go professionals and home offices.

  • Triple Display Output: Supports dual HDMI plus VGA with MST support on Windows, enabling extended or mirrored setups. Single HDMI delivers up to 4K@30Hz; dual HDMI outputs up to 1080p@60Hz each, VGA supports 1080p@60Hz.
  • High-Speed Data: USB 3.2 Gen 2 (10Gbps) ports including 2 USB-A and 1 USB-C, plus additional USB-A SuperSpeed ports for peripherals and SSDs.
  • Card Reader: SD and microSD slots with SuperSpeed data transfer (up to 5Gbps) facilitate quick access to media.
  • Ethernet & Audio: Gigabit RJ45 port ensures reliable wired Internet up to 1000 Mbps, and a 3.5mm audio jack supports headphones or external speakers.
  • Power Delivery: USB-C PD port supplies up to 100W charging power for connected laptops (charging only, no data).
  • Plug & Play: No drivers needed with broad OS support (Windows 8+ for MST, macOS supports single display).
  • Compact & Durable: Built-in 15cm cable, operates 0โ€“45ยฐC, and housed in a stylish aluminium alloy chassis perfect for travel.
Compatible with USB-C ports supporting DP Alt Mode, USB 3.2 Gen 2, USB4, or Thunderbolt USB-C, the CHN613 dock provides flexible, all-in-one expansion for modern devices.

Note: MacOS does not support MST; maximum display setups and resolutions depend on host system capabilities.

Audio

Audio3.5mm headphone\/speaker jack

General

Card ReaderSD + microSD with up to 5Gbps
Operating Temp0\u00b0C to 45\u00b0C
HDMI Resolution4K@30Hz single,1080p@60Hz dual
VGA Resolution1080p@60Hz
USB Data Ports4x USB-A,1x USB-C
EthernetGigabit RJ45 (10\/100\/1000 Mbps)
USB SpeedUSB 3.2 Gen 2 (10Gbps) on 3 ports

Compatibility

CompatibilityUSB-C with DP Alt Mode,Windows/Mac

Physical

Cable Length15 cm built-in
Ports13 including USB-C,USB-A,HDMI,VGA,Ethernet
MaterialAluminium alloy
dimensions_whd135 x 55 x 16
Operating Temperature0 - 45 \u00b0C
Dimensions (mm)135 x 55 x 16
Host InterfaceUSB-C with DP Alt Mode (DisplayPort Alt Mode)

Electrical

Power Output0
Power Delivery (Watts)100

Performance

Video OutputsHDMI + VGA,triple display support
Maximum Resolution4K (HDMI up to 4K@30Hz; VGA up to 1080p)
maximum_displays3
maximum_resolution_vga1080p@60Hz
maximum_resolution_hdmi4K@30Hz (single),1080p@60Hz (dual)

Technical

Power DeliveryUSB-C PD up to 100W (charging only)

Power

Power InputUSB-C PD input (up to 100W)

Identifiers

Model NumberCHN613
