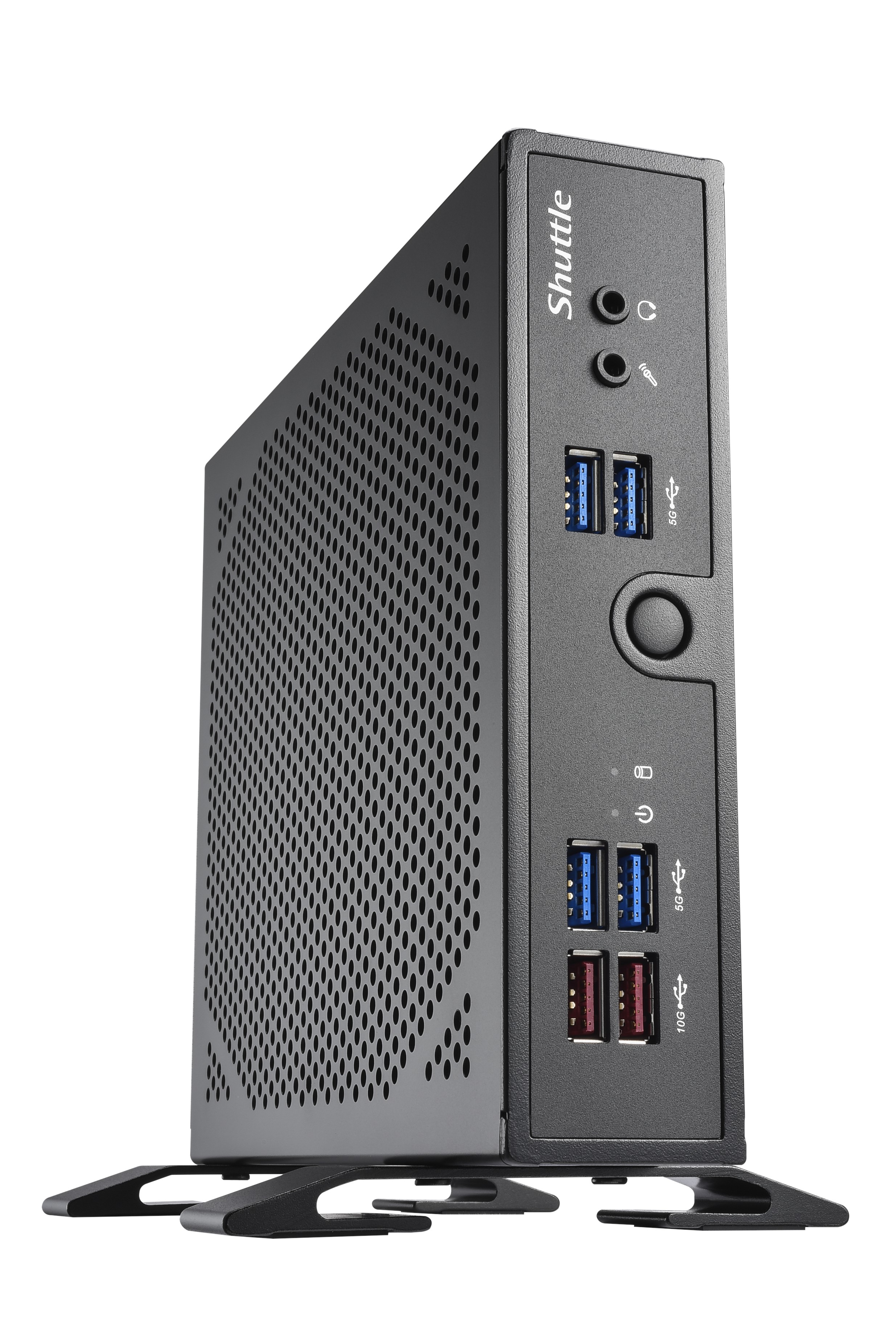

The Shuttle XPC Slim DS50U5 is a compact, fanless barebone mini PC designed for industrial and professional applications requiring silent, reliable operation 24/7. Powered by the soldered Intel Core i5-1335U processor from the 13th Gen Raptor Lake-U series, it delivers balanced performance and excellent energy efficiency with a 15W TDP.

This 1.3-liter slim chassis system supports up to 96 GB dual-channel DDR5 memory at speeds up to 5200 MT/s via two DDR5 SO-DIMM slots and features robust thermal design that eliminates the need for fans. Multiple expansion options include two M.2 2280 M-Key slots for NVMe SSDs, a 2.5" SATA drive bay, and an M.2 2230 E-Key slot for wireless connectivity.

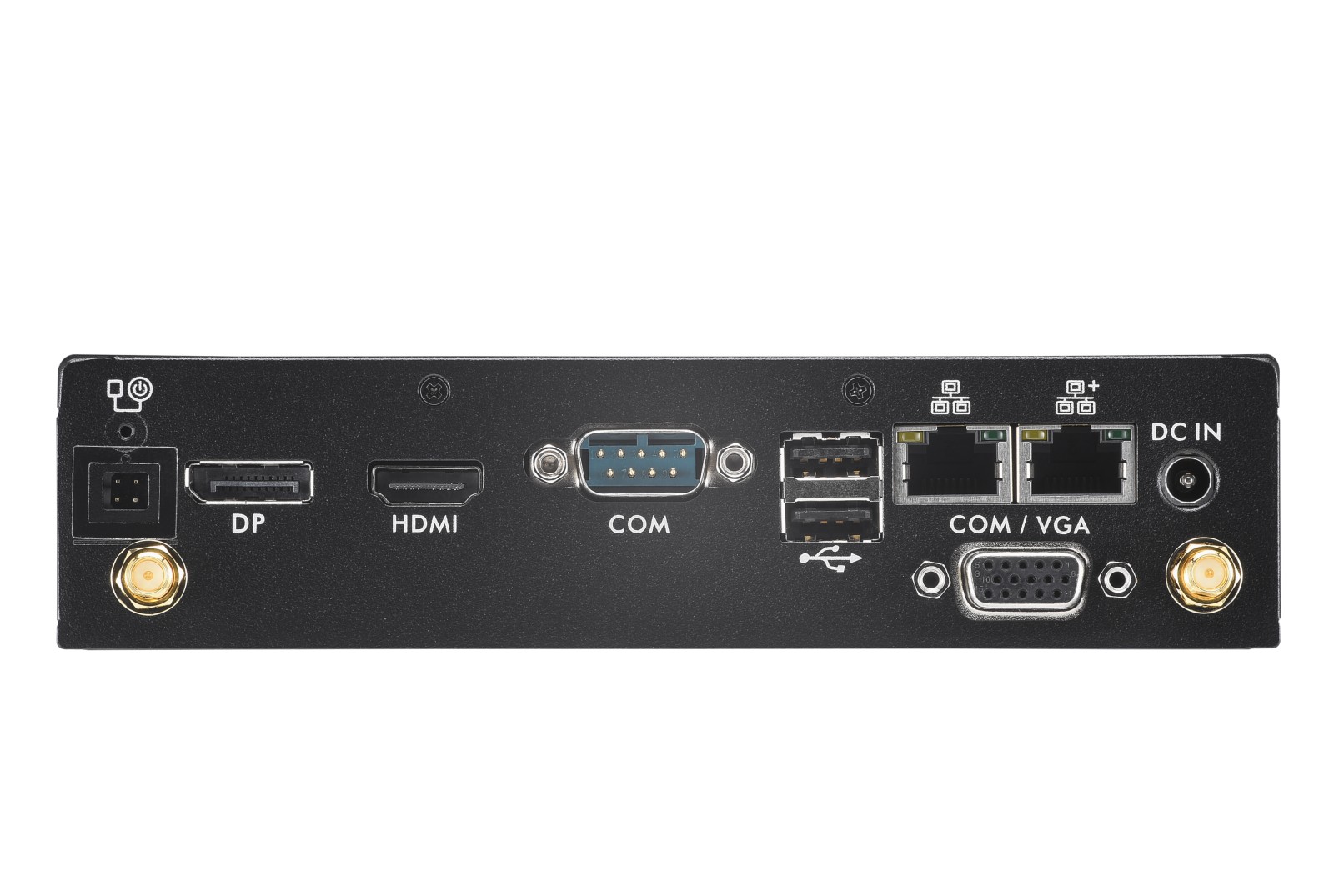

Connectivity is extensive, with triple independent display support through HDMI 2.0b, DisplayPort 1.4, and VGA ports, making it ideal for multi-monitor setups. Dual Ethernet ports with Intel controllers support 2.5 GbE and 1 GbE networking with Wake-On-LAN and teaming functionality. The COM port is configurable for RS232, RS422, or RS485, further enhancing industrial compatibility.

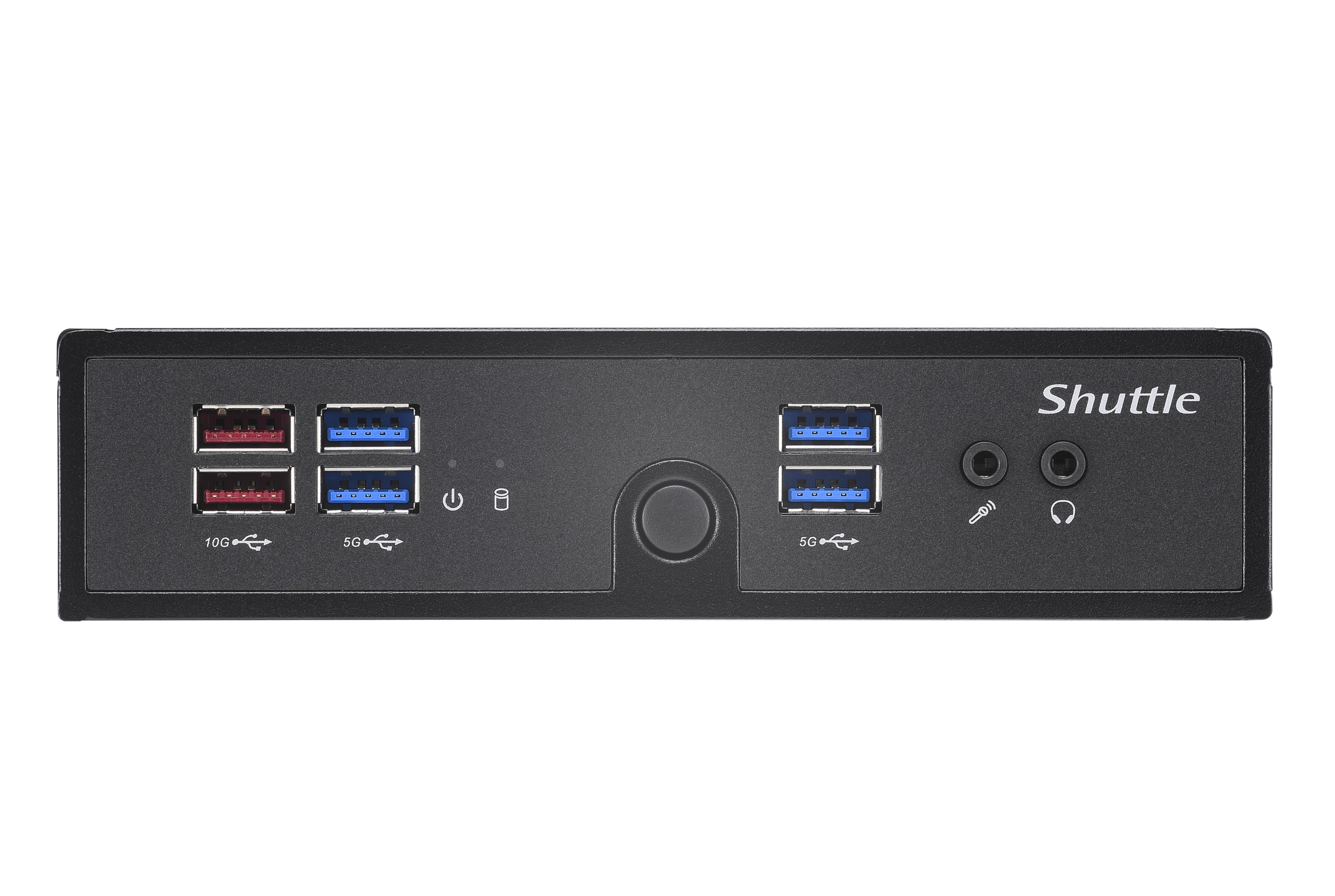

Additional front and rear USB ports (including USB 3.2 Gen2), audio in/out, Kensington lock, and antenna connectors for optional WWAN modules provide flexible peripheral support. The device ships with a 90W 19V power adapter and supports operation with 12V or 19V DC.

Certified for safety and EMI standards (CB, BSMI, cTUVus, FCC, CE, RCM, VCCI, UKCA), the DS50U5 is compatible with Windows 10/11 and Linux OS, making it an excellent choice for IoT gateways, digital signage, edge computing, kiosks, and automation control systems where silent, low-maintenance operation is critical.
