SKU: NA10H7
Availability: In Stock
Brand: Shuttle
Category: Desktop Computers
100% Guarantee Safe Checkout

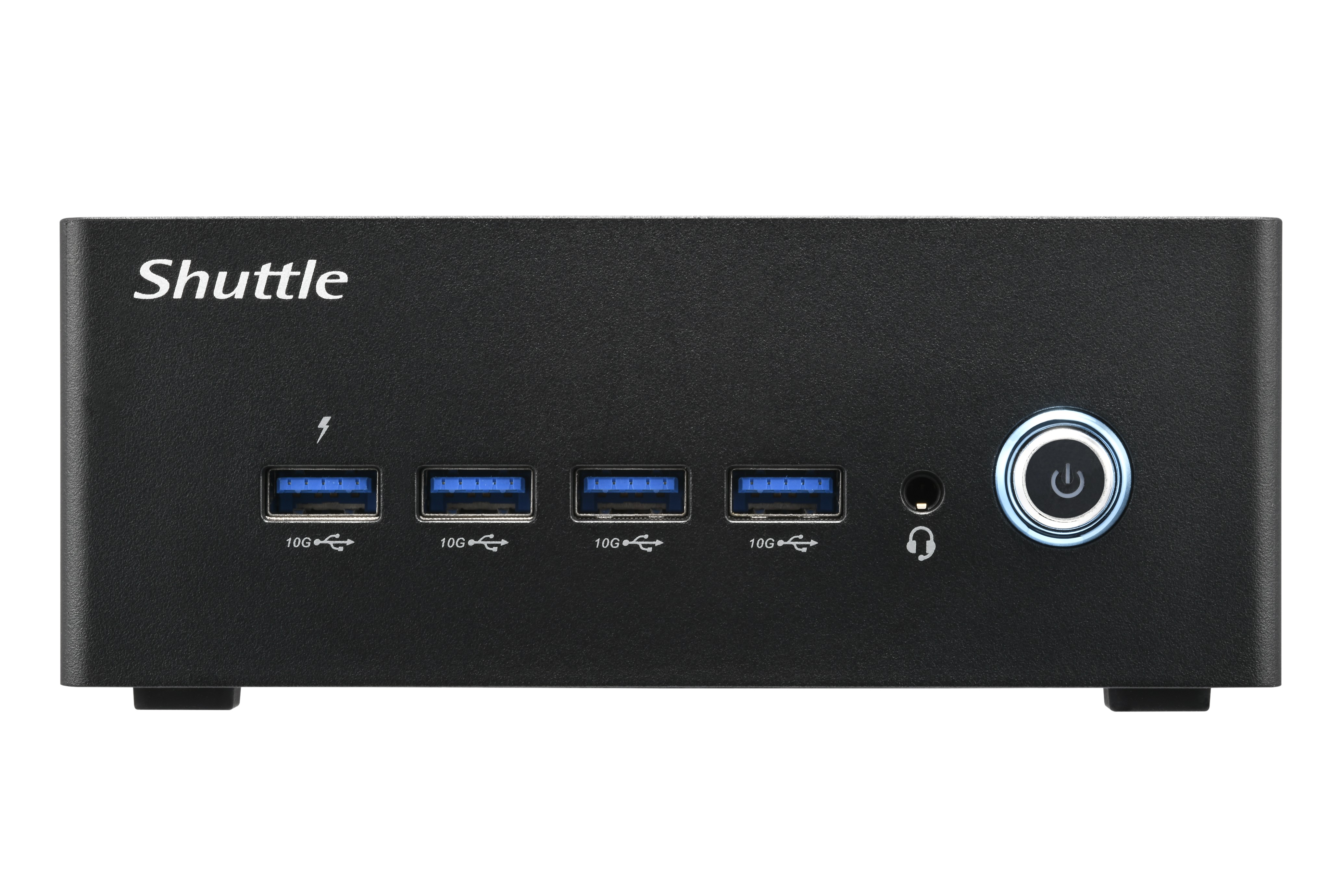

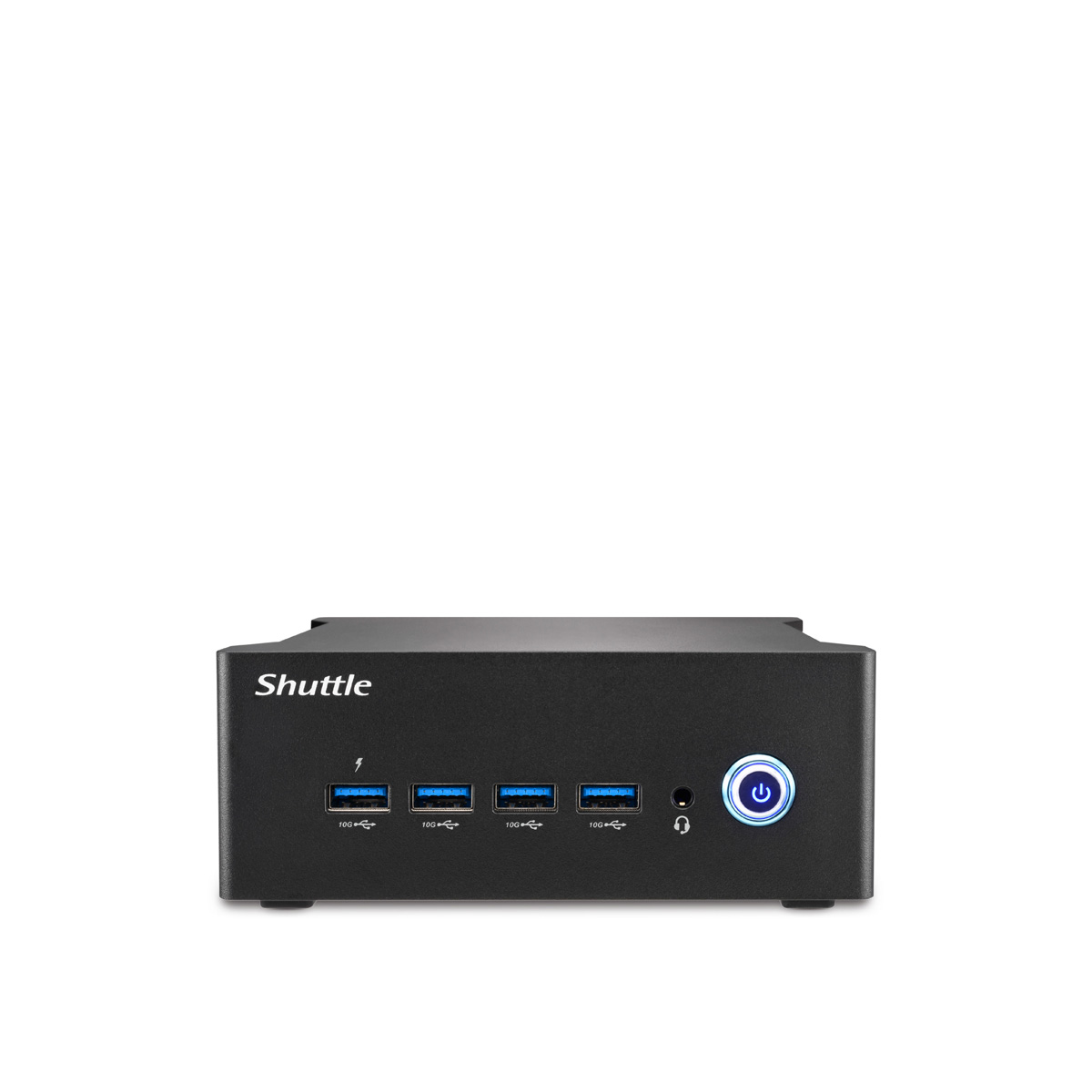

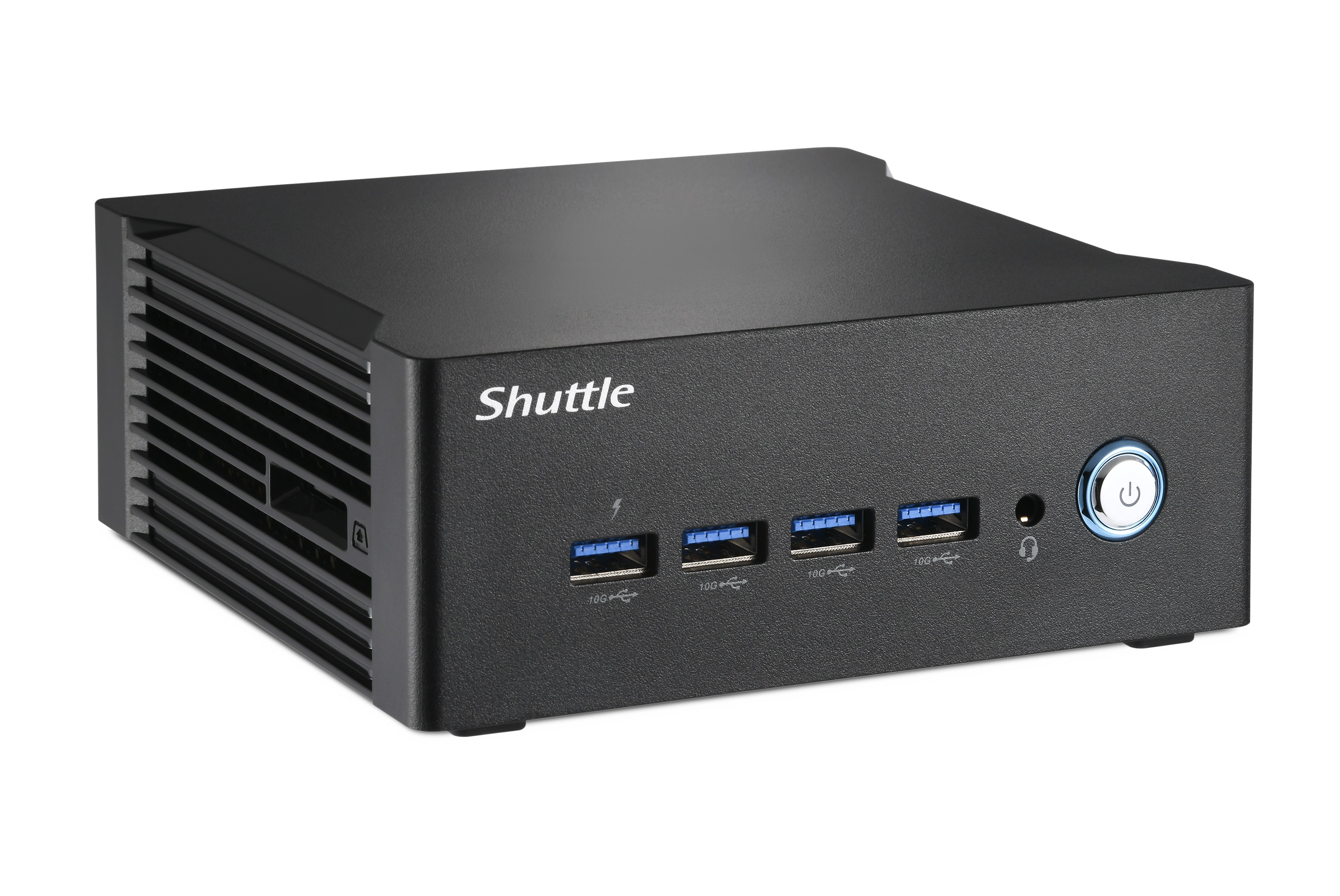

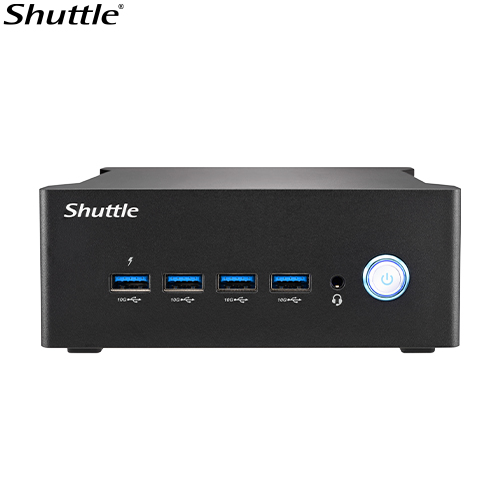

The Shuttle NA10H7 is a compact 1-liter barebone mini PC optimized for AI, industrial, and office use. Powered by an AMD Ryzen 7 8845HS processor featuring 8 Zen 4 cores and 16 threads, it integrates Radeon 780M graphics plus a Neural Processing Unit (NPU) delivering combined CPU, GPU, and AI performance of 39 TOPS. Supported memory includes dual-channel DDR5-5600 SO-DIMM slots, allowing up to 96 GB RAM.
Its versatile storage options include one M.2-2280 PCIe Gen4 x4 NVMe SSD slot and an M.2-2230 slot for WLAN modules. Visual output supports up to four independent 4K/60Hz displays via 2 HDMI 2.0b and 2 USB4 Type-C ports with DisplayPort 1.4 functionality.
Connectivity is extensive with 8 USB ports, dual Realtek RTL8125B 2.5G LAN for high-speed networking, SD card reader, and combo audio jack. The small chassis measures 132 ร 143 ร 55 mm and comes with a fanless 120W external power adapter and VESA mounting support.
Additional features include configurable TDP (35W to 54W, turbo to 65W), AMI UEFI firmware with Wake-on-LAN, optional TPM 2.0 security, and advanced cooling with dual fans. Designed for 24/7 operation in rugged or office environments, the Shuttle NA10H7 combines high performance, flexible expansion, and rich I/O in a space-saving form factor.
| Operating Systems | Supports Win11 & Linux 64-bit |
| LAN Ports | Realtek RTL8125B 2.5G Ethernet |
| Max Displays | Four independent 4K\/60 Hz |
| WLAN Slot | M.2 2230 E (PCIe x1 + USB 2.0) |
| Boost Clock | Up to 5.1 GHz |
| aio_form_factor | 1 L mini barebone 132x143x55 mm |
| effective_memory_slots | 2 |
| cpu_cache_mb | 24 |
| Security | Optional dTPM 2.0 |
| Power Adapter | 120 W fanless external PSU |
| TDP | Configurable 35-54 W,turbo 65 W max |
| Cooling | Heat-pipe with dual 80mm & 60mm fans |
| Form Factor | 1 L mini barebone 132x143x55 mm |
| Dimensions (mm) | 132x143x55 mm |

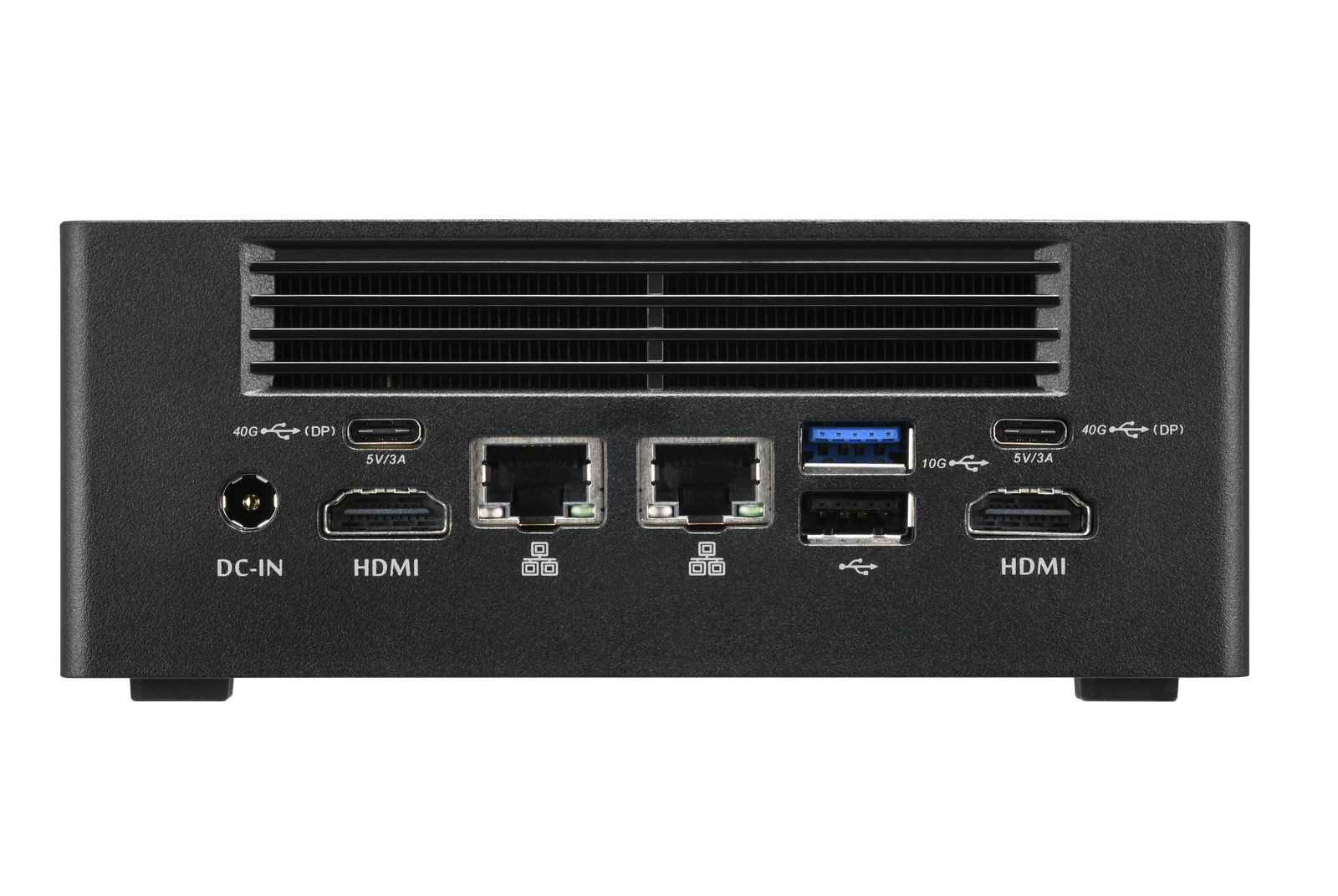

| Ports | HDMI 2.0b,USB4-C DP1.4,8x USB,2.5G Ethernet |
| USB Ports | 8 total (USB4,USB 3.2 Gen2,USB 2.0) |
| memory_type | DDR5 SO-DIMM |
| Base Clock | 3.8 GHz |
| Processor | AMD Ryzen 7 8845HS,8 cores / 16 threads |
| memory_type | DDR5 |
| boost_clock_speed_ghz | 5.1 |
| CPU Threads | 16 |
| base_clock_speed_ghz | 3.8 |
| CPU Cores | 8 |
| Processor Model | AMD Ryzen 7 8845HS |
| Display Outputs | HDMI 2.0b + 2x USB4 Type-C DP 1.4 |
| Storage Interface | M.2 2280 PCIe Gen4 x4 NVMe |
| Storage Interface | PCIe Gen4 x4 NVMe |
| Storage Type | NVMe |
| Memory Speed | DDR5-5600 |
| Memory Capacity | Up to 96 GB (2x48 GB) |
| max_memory_capacity_gb | 96 |
| memory_speed_mtu_s | 5600 |
| Cache | 8 MB L2 + 16 MB L3 |
| SKU | Shuttle NA10H7 |
| Networking | Realtek RTL8125B 2.5G Ethernet |
| ethernet_speed_gbps | 2.5 |
| Operating System Support | Windows 11,Linux 64-bit |
| Graphics | Integrated Radeon 780M,12 GPU cores |
