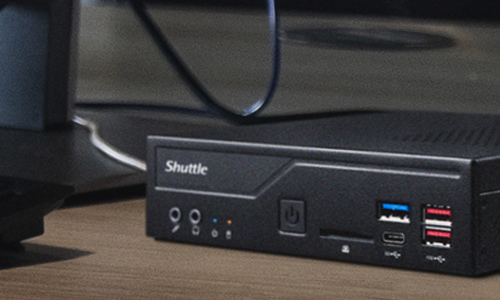

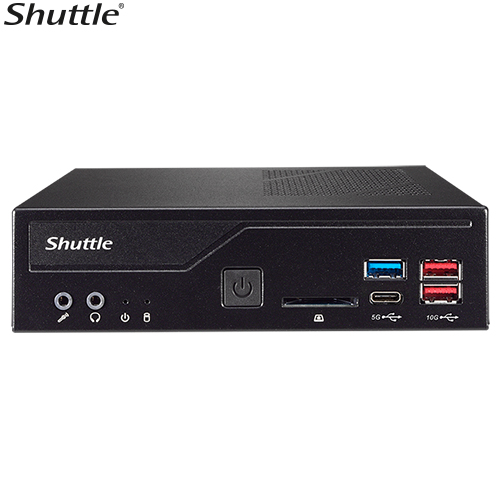

The Shuttle DH670 Slim Mini PC is a compact 1.3L barebone system designed for powerful performance with a sleek profile. It supports Intel 12th, 13th, and 14th Gen LGA1700 desktop processors including Core i3/i5/i7/i9, Pentium, and Celeron series with up to 65W TDP. Featuring the Intel H670 chipset, it delivers reliable and stable performance for commercial and industrial applications such as digital signage, kiosks, automation, surveillance, and education.

Memory options include two DDR4 SO-DIMM slots supporting up to 64 GB of RAM at speeds up to 3200 MHz, enabling smooth multitasking and responsiveness. Storage flexibility is provided via a 2.5" SATA HDD/SSD bay, an M.2 2280 Type M slot with PCIe 4.0 x4 and SATA support for ultrafast NVMe SSDs, and an M.2 2230 Type E slot for wireless modules.

The DH670 excels in multimedia and display capabilities, offering four video outputs (2× HDMI 2.0b and 2× DisplayPort) capable of driving up to four independent 4K UHD displays simultaneously, ideal for multi-display environments.

Connectivity options are robust, featuring four USB 3.2 Gen2 ports (including Type-C) and four USB 3.2 Gen1 ports, dual Intel Gigabit LAN for reliable wired networking, and RS232 serial ports with configurable RS422/485 support for legacy and industrial device integration.

Designed for endurance and quiet operation, Shuttle’s heat-pipe cooling system with a smart fan ensures stable temperature and airflow inside the slim chassis. The package includes a 120W power adapter providing efficient power delivery.

Compatible with Windows 10/11 64-bit and Linux OS, the Shuttle DH670 also supports SATA RAID 0/1 configurations, Wake-on-LAN functionality, and multiple mounting solutions like VESA, making it highly versatile for professional deployments.
