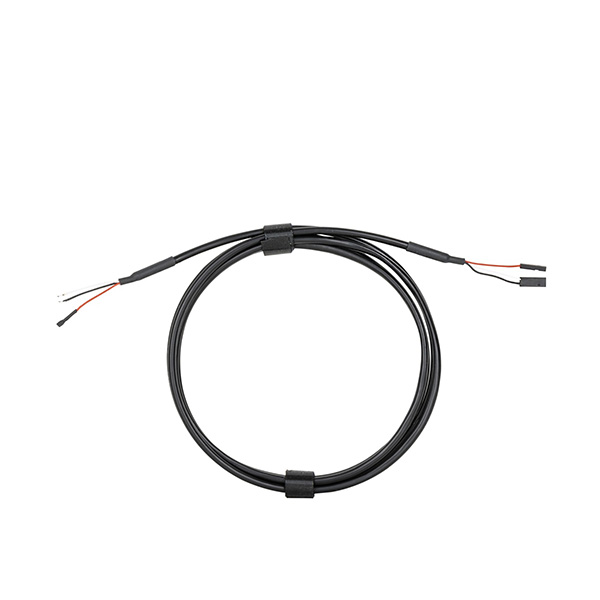

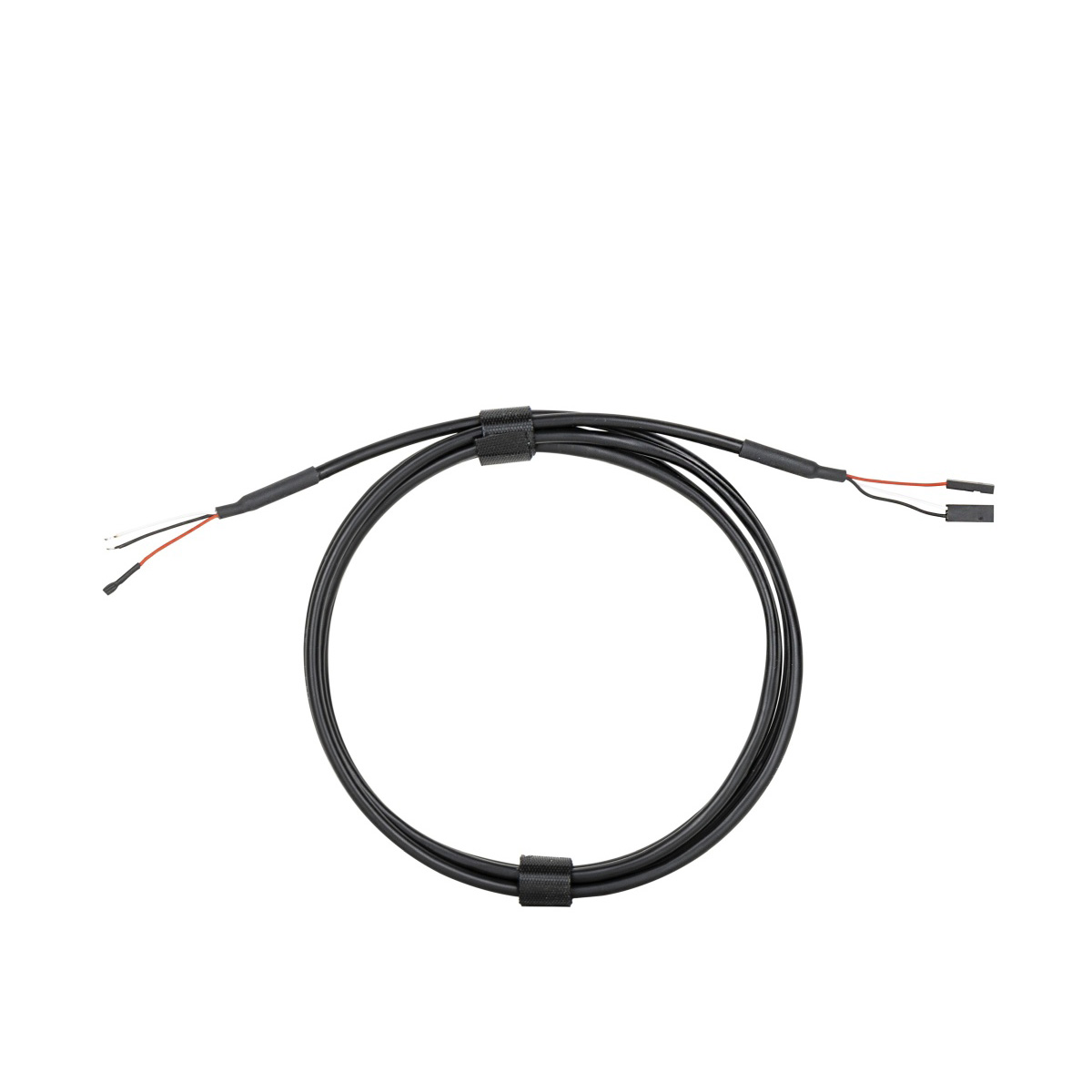

The Shuttle CXP01 is a 2-metre shielded cable designed to enable remote power control for compatible Shuttle XPC systems. Specifically made for setups where the main unit is inaccessible—such as VESA-mounted PCs or remote installations—this cable allows you to attach an external momentary push button switch, facilitating easy power on/off without direct access to the chassis.

Key Features:

• Cable length: approximately 2 metres, black color, outer diameter 6.5 mm.


• Constructed with three stranded wires: black (ground/common), white (power-button), and red (+5V LED indicator).


• Equipped with a female dual-header pin connector (2.54 mm pitch) compatible with Shuttle XPC back-panel connectors.


• Tin-plated leads at the other end suitable for screw-type connections or soldering, allowing you to use a push button switch of your choice.


• Supports buttons with integrated LED indicators via the +5V LED wire.


• Perfect accessory for various Shuttle XPC models to enhance convenience and accessibility.
