SKU: bpcwl02
Availability: Out of Stock
Brand: Shuttle
Category: Desktop Computers
100% Guarantee Safe Checkout

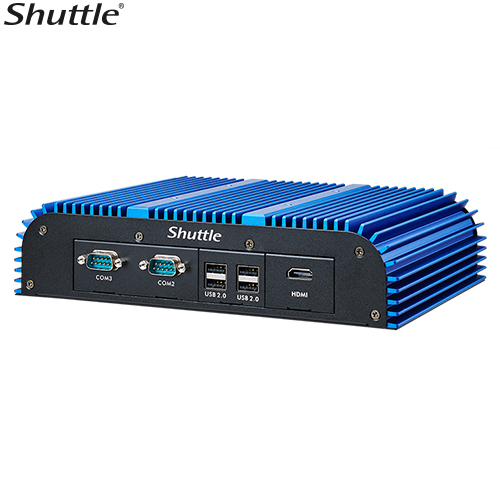

The Shuttle BPCWL02 Embedded Box PC is a compact, fan-less industrial computer designed for demanding automation and control applications. Featuring an Intel 8th Gen Whiskey Lake-U processor (Intel Core i3-8145UE), it delivers efficient dual-core performance with a base clock of 2.2 GHz and boost up to 3.9 GHz at only 15W TDP.
Constructed with a robust aluminum chassis for passive cooling, this barebone system supports up to 64 GB DDR4 memory across two SO-DIMM slots operating at speeds up to 2666 MHz, enabling smooth multitasking and reliable operation.
Connectivity is comprehensive with 2 x Intel Gigabit LAN ports for high-speed networking, plus 3 serial RS-232/422/485 ports tailored for industrial device integration. Video output supports dual HDMI 1.4b ports with up to 4K (4096 x 2160 @ 30 Hz) resolution, expandable to three displays. Additionally, it offers 4 USB 3.2 Gen 1 and 4 USB 2.0 ports, along with audio in/out for flexible multimedia uses.
Storage versatility comes from a single M.2 2280 slot compatible with PCIe NVMe or SATA SSDs for fast data access. Power input is managed through a 19V/4.74A (90W) external adapter, with optional wide-range DC 9-36V input for diverse deployment environments.
Mounting options include VESA 75 x 75 mm, ear mount, and DIN rail support allowing versatile installation in tight spaces. Supported operating systems include Windows 10/11 Embedded and Linux 64-bit, making it ideal for embedded applications requiring reliability and industrial-grade interfaces.
Overall, the Shuttle BPCWL02 combines industrial durability, scalable expansion, and silent operation, perfect for factory automation, IoT gateways, and embedded control systems.
| Chassis | Fan-less robust aluminum |
| Serial Ports | 1 x RS-232 DB-9,RS-232/422/485 DB-9 |
| Ethernet | Intel Gigabit LAN (10\/100\/1000 Mbps) |
| Max Display Resolution | 4096 x 2160 @ 30Hz |
| Graphics Output | HDMI 1.4b |
| Maximum Memory Speed | 2666 MHz |
| Processor Generation | 8th Gen Whiskey Lake-U |
| aio_form_factor | Embedded Box PC (fan-less) |
| Dimensions (WxHxD) | 245 x 57 x 169 mm |
| Mounting Options | VESA 75 x 75 mm,Ear mount 256 x 100 mm,DIN rail |
| dimensions_mm_h | 57 |
| Weight (g) | 2850 |
| dimensions_mm_w | 245 |
| dimensions_mm_l | 169 |
| Weight | 2.85 kg |
| Operating System Support | Windows 10/11 Embedded 64-bit,Linux 64-bit |
| Power Adapter | 19 V \/ 4.74 A (90 W) external |
| Audio | Realtek ALC662,1 x Line-out,1 x Mic-in |
| USB Ports | 4 x USB 3.2 Gen 1 Type-A,4 x USB 2.0 |
| Processor TDP | 15 W |
| memory_type | DDR4 SO-DIMM |
| Base Clock Speed | 2.2 GHz |
| Boost Clock Speed | 3.9 GHz |
| Cores | 2 |
| Processor Model | Intel Core i3-8145UE |
| LAN Speed Support | 10\/100\/1000 Mbps |
| Storage Interface | 1 x M.2 2280 M key (PCIe NVMe \/ SATA) |
| storage_capacity_gb | 0 |
| Storage Type | M.2 2280 (PCIe NVMe \/ SATA) slot (no preinstalled storage) |
| Memory Slots | 260-pin SO-DIMM |
| Maximum Memory Capacity | 64 GB |
| Model | BPCWL02 Embedded Box PC Barebone |
| Product Type | Embedded Box PC Barebone |
| Model Number | BPCWL02 |
