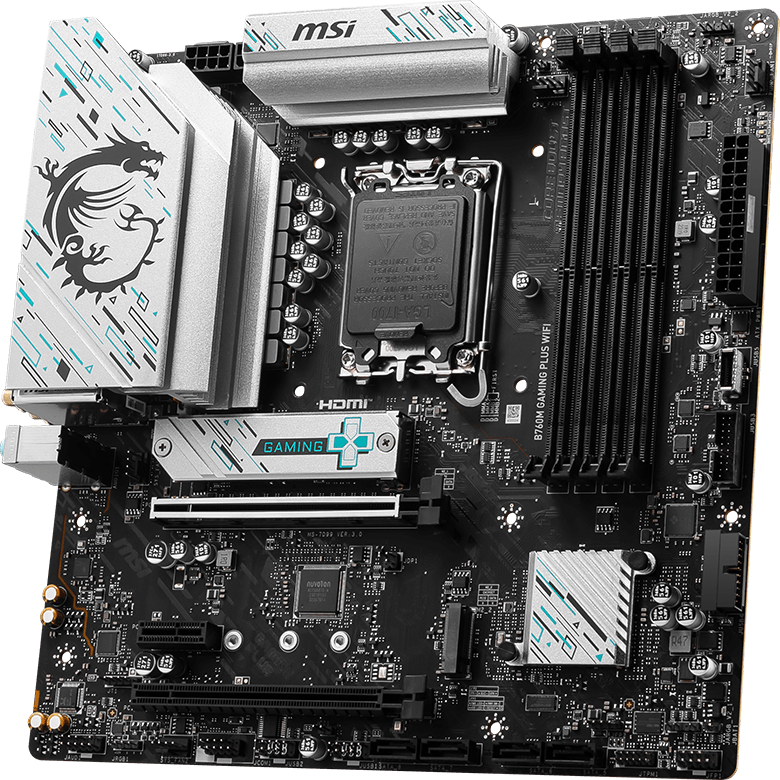

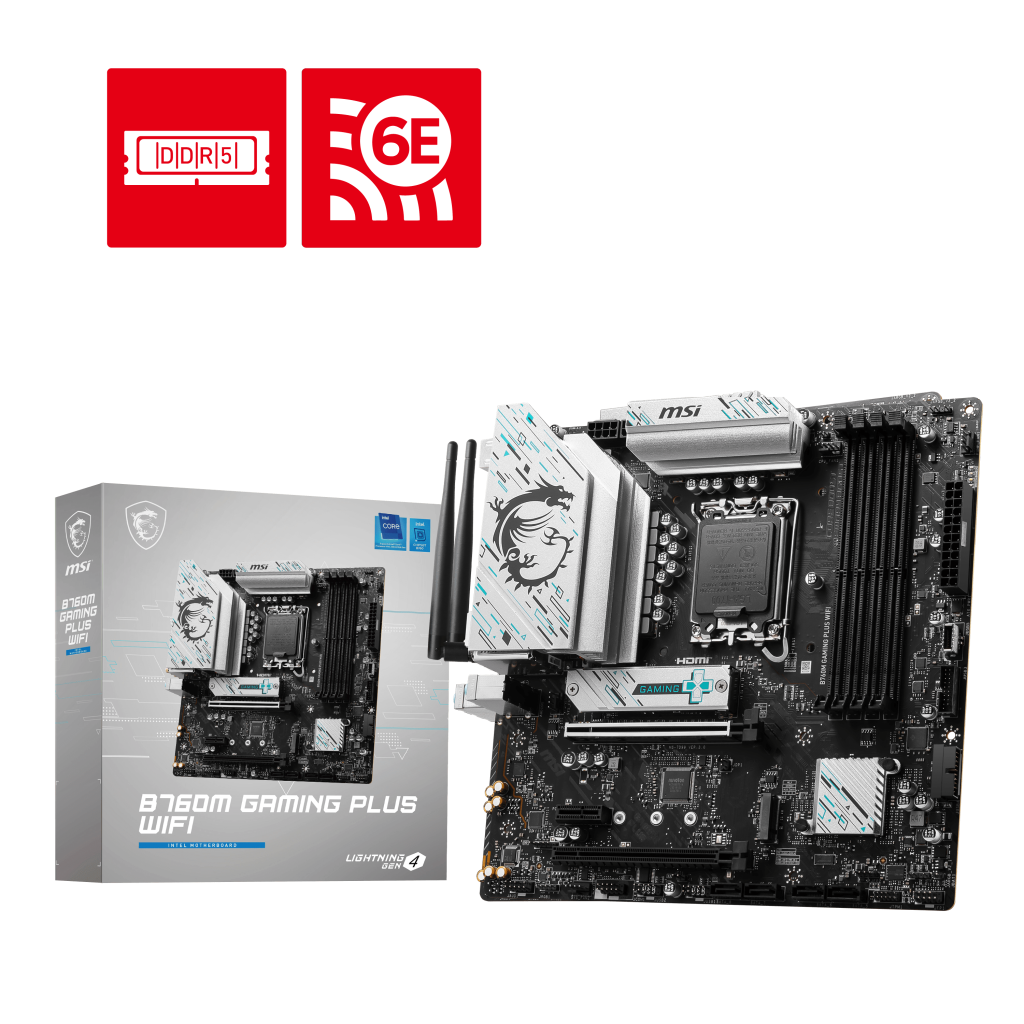

The MSI B760M GAMING PLUS WIFI is a premium mATX motherboard engineered for Intel LGA 1700 socket, supporting 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors. It features advanced power delivery with a 12+1 Duet Rail design and P-PAK technology combined with Core Boost and Memory Boost for optimal CPU and memory performance. Equipped with 4 DDR5 DIMM slots, it supports DDR5 memory speeds up to 6800+ MHz (OC) for a maximum memory capacity of 192GB. For storage and expansion, it offers 2 M.2 slots (with Lightning Gen4 x4 support and M.2 Shield Frozr for thermal performance) and 4 SATA 6Gb/s ports, plus PCIe expansion slots for GPU and add-in cards (primary PCIe 4.0 x16). Connectivity features integrated Intel Wi‑Fi 6E (AX211), Bluetooth, and Realtek RTL8125BG 2.5Gbps LAN. Rear I/O includes USB 3.2 Gen2 Type-A and Type-C ports, USB 2.0 ports, and video outputs (HDMI and DisplayPort) for integrated graphics support. Audio uses the Realtek ALC897 codec with MSI Audio Boost for 7.1-channel HD sound. The board is built on a 6-layer PCB with 2oz thickened copper and includes enhanced thermal solutions such as extended heatsinks and MOSFET thermal pads. Ideal for gamers and professionals in a compact mATX form factor; warranty: 3 years (MSI official).
