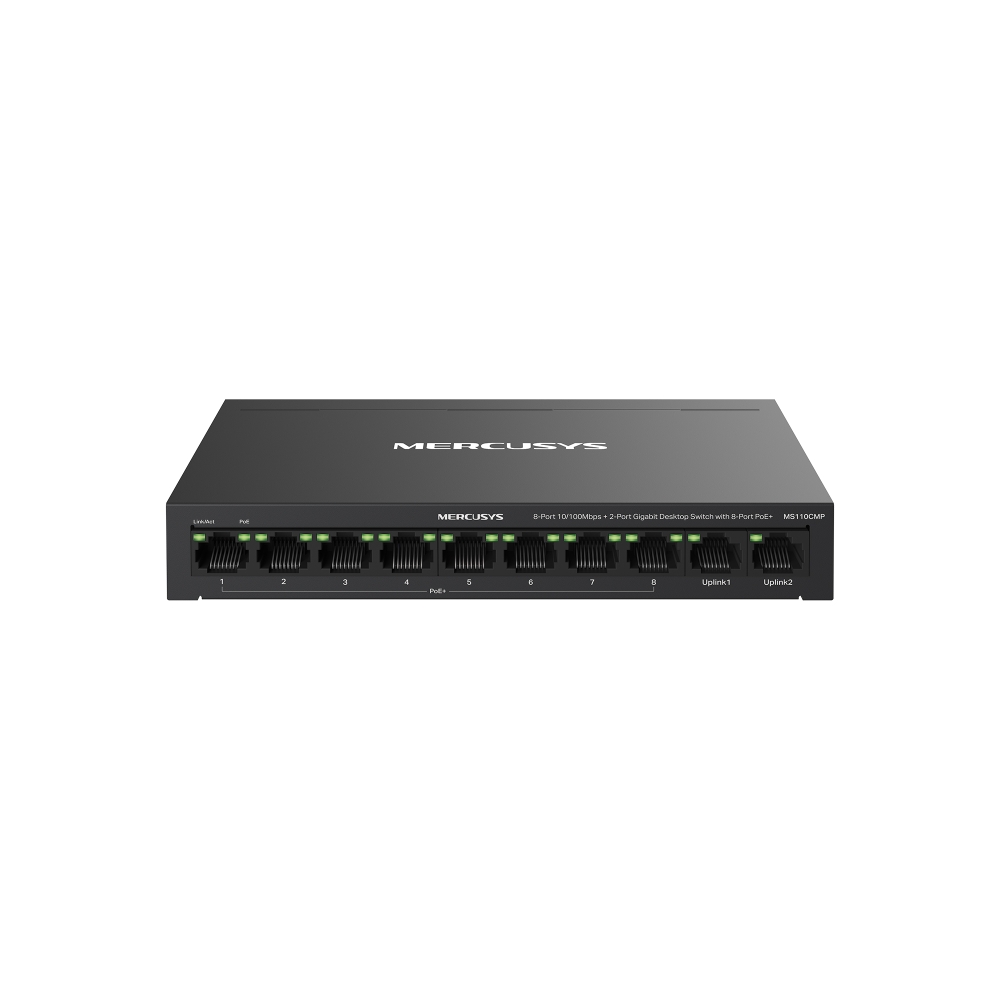

The Mercusys MS110CMP is a robust unmanaged desktop switch designed for small to medium business networks, especially IP surveillance and PoE deployments. Featuring 10 ports including 8× 10/100 Mbps PoE+ ports and 2× Gigabit non-PoE uplink ports, this switch offers both data and power delivery over a single cable with a substantial 115 W total PoE power budget and up to 30 W per PoE port.

Key functionalities like Extend Mode enhance PoE transmission distance up to 250 meters (at 10 Mbps), while Isolation Mode allows one-click segmentation of traffic for improved network stability and security, enabling dual uplink usage (Internet and NVR). The switch also supports PoE Auto Recovery, automatically rebooting unresponsive PoE powered devices to ensure continuous operation without manual intervention.

The MS110CMP offers plug-and-play convenience with auto-negotiation and Auto MDI/MDIX, requires no configuration, and is housed in a durable metal casing that ensures efficient heat dissipation in a silent, fanless design. Installation is flexible with desktop or wall-mount options.

Additional technical features include support for IEEE 802.3af/at powered devices, jumbo frames up to 2 KB, and a MAC address table capacity of 2K entries. Operating temperature ranges from 0℃ to 40℃, ensuring reliable performance in various environments.

With a 5-year warranty, external power adapter (53.5 V / 1.31 A), and ease of deployment, the Mercusys MS110CMP is an excellent switch solution for efficient, high-power PoE networks.
