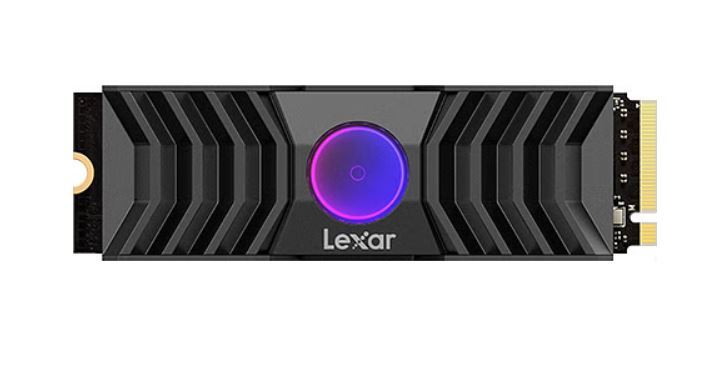

Lexar Professional NM1090 1TB PCIe Gen5 x4 M.2 2280 NVMe SSD with RGB Fan Heatsink - Up to 11,500MB/s Read, 9,000MB/s Write
โ˜… 0.0 Rating (0 user feedback)

SKU: lnm1090001t-rnang

Availability: Out of Stock

Brand: Lexar

Category: Solid State Drives (SSD)

$262.90


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The Lexar Professional NM1090 is a cutting-edge PCIe 5.0 NVMe M.2 2280 SSD designed for gamers and creative professionals demanding ultra-high-speed storage. Offering blazing sequential read speeds up to 11,500MB/s and write speeds up to 9,000MB/s for the 1TB model, it delivers exceptional performance that is twice as fast as PCIe 4.0 SSDs.

This SSD features a DRAM-based architecture with SLC dynamic cache, which enhances sustained performance and lowers latency, making it ideal for intensive workloads and gaming. Its active cooling solution includes a unique heatsink equipped with a heat-blasting fan and programmable RGB lighting, ensuring optimal thermal management during heavy usage to maintain peak performance and extend the driveโ€™s lifespan.

Supporting Microsoft DirectStorage, the NM1090 improves game load times and responsiveness for next-gen gaming. It also offers robust reliability with a Mean Time Between Failures (MTBF) of 1,500,000 hours and a total bytes written (TBW) endurance rating of 700 TBW for the 1TB variant. The drive is compatible with modern Intel 13th/14th Gen and AMD Ryzen 7000 platforms.

With a sleek form factor measuring 80 x 24 x 17.35mm and a weight of just 72.5g including the heatsink, this SSD combines extraordinary speed, advanced cooling, and futuristic RGB aesthetics into a single elite storage solution backed by a five-year limited warranty.

Key Benefits:

  • M.2 2280 PCIe Gen5 x4 NVMe interface
  • Up to 11,500MB/s sequential read & 9,000MB/s sequential write
  • DRAM-based design with SLC dynamic cache for low latency
  • Active heatsink with fan and customizable RGB lighting
  • Supports Microsoft DirectStorage for optimized gaming
  • High endurance with 700 TBW and 1.5 million hour MTBF
  • Comprehensive thermal and shock resistance ratings
  • 5-year limited warranty
Upgrade your system with the Lexar NM1090 for next-level storage performance, enhanced cooling, and striking RGB illumination.

Environment

storage_temperature_c-40\u00b0C to 85\u00b0C
operating_temperature_c0\u00b0C to 70\u00b0C

Classification

Drive TypeInternal SSD PCIe NVMe

Physical

weight_grams72.5
Heatsink TypeActive heatsink with fan and programmable RGB lighting
Form FactorM.2 2280
Form FactorM.2 2280
Storage Temperature-40\u00b0C to 85\u00b0C (-40\u00b0F to 185\u00b0F)
Dimensions (L x W x H)80 x 24 x 17.35 mm
Weight72.5g
Cooling SolutionActive heatsink with fan and programmable RGB lighting

Durability

Endurance (TBW)700

Identification

Part NumberLNM1090001T-RNANG

Technical

FeaturesDRAM-based cache, SLC dynamic cache, RGB FAN Heatsink, Active cooling
capacity_gb1000
InterfacePCIe Gen5 x4 NVMe
NAND Type3D TLC
Capacity1TB

Warranty

Warranty (years)5

Reliability

mtbf_hours1500000

Performance

sequential_write_mbs9000
Random 4K Read IOPS1300000
Random 4K Write IOPS1400000
Random IOPS1300000
Sequential Read SpeedUp to 11,500 MB/s
Sequential Write SpeedUp to 9,000 MB/s
Random Read IOPSUp to 1,300,000
Random Write IOPSUp to 1,400,000

General

sequential_read_mbs11500
Cache TypeDRAM-based with SLC dynamic cache
Shock Resistance1500G,0.5ms,Half Sine Wave
Vibration Resistance10-2000 Hz,1.5mm,20G,1 Oct/min,30min/axis
TBW700 TBW
MTBF1,500,000 hours

Environmental

Operating Temperature0\u00b0C to 70\u00b0C (32\u00b0F to 158\u00b0F)

Support

WarrantyFive-year limited warranty
