The LENOVO ThinkSystem SR650 V3 is a high-performance 2U rackmount server designed for demanding enterprise workloads including virtualization, databases, HPC, and web services. Powered by the Intel Xeon Silver 4514Y 16-core processor with a base clock speed of 2.0 GHz (boost up to 3.4 GHz) and a thermal design power (TDP) of 150W, this server delivers robust compute capabilities with 32 threads and 30MB cache.

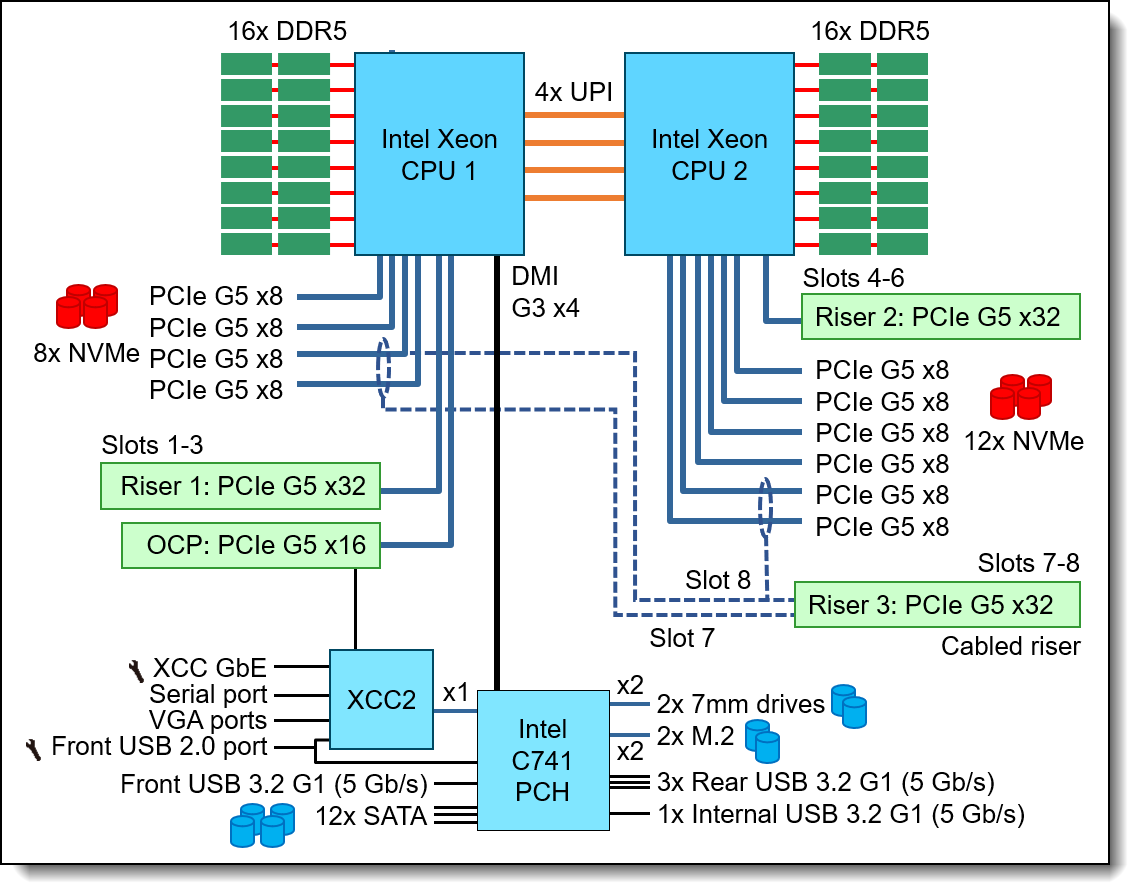

Key features include support for one or two 4th- or 5th-generation Intel Xeon Scalable processors on the FCLGA4677 socket, enabling flexibility and scalability to meet growing workload demands. The server supports Lenovo TruDDR5 memory modules with up to 32 DIMMs in dual-processor configurations offering high memory bandwidth and capacity.

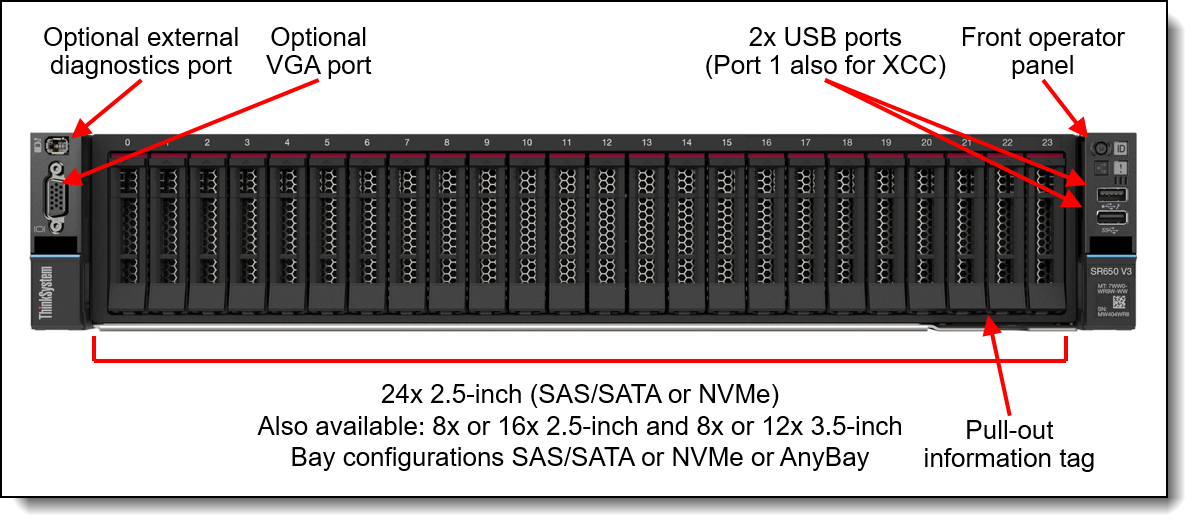

Storage capabilities are highly adaptable, with multiple front, mid, and rear drive bays supporting both 2.5" and 3.5" form factors, NVMe drive configurations up to 36 in select builds, and advanced RAID options via the ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 adapter.
The SR650 V3 excels in expansion options, featuring PCIe Gen5/Gen4 slots that accommodate up to eight single-width or three double-width GPUs, making this system optimal for GPU-intensive workloads.
Enterprise-ready RAS (Reliability, Availability, and Serviceability) features including error correction technologies (SDDC/Chipkill, ADDDC), memory mirroring, and hot-swappable fans, drives, and power supplies ensure high uptime and data integrity. Security options such as TPM 2.0 and Platform Firmware Resiliency enhance platform security.
Additional benefits include Lenovo Neptune open-loop direct-water cooling support for efficient thermal management in sophisticated data centers and redundant 750W 80 PLUS Platinum hot-swap power supplies for energy-efficient, reliable power delivery.
Ideal for enterprises seeking a versatile, scalable, and reliable rack server optimized for modern workloads, the Lenovo ThinkSystem SR650 V3 with Xeon Silver 4514Y processor offers a robust foundation for business-critical applications.
| Processor Threads | 32 Threads |
| Processor TDP | 150 W |
| processor_socket | FCLGA4677 |
| Base Clock Speed | 2.0 GHz |
| Processor Cores | 16 Cores |
| Processor Model | Intel Xeon Silver 4514Y |
| Processor Model | Intel Xeon Silver 4514Y |
| processor_socket | FCLGA4677 |
| max_boost_clock_ghz | 3.4 |
| processor_tdp_w | 150 |
| base_clock_speed_ghz | 2 |
| Processor Threads | 32 |
| Processor Cores | 16 |
| Power Supply | Redundant 750W 80 PLUS Platinum Hot-Swap |
| power_supply_w | 750 |
| Security Features | TPM 2.0,Platform Firmware Resiliency |
| Security Features | TPM 2.0,Platform Firmware Resiliency |
| RAID Controller | ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 |
| RAID Controller | ThinkSystem RAID 940-16i 4GB Flash PCIe Gen4 |
| Form Factor | 2U Rackmount Server |
| Form Factor | 2U Rackmount Server |
| PCIe Slots | PCIe Gen5\/Gen4 Expansion |
| PCIe Expansion Slots | PCIe Gen5\/Gen4 Expansion |
| Max NVMe Drives | Up to 36 NVMe drives (in select configurations) |
| Supported Memory Modules | Lenovo TruDDR5 RDIMM and 3DS RDIMM |
| Max Memory Slots | Up to 32 DIMMs (16 per processor) |
| Max Boost Clock Speed | 3.4 GHz |
| Max Memory Slots | 32 |
| Supported Memory Type | DDR5 |
| Memory Channels | 8 channels per CPU |
| Memory Slots | 32 |
| Supported Memory Type | DDR5 |
| Processor Turbo Enabled | 1 |
| Storage Support | Up to 36 NVMe drives (in select configurations) |
