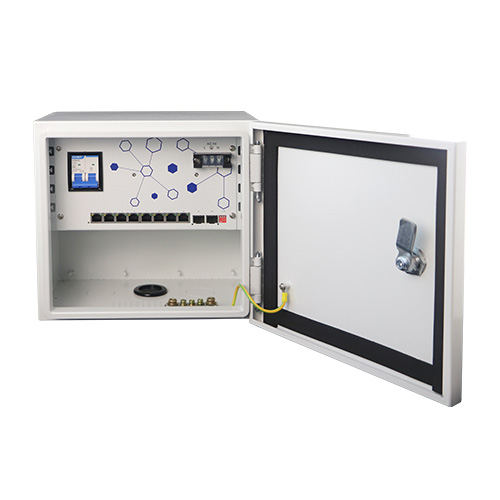

LDR Outdoor PoE Switch RCLDR-OD-QB2082SPG is a rugged, weatherproof networking solution designed for outdoor applications such as surveillance, forest monitoring, and remote surveillance systems. Encased in an IP55-rated waterproof and anti-rust treated enclosure, this hub integrates a powerful 8-port PoE switch with 2 gigabit SFP uplink ports to ensure reliable, high-speed data transmission even in harsh environments.

• Power & Protection: The unit accepts AC220V mains input with an internal 120W DC52V power supply module. Each PoE port can deliver up to 30W, with a total PoE power budget of 115W. Comprehensive protection features include an internal air breaker with a 10A rated current, 2P AC220V 20KA surge protective device, and PoE ports protected against 6kV surge as well as 6kV contact and 8kV air ESD.
• Networking & Features: It offers 8 x 10/100/1000M PoE downlink ports and 2 x 1000M SFP uplink ports for flexible connectivity. The switch supports three VLAN modes allowing adaptation to complex network environments. A unique PoE Auto-check function detects and restarts frozen PD devices automatically, minimizing maintenance effort and network downtime.
• Durability & Installation: Constructed with anti-rust treatment and rated for outdoor use, the box comes with a built-in fan and supports a mounting load capacity of up to 70 kg. Compact dimensions of 260mm (H) x 280mm (W) x 220mm (D) and net weight of approximately 8 kg ensure ease of installation in various locations.
