SKU: n506t2-16d7-191073n
Availability: In Stock
Brand: INNO3D
Category: Graphics Cards
100% Guarantee Safe Checkout

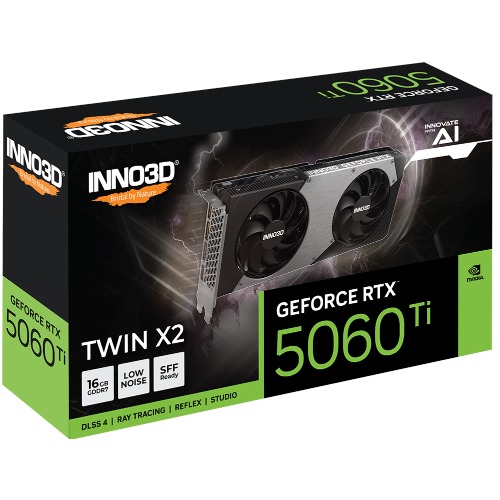

The INNO3D GeForce RTX™ 5060 Ti TWIN X2 OC 16GB is a compact, high-performance graphics card built on NVIDIA's Blackwell architecture. It features 4608 CUDA cores, a boost clock of 2602 MHz, and 16GB of GDDR7 memory running at 28 Gbps on a 128-bit bus (448 GB/s). The TWIN X2 OC cooling design includes dual 88mm detachable fans, composite heatpipes, and a multifunctional backplate for improved thermal performance and durability. Connectivity includes 3x DisplayPort 2.1b and 1x HDMI 2.1b for multi-monitor setups. The card supports real-time ray tracing (4th gen RT cores), AI features like NVIDIA DLSS 4 and Reflex, and PCIe Gen5 (PCIe 5.0 x16). Recommended system power is 650W. Note: Confirm model suffix (OC) and power connector type with manufacturer prior to listing to ensure variant accuracy.
| Ray Tracing Support | 4th Generation RT Cores |
| Recommended System Power | 650 W |
| Card Dimensions (LxHxW) | 250mm x 116mm x 41mm |
| PCI Express Version | Gen 5 (PCIe 5.0 x16) |
| Power Connector | 1x PCIe 8-pin |
| Memory Interface Width | 128-bit |
| Boost Clock | 2602 MHz |
| Tensor Cores | 5th Generation |
| Maximum Resolution | 4K at 480Hz; 8K at 165Hz with DSC |
| memory_type | GDDR7 |
| Base Clock | 2235 MHz |
| CUDA Cores | 4608 |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 |
| Tensor Cores | 5th Generation |
| max_resolution | 4K at 480Hz; 8K at 165Hz with DSC |
| memory_type | GDDR7 |
| RT Cores | 4th Generation RT Cores |
| GPU Architecture | NVIDIA Blackwell |
| Cooling | 88mm fans,composite heatpipes,multifunctional backplate |
| Cooling Solution | 88mm fans,composite heatpipes,multifunctional backplate |
| dimensions_lxwxh_mm | 250mm x 116mm x 41mm |
| Dimensions (mm) | 250mm x 116mm x 41mm |
| Display Outputs | 3x DisplayPort 2.1b,1x HDMI 2.1b |
| Memory Bandwidth | 448 GB\/s |
| Memory Speed | 28 Gbps |
| Memory Capacity | 16 GB |
| memory_clock_speed_gbps | 28 |
| memory_bandwidth_gb_per_s | 448 |
| memory_bus_width_bits | 128 |
| memory_size_gb | 16 |
| recommended_psu_watts | 650 |
| Max Displays Supported | 4 |
| interface_pcie_lanes | x16 |
| interface_pcie_version | Gen 5 (PCIe 5.0 x16) |
| Model | RTX 5060 Ti TWIN X2 |
