SKU: n506t2-08d7x-193075n
Availability: In Stock
Brand: INNO3D
Category: Graphics Cards
100% Guarantee Safe Checkout

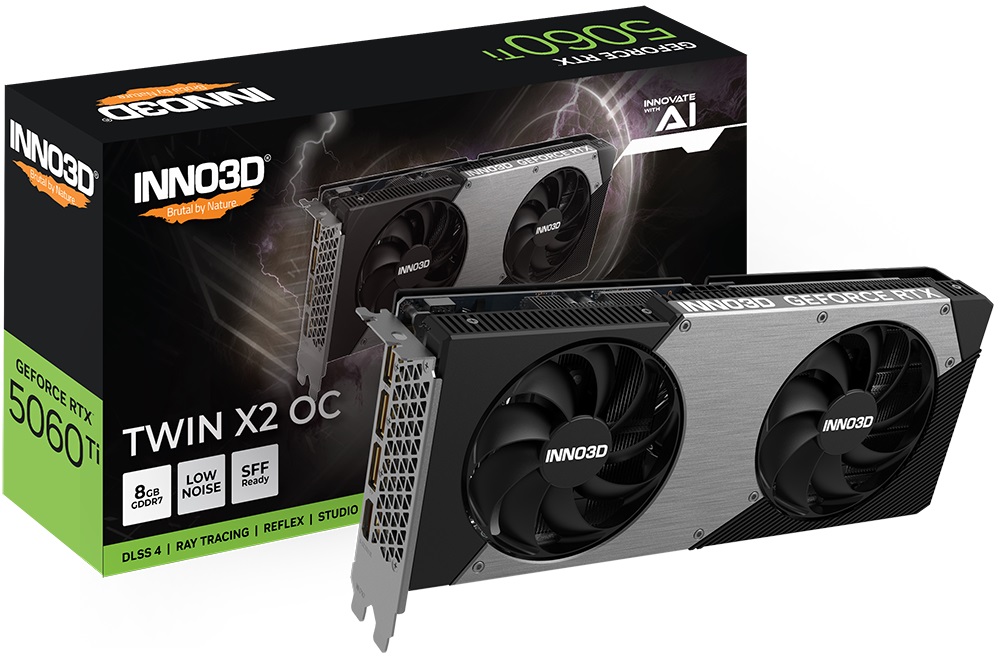

The INNO3D GeForce RTX™ 5060 Ti TWIN X2 OC 8GB is a high-performance, compact dual-slot graphics card designed for gamers and creative professionals seeking powerful capabilities in small form-factor builds. Featuring NVIDIA's latest Blackwell architecture, this GPU incorporates 4,608 CUDA cores and an overclocked boost clock up to 2602MHz for smooth and fast rendering.
Equipped with 8GB of next-generation GDDR7 memory operating at an ultra-fast 28Gbps via a 128-bit memory interface, it delivers a wide bandwidth of 448 GB/s, ensuring rapid data access and superior gaming performance. The dual 88mm TWIN X2 cooling system with scythe-style fans and a robust heatsink featuring copper base and heatpipes efficiently dissipates heat while maintaining low noise levels.
This card supports advanced NVIDIA technologies including real-time ray tracing (4th-gen RT cores), DLSS 4 AI acceleration, and NVIDIA Reflex 2 to enhance gaming visuals and responsiveness. Connectivity options include 3x DisplayPort 2.1b and 1x HDMI 2.1b, enabling multiple high-resolution 4K or 8K displays with high refresh rates up to 480Hz.
Additional features:
Recommended system power supply: Minimum 650W with a single 8-pin PCIe power connector.
| Display Outputs | 3x DisplayPort 2.1b,1x HDMI 2.1b |
| Form Factor | slot |
| dimensions_lxwxh_mm | 250 x 116 x 41 |
| Form Factor | slot |
| Dimensions (mm) | 250 x 41 x 116 |
| Cooling Solution | slot |
| Dimensions (LxHxW) | 250mm x 116mm x 41mm |
| Max Digital Resolution | 4K @ 480Hz or 8K @ 165Hz with DSC |
| Min System Power | 650 W |
| PCIe Interface | PCI Express Gen 5 |
| Power Connector | 1x 8-pin PCIe |
| Memory Interface Width | 128-bit |
| Boost Clock | 2602 MHz |
| Ray Tracing Cores | 4th Generation |
| Memory Bandwidth | 448 GB\/s |
| Memory Speed | 28 Gbps |
| Memory Capacity | 8 GB |
| memory_clock_speed_gbps | 28 |
| memory_bandwidth_gb_per_s | 448 |
| memory_bus_width_bits | 128 |
| memory_size_gb | 8 |
| Tensor Cores | 5th Generation |
| memory_type | GDDR7 |
| Base Clock | 2235 MHz |
| CUDA Cores | 4608 |
| max_resolution | 4K @ 480Hz or 8K @ 165Hz with DSC |
| memory_type | GDDR7 |
| Tensor Cores | 5th Generation |
| RT Cores | 4th Generation |
| CUDA Cores | 4608 |
| recommended_psu_watts | 650 |
| Max Displays Supported | 4 |
| interface_pcie_version | Gen 5 |
| Model | GeForce RTX 5060 Ti TWIN X2 OC |
