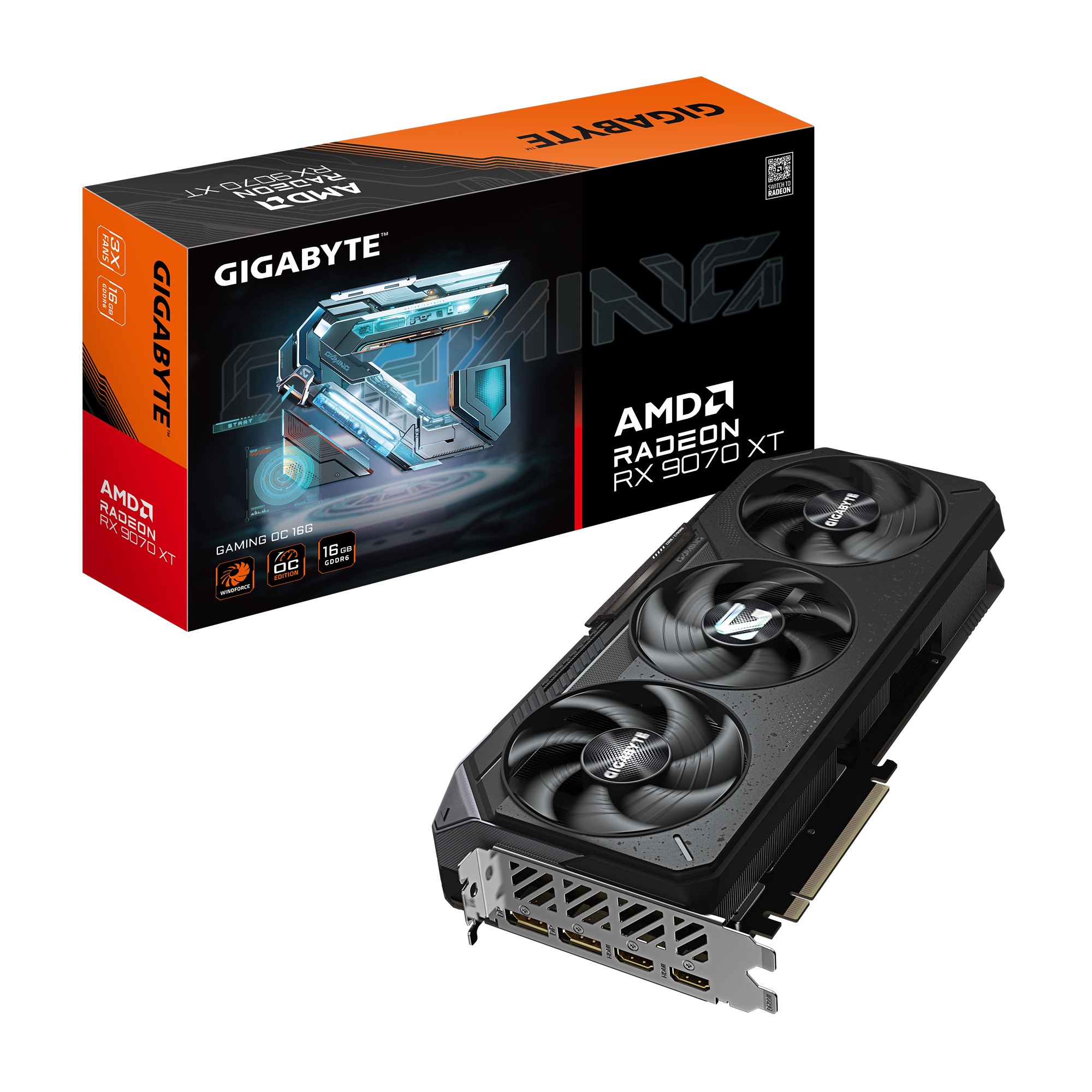

GIGABYTE Radeon RX 9070 XT GAMING OC 16GB GDDR6 20Gbps 256-bit PCIe 5.0 GPU with WINDFORCE Cooling, Dual BIOS, DisplayPort 2.1a & HDMI 2.1b Outputs
★ 0.0 Rating (0 user feedback)

SKU: gv-r9070xtgaming oc-16gd

Availability: In Stock

Brand: Gigabyte

Category: Graphics Cards

$1,288.98


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The GIGABYTE Radeon™ RX 9070 XT GAMING OC 16G is a high-performance factory-overclocked graphics card designed for immersive 4K and high-refresh gaming. Powered by AMD’s Radeon RX 9070 XT GPU, it offers a boost clock of up to 3060 MHz and a game clock of up to 2520 MHz for smooth gameplay and efficient power delivery. Built with 16GB of GDDR6 memory on a 256-bit interface, it delivers blazing 20 Gbps memory speeds via PCIe 5.0, ensuring rapid data throughput and future-proof compatibility.

The card utilizes GIGABYTE’s advanced WINDFORCE cooling system, integrating Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, and server-grade thermal conductive gel for optimal heat dissipation and silent operation during low loads. Its robust reinforced metal backplate and futuristic mech warrior-inspired multi-layered armor-like exterior protect the hardware while enhancing aesthetics.

For connectivity, the RX 9070 XT GAMING OC includes two DisplayPort 2.1a and two HDMI 2.1b ports, supporting ultra-high resolutions up to 8K (7680x4320). The card features dual BIOS options (Performance/Silent) for flexible tuning, RGB lighting with 16.7 million color options customizable through GIGABYTE Control Center, and a sliding side plate to personalize the build.

Recommended for users with an 850W PSU and equipped with three 8-pin PCIe power connectors, this graphics card is ideal for enthusiast gamers, content creators, and professionals demanding top-tier graphics performance and thermal reliability in modern gaming and multimedia workflows.

Aesthetics

RGB Lighting16.7 million customizable colors

Physical

dimensions_lxwxh_mm288\u00d7132\u00d756
Form FactorATX PCB
Cooling SolutionWINDFORCE cooling system with Hawk fans,thermal conductive gel,copper heat pipes,vapor chamber
Cooling SolutionWINDFORCE cooling system with Hawk fans,thermal conductive gel,copper heat pipes,vapor chamber
Form FactorATX PCB
Dimensions (mm)288\u00d7132\u00d756

Identification

Part NumberGV-R9070XTGAMING OC-16GD
ModelRadeon RX 9070 XT GAMING OC 16G

General

Dual BIOSPerformance \/ Silent modes
OpenGL Support4.6
Card Dimensions (L×W×H)288 \u00d7 132 \u00d7 56 mm
DirectX Support12 API
Max Digital Resolution7680 \u00d7 4320
Recommended PSU Wattage850W
pci_expressPCIe 5.0 x16
Stream Processors4096
Game ClockUp to 2520 MHz
Boost ClockUp to 3060 MHz
GPU ModelRadeon RX 9070 XT (GIGABYTE GAMING OC)

Video

Display Outputs2 × DisplayPort 2.1a,2 × HDMI 2.1b

Power

Power Connectors3 \u00d7 8-pin PCIe
recommended_psu_watts850

Memory

Memory Speed20 Gbps
Memory Bus Width256 bit
Memory Size16 GB
memory_clock_speed_gbps20
memory_bandwidth_gb_per_s320
memory_bus_width_bits256
memory_size_gb16

Technical

memory_typeGDDR6
max_resolution7680\u00d74320
memory_typeGDDR6
CUDA Cores4096

Output

Max Displays Supported4

Interface

interface_pcie_lanesx16
interface_pcie_versionPCIe 5.0
