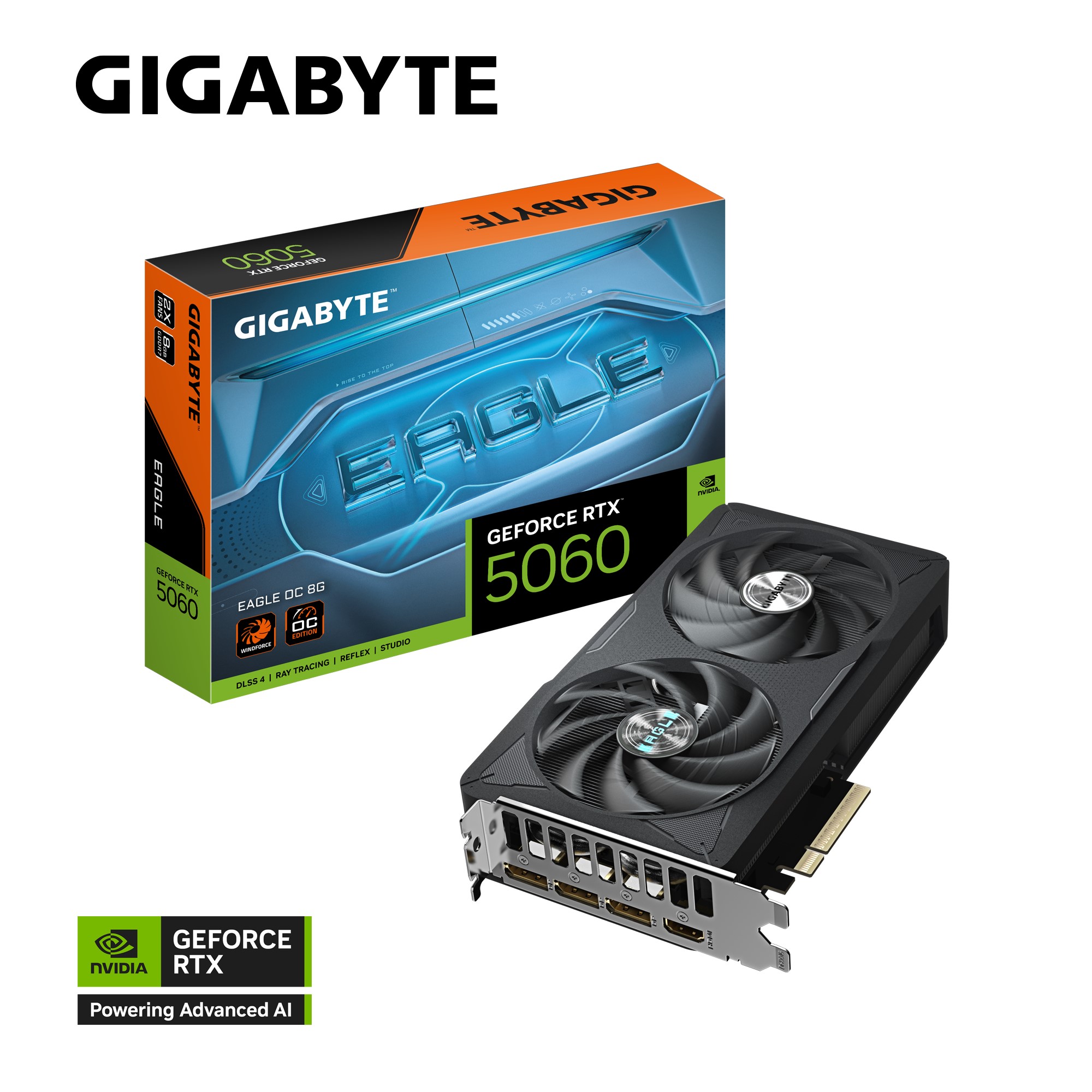

GIGABYTE GeForce RTX 5060 EAGLE OC 8G Gaming Graphics Card - 2550 MHz OC, 8GB GDDR7 28 Gbps, PCIe 5.0, DisplayPort 2.1b x3, HDMI 2.1b
★ 0.0 Rating (0 user feedback)

SKU: gv-n5060eagle oc-8gd

Availability: In Stock

Brand: Gigabyte

Category: Graphics Cards

$635.58


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The GIGABYTE GeForce RTX 5060 EAGLE OC 8G is a high-performance factory-overclocked GPU designed for gamers and creators seeking cutting-edge graphics capabilities. Powered by NVIDIA's latest Blackwell architecture, this graphics card boasts 3840 CUDA cores and an impressive boost clock of 2550 MHz, delivering smooth and immersive gameplay at high resolutions.

Featuring 8GB of ultra-fast GDDR7 memory running at 28 Gbps over a 128-bit bus, the RTX 5060 EAGLE OC ensures rapid data processing and vibrant visual fidelity. The card is equipped with a PCIe 5.0 x16 interface for maximum bandwidth and compatibility with the latest motherboards.

The advanced WINDFORCE cooling system includes dual Hawk fans, server-grade thermal conductive gel, composite copper heat pipes, and a copper plate, combined with 3D active fan technology for efficient heat dissipation and quiet operation. The reinforced backplate provides enhanced structural durability, while the aerospace and sci-fi inspired design delivers a sleek, futuristic aesthetic with dynamic pulsating lighting effects.

Connectivity options include three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to 7680x4320 resolution and 4 simultaneous displays. The card requires a single 8-pin power connector and recommends a 450W system PSU.

Additional NVIDIA features supported include DLSS 4 with Multi Frame Generation, Reflex 2 latency optimization, NVIDIA Studio tools, NVIDIA Broadcast, and ninth-generation NVENC encoder for content creators.

This graphics card is ideal for gamers looking to experience the latest AAA titles with ray tracing and AI-enhanced graphics, as well as creators seeking accelerated workflows.

Power

Recommended PSU450W
recommended_psu_watts450

General

NVIDIA ArchitectureBlackwell
Card Dimensions (LxWxH)208 mm x 120 mm x 40 mm
DirectX SupportDirectX 12 Ultimate
OpenGL SupportOpenGL 4.6
Cooling SystemWINDFORCE with Hawk Fans,Thermal Gel,Copper Heat Pipes
Power Connector1x 8-pin
OutputsDisplayPort 2.1b x3,HDMI 2.1b x1
Memory Interface128-bit
GPU ModelNVIDIA GeForce RTX 5060
Boost Clock2550 MHz (Factory Overclocked)

Physical

Form FactorATX
Cooling SolutionWINDFORCE with Hawk Fans,Thermal Gel,Copper Heat Pipes
Dimensions (mm)208 x 120 x 40
dimensions_lxwxh_mm208 x 120 x 40
Form FactorATX

Technical

Maximum Resolution7680x4320
InterfacePCIe 5.0 x16
CUDA Cores3840
memory_typeGDDR7
max_resolution7680x4320
memory_typeGDDR7
GPU ArchitectureBlackwell
CUDA Cores3840

Memory

Memory Speed28 Gbps
Memory Size8 GB
memory_clock_speed_gbps28
memory_bandwidth_gb_per_s28
memory_bus_width_bits128
memory_size_gb8

Output

Max Displays Supported4

Software

Driver SupportDirectX 12 Ultimate,OpenGL 4.6

Interface

interface_pcie_lanesx16
interface_pcie_version5.0

Identification

ModelGeForce RTX 5060 EAGLE OC 8G
