DeepCool CH170 PLUS WH Vertical Micro-ATX Compact PC Case with High Airflow Mesh, Tempered Glass, USB 3.0, Gen2 Type-C & Flexible PSU Support
SKU: r-ch170-whngm0-g
Availability: In Stock
Brand: DeepCool
Category: PC Cases
$99.00
100% Guarantee Safe Checkout

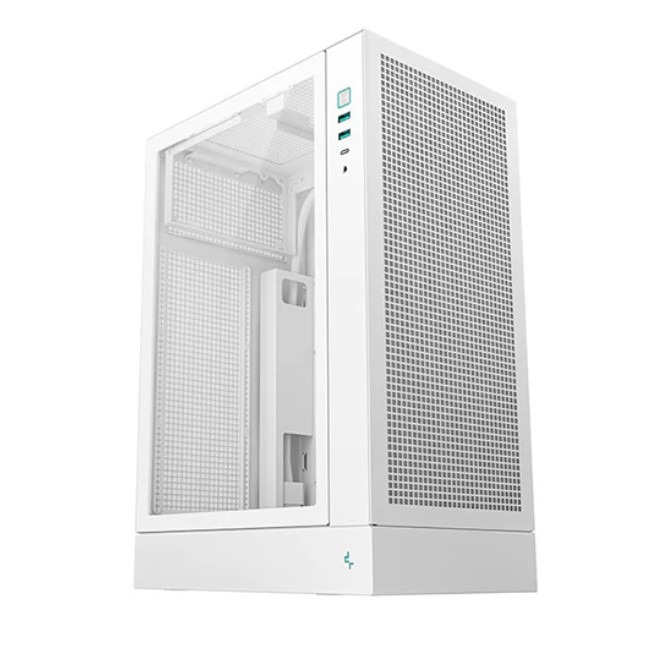

The DeepCool CH170 PLUS WH is a premium vertical Micro-ATX compact case engineered for enthusiasts seeking superior airflow and component versatility in a sleek, small footprint. Featuring expansive mesh panels on multiple sides, it delivers exceptional ventilation while the tempered glass side panel elegantly displays your internal hardware.
Designed to support GPU lengths up to 342mm (or 328mm with top fan installed), this case offers remarkable flexibility. It accommodates ATX, SFX, or SFX-L power supplies up to 140mm in length and supports CPU coolers up to 164mm tall. Radiator configurations include side mounts of 120/240mm and bottom mount of 120mm, perfect for custom liquid cooling setups.
Connectivity is future-ready with two USB 3.0 ports, one fast Gen2 Type-C port, and a combined audio/mic jack on the front I/O panel. Storage options include one 3.5" bay and two separate 2.5" drive positions, while four expansion slots enable a versatile build.
Fan placements enhance airflow further with support for 1×120/140mm top (with SFX PSU), 2×120mm side, and 1×120mm bottom fans. The inclusion of dust filters on four sides makes cleaning simple, preserving your system’s longevity.
Made from durable ABS, SPCC steel, and tempered glass, this lightweight 4.4 kg chassis measures compactly at 290 × 195 × 424.5 mm (L×W×H), maximizing desk space without compromising cooling or expandability.
Key Benefits:
- High-airflow vertical Micro-ATX design
- Robust support for large GPUs and flexible PSU sizes
- Multiple radiator and fan mounting options
- Tempered glass side panel for stylish builds
- Advanced front I/O featuring Gen2 Type-C
- Effective dust filtration on all intake points
Physical
| net_weight_kg | 4.4 |
| weight_kg | 4.4 |
| Weight | Approximately 4.4 kg |
| Form Factor | Micro-ATX Vertical Mid-Tower |
| Color | White |
| Panel Type | Tempered Glass |
| Material | ABS,SPCC Steel,Tempered Glass |
| Form Factor | Micro-ATX Vertical Mid-Tower |
Identifiers
| Model Number | R-CH170-WHNGM0-G |
| Model Number | R-CH170-WHNGM0-G |
Storage
| drive_bays | 1\u00d73.5\" and 2\u00d72.5 |
| drive_bays | 1\u00d73.5\" and 2\u00d72.5 |
Cooling
| Dust Filters | On all intake sides (4 sides) |
| Dust Filters | On all intake sides (4 sides) |
General
| Front I/O Ports | USB 3.0 ×2,Gen2 Type-C ×1,Audio/Mic ×1 |
| Expansion Slots | 4 |
| Fan Support | Top: 1×120/140 mm (with SFX PSU),Side: 2×120 mm,Bottom: 1×120 mm |
| PSU Compatibility | ATX,SFX,SFX-L (max length 140 mm) |
| CPU Cooler Max Height | 164 mm |
| GPU Max Length | 342 mm (328 mm with top fan installed) |
| Dimensions (L×W×H) | 290 \u00d7 195 \u00d7 424.5 mm |
| internal_storage_bays | 1\u00d73.5\" and 2\u00d72.5 |
Technical
| Radiator Support | Side: 120/240 mm,Bottom: 120 mm |
| radiator_support_mm | Side: 120\/240 mm; Bottom: 120 mm |
| max_gpu_length_mm | 342 |
| max_cpu_cooler_height_mm | 164 |
Compatibility
| Motherboard Support | Micro-ATX, Mini-ITX |
Appearance
| Panel Material | Tempered Glass |
