DeepCool CG580 4F Panoramic ATX Mid-Tower PC Case with 4 ARGB Fans & Support up to 2x 360mm Radiators, USB 3.0 & Type-C Front I/O
★ 0.0 Rating (0 user feedback)

SKU: r-cg580-bkada4-g-1

Availability: In Stock

Brand: DeepCool

Category: PC Cases

$189.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

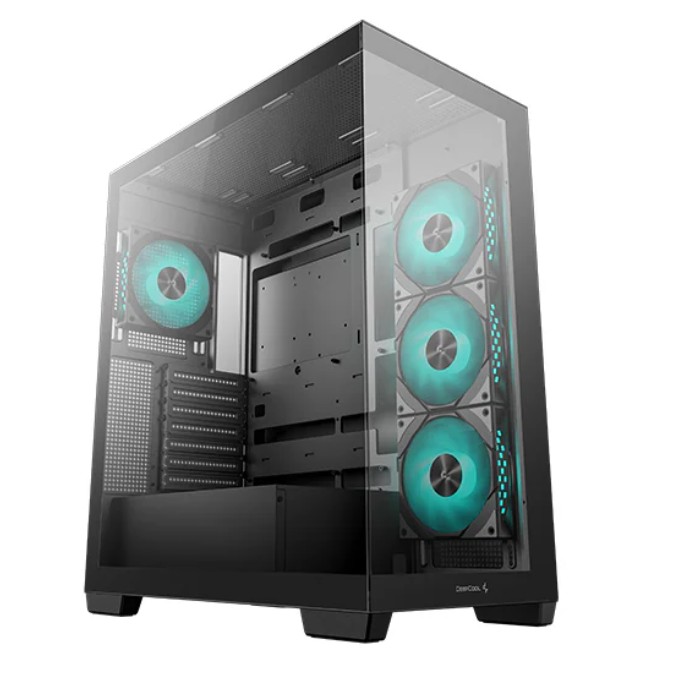

DeepCool CG580 4F is a sleek panoramic ATX mid-tower PC case designed for enthusiasts who want to showcase their build with unparalleled visibility and advanced cooling. Featuring a pillarless tempered glass front and side panel design, this case offers a stunning 270° unobstructed view of your components, highlighting your hardware in style.

The case is equipped with four pre-installed PWM ARGB fans — three 120mm reverse-flow fans on the side and one 120mm rear fan — ensuring optimal airflow and vivid customizable lighting effects. The spacious single-chamber internal layout features a dedicated PSU and HDD channel, streamlining cable management and maximizing cooling efficiency.

Flexibility is key with multiple radiator mounting options supporting up to 360mm radiators on the top, side, and bottom (model dependent), enabling powerful liquid cooling setups. The case supports a wide range of motherboards including ITX, Micro-ATX, and ATX, with 7 expansion slots for high-end components.

User-friendly features include front I/O ports with two USB 3.0 ports and one Gen2 Type-C port, plus audio and mic jacks for easy connectivity. Magnetic dust filters on the top and bottom allow quick cleaning, while approximately 45mm of cable routing space behind the motherboard tray keeps your build tidy.

Drive support includes two 3.5-inch and two 2.5-inch bays, catering to multiple storage configurations. The case supports GPU lengths up to 410mm (restricted to 262mm if side-mounted 360mm radiators are used) and CPU cooler heights up to 176mm, balancing compatibility with high-performance components.

Constructed from durable ABS, SGCC steel, and tempered glass, the DeepCool CG580 4F is both robust and visually striking — perfect for builders aiming for a premium panoramic showcase with excellent cooling and expandability.

General

CPU Cooler Max Height176 mm
Power Supply Type & Max LengthATX PS2,max length 210 mm
Front I/O Ports2 × USB 3.0,1 × Gen2 Type-C,1 × Audio/Mic combo
Fan SupportTop: 3 × 120mm or 2 × 140mm,Side: 3 × 120mm,Rear: 1 × 120mm,Bottom: 1 × 120mm (or 3.5" HDD)
GPU Length Limit410 mm (262 mm if side-mounted 360mm radiator installed)
MaterialsABS,SGCC Steel,Tempered Glass
Expansion Slots7
Dimensions (L×W×H)437 \u00d7 235 \u00d7 501 mm
internal_storage_bays2 × 3.5,2 × 2.5

Physical

Cable Management~45 mm cable routing space
Weight8.7 Kg
Dimensions (mm)437 x 235 x 501 mm
Panel TypeTempered Glass Side Panel
MaterialABS,SGCC Steel,Tempered Glass
net_weight_kg8.7
weight_kg8.7
Form FactorATX Mid-Tower

Technical

Radiator SupportTop: up to 360mm,Side: up to 360mm,Rear: 120/140mm,Bottom: up to 360mm (model dependent)
radiator_support_mmTop: up to 360mm,Side: up to 360mm,Rear: 120/140mm,Bottom: up to 360mm (model dependent)
max_gpu_length_mm410
max_cpu_cooler_height_mm176

Cooling

Dust FiltersMagnetic filters on top and bottom
Dust FiltersMagnetic filters on top and bottom

Compatibility

Motherboard SupportITX,Micro-ATX,ATX
Motherboard SupportITX, Micro-ATX, ATX

Storage

drive_bays2 × 3.5,2 × 2.5
drive_bays2 × 3.5,2 × 2.5

Performance

Pre-installed Fans4 × 120mm PWM ARGB (3 side reverse-flow,1 rear)
pre_installed_fans4 × 120mm PWM ARGB (3 side reverse-flow,1 rear)

Appearance

Panel MaterialTempered Glass

Aesthetics

RGB LightingARGB on pre-installed fans

Identifiers

Model NumberCG580 4F
