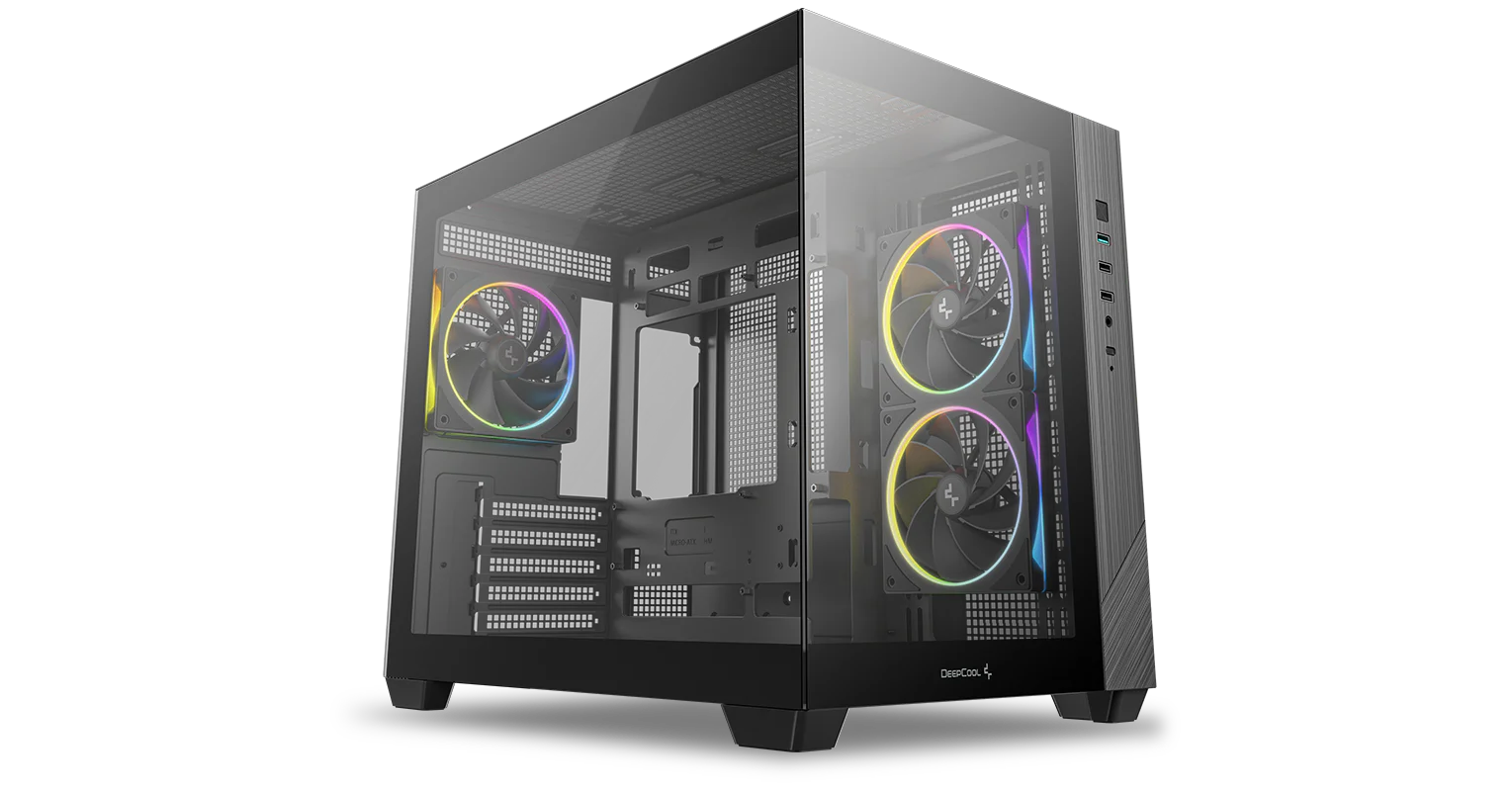

The DeepCool CG330 3F is a high-performance Micro-ATX PC chassis designed to combine aesthetics with superior cooling and flexible hardware support. Featuring a pillarless full-view tempered glass side panel, it showcases your build with stunning clarity. Its innovative dual-chamber layout separates power and storage components from the main airflow, enhancing thermal efficiency and cable management.
Pre-installed with three 120mm PWM ARGB fans (two on the side with reverse blade design and one at the rear), it creates an effective horizontal airflow path for optimal cooling. This case supports up to nine 120mm fans in total and accommodates radiators up to 360mm in length on the top and bottom, and up to 280mm on the side for advanced liquid cooling setups.

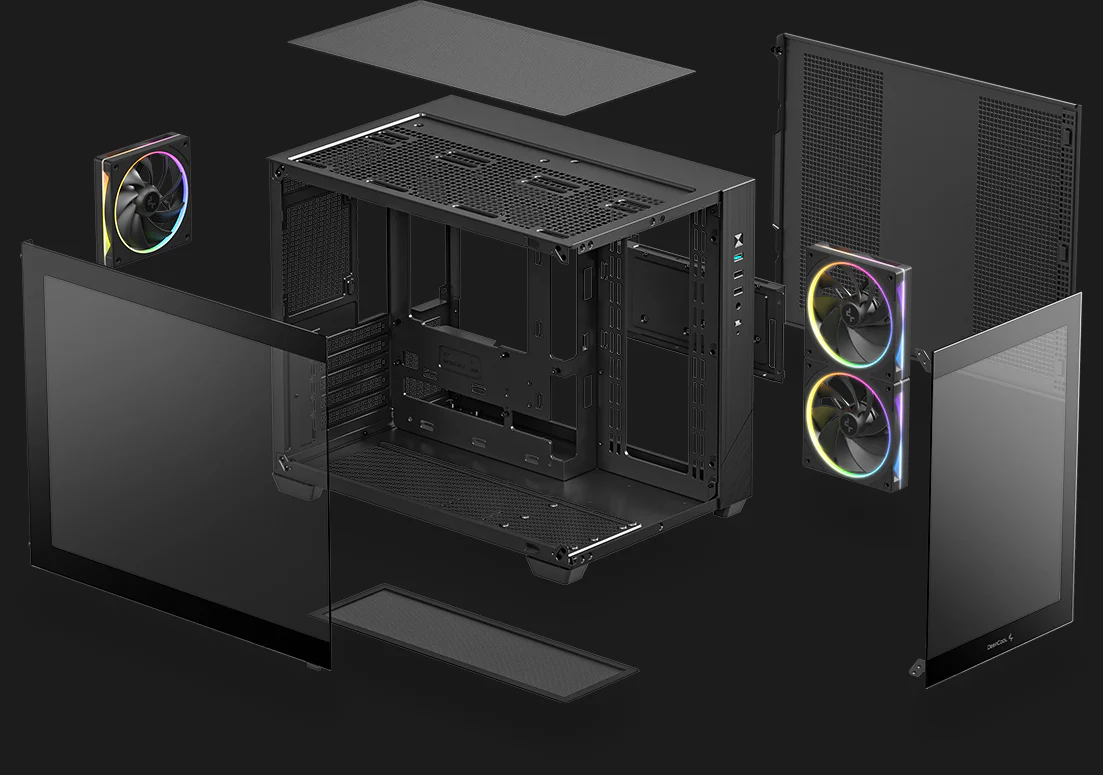

Storage and expansion are versatile with support for up to 2× 3.5" HDDs and 4× 2.5" SSDs, alongside five PCIe expansion slots for multiple GPUs or add-on cards. Compatibility extends to ITX and Micro-ATX motherboards, including those with rear connector/back-plug support, preserving clean and tidy cable routing.
Key features include GPU clearance up to 410mm, CPU cooler height limit of 163mm, and support for power supplies up to 200mm in length. The front I/O panel conveniently offers 1× USB 3.0, 2× USB 2.0 ports, and a single audio jack for easy access. Crafted from durable ABS, SPCC steel, and tempered glass, it balances sturdiness with lightweight design at just 5.5 kg. Compact dimensions (420×285×368mm) ensure it fits well on most desks while maximizing component compatibility.
Ideal for enthusiasts looking to build a clean, visually striking system with excellent airflow and expandability, the DeepCool CG330 3F blends style and performance in a cleverly designed compact footprint.
| Power Supply Length Limit | 200 mm |
| Front I/O Ports | 1× USB 3.0,2× USB 2.0,1× Audio jack |
| Cable Management Space | 46 mm |
| CPU Cooler Height Limit | 163 mm |
| GPU Length Limit | 410 mm |
| Fan Support | Top: 3×120mm/2×140mm,Side: 2×120mm/2×140mm,Bottom: 3×120mm/2×140mm,Rear: 1×120mm |
| Expansion Slots | 5 |
| Product Dimensions (L×W×H) | 420 \u00d7 285 \u00d7 368 mm |
| Materials | ABS,SPCC steel,Tempered Glass |
| internal_storage_bays | 3.5\" HDD (1+1); 4x 2.5\" SSD (2+2) |
| Radiator Support | Top: up to 360mm,Side: up to 280mm,Bottom: up to 360mm,Rear: 120mm |
| radiator_support_mm | Top up to 360 mm; Side up to 280 mm; Bottom up to 360 mm; Rear 120 mm |
| max_cpu_cooler_height_mm | 163 |
| max_gpu_length_mm | 410 |
| Pre-installed Fans | 3×120mm PWM ARGB (2 side reverse-blade,1 rear) |
| pre_installed_fans | 3×120mm PWM ARGB (2 side reverse-blade,1 rear) |
| RGB Lighting | ARGB lighting; supports motherboard ARGB control |
| drive_bays | 3.5" HDD: 2 (1+1),2.5" SSD: 4 (2+2) |
| drive_bays | Internal 2x 3.5\" HDD + 4x 2.5\" SSD |
| Model Number | R-CG330-BKNGM3-G |
| Model Number | R-CG330-BKNGM3-G |
| Net Weight | 5.5 kg |
| Material | ABS,SPCC steel,Tempered Glass |
| Panel Type | Tempered Glass |
| weight_kg | 5.5 |
| net_weight_kg | 5.5 |
| Form Factor | Micro-ATX |
| Dimensions (mm) | 420,285,368 |
| Motherboard Support | Mini-ITX,Micro-ATX (rear connector/back-plug support) |
| Motherboard Support | Mini-ITX,Micro-ATX |
| Panel Material | Tempered Glass |
