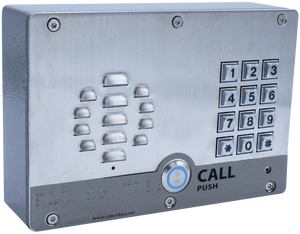

The CyberData SIP Outdoor Intercom with Keypad (Model 011214) is a robust, IP65-rated device designed for secure two-way communication and access control in outdoor environments. Featuring Power over Ethernet (PoE 802.3af) compatibility, it easily integrates with existing VoIP phone systems via SIP RFC 3261 protocol.

This intercom delivers full-duplex audio with enhanced acoustic echo cancellation, ensuring crystal-clear conversations, with an additional half-duplex push-to-talk option. It incorporates a 12-key backlit keypad with programmable speed dial functionality for quick access and user convenience.

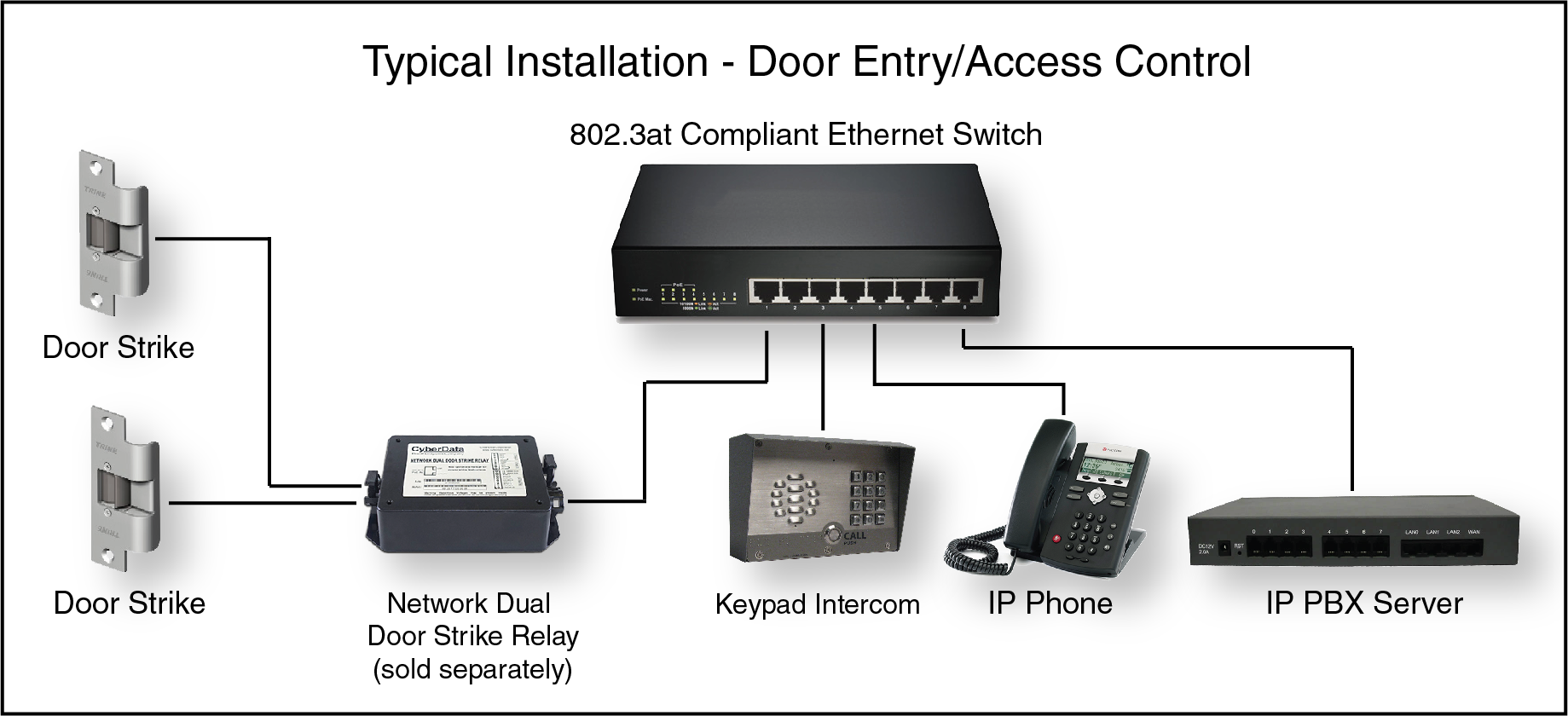

Key security features include support for up to 500 user codes, configurable access times, blacklisting capabilities, and a configurable relay (1A @ 30 VDC) plus DTMF-controlled dry relay contact for auxiliary device or door/gate control. It supports simultaneous SIP and multicast paging, along with a loud/night ringer feature to easily identify incoming calls.

The device supports multiple codecs including G.711 a-law, G.711 μ-law, G.722, and G.729 to ensure interoperability and audio quality. It includes strong network security with TLS 1.2, SRTP, and HTTPS web-based configuration with autoprovisioning via HTTP, HTTPS, or TFTP.

With an operating temperature range from -40 °C to 55 °C and rugged IP65 enclosure, this outdoor intercom is ideal for commercial, educational, retail, industrial, and municipal installations like parking garages or shipyards.

Dimensions: 190 mm (L) x 58 mm (W) x 130 mm (H)

For detailed installation guides and firmware updates, visit the [CyberData product page](https://www.cyberdata.net/products/011214).
