Brateck LDT80-C024UCP Matte Black Heavy-Duty Gas Spring Dual Monitor Arm with USB-A & USB-C for 24"-57" Screens, Adjustable Tilt, Swivel & Rotation
★ 0.0 Rating (0 user feedback)

SKU: ldt80-c024ucp

Availability: In Stock

Brand: Brateck

Category: Monitor Arms & Mounts

$329.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

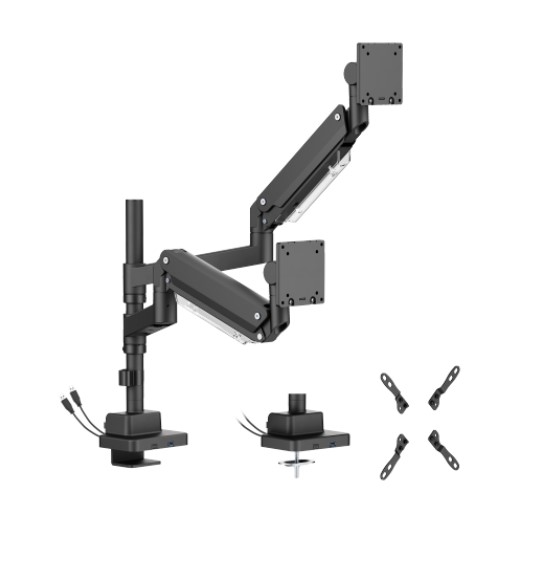

The Brateck LDT80-C024UCP is a premium matte black, super heavy-duty pole-mounted gas spring dual monitor arm designed to support large monitors ranging from 24" to 57", including curved screens. Crafted with a robust combination of steel, aluminum, and plastic, it features a durable powder-coated finish that ensures long-lasting performance and a sleek, modern look.

Key Features:

  • Detachable Quick Release VESA Plate: Simplifies installation and allows fast, tool-free monitor attachment or removal.
  • Built-in Spring Tension Mechanism: Enables precise weight adjustment to balance monitors effortlessly.
  • Multiple VESA Adapters Included: Compatible with 75×75, 100×100, 100×200, 200×100, and 200×200 mounting holes.
  • Optimized Tilting Structure: Provides excellent weight-bearing capacity and smooth, flexible adjustment for large and heavy screens.
  • Top-Side Installation: Supports clamp or grommet mounting methods with desktop thickness from 10 mm to 50 mm, installing entirely from above the desk surface.

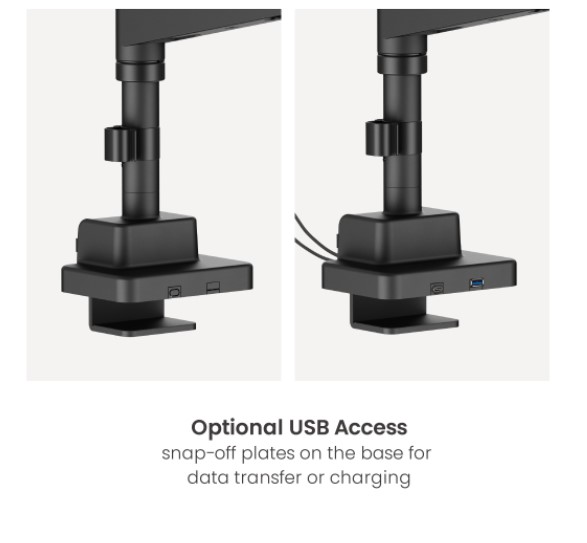

  • Smart Base with USB Ports: Equipped with snap-off plates featuring 1×USB 3.0 (Type-A) and 1×USB Type-C port for data throughput and device charging convenience.
  • Ergonomic Adjustments: Offers a wide tilt range (+60° to -20°), swivel (+90° to -90°), and screen rotation (+90° to -90°) for maximum ergonomic comfort.
  • Extensive Reach and Height: Arm extends up to 580 mm (22.8") and mounts on a 485 mm (19.1") pole.
  • Cable Management: Integrated system keeps cables tidy and organized for a clean workspace.
Designed for dual monitor setups in professional and home office environments, the Brateck LDT80-C024UCP ensures enhanced productivity with ergonomic flexibility, solid build quality, and smart connectivity options.

Accessory

Quick Release VESA PlateYes
Quick Release VESA Plate1

General

Supported Desktop Thickness (Clamp/Grommet)10 - 50 mm (0.39 - 2 inches)
Pole Height485 mm (19.1 inches)
Arm Full Extension580 mm (22.8 inches)
Supports Curved MonitorsYes
Weight Capacity per Curved Screen2 - 22 kg (4.4 - 48.4 lbs)
Screen Quantity Supported2
Dimension (LxWxH)1145 x 131 x 925 mm (45.1 x 5.2 x 36.4 inches)

Physical

Cable ManagementIntegrated
Surface FinishPowder Coating
ColorMatte Black
Cable ManagementIntegrated
Surface FinishPowder Coating
MaterialSteel,Aluminum,Plastic
dimensions_inches45.1 x 5.2 x 36.4 inches
arm_full_extension_mm580
Dimensions (mm)1145 x 131 x 925 mm

Technical

USB Ports1x USB 3.0 (Type-A),1x USB Type-C
Installation MethodClamp or Grommet
VESA Compatibility75x75,100x100,100x200,200x100,200x200 mm
Compatible Screen Size24\" - 57
USB Ports1x USB 3.0 (Type-A),1x USB Type-C

Motion

Rotation Range+90\u00b0 to -90\u00b0
Swivel Range+90\u00b0 to -90\u00b0
Tilt Range+60\u00b0 to -20\u00b0
Screen Rotation+90\u00b0 to -90\u00b0
Rotation Range+90\u00b0 to -90\u00b0
Swivel Range+90\u00b0 to -90\u00b0
Tilt Range+60\u00b0 to -20\u00b0

Performance

Weight Capacity per Screen2 - 27 kg (4.4 - 59.4 lbs)
maximum_load_capacity_per_screen_kg27
Weight Capacity per Screen (lbs)59.4
weight_capacity_per_screen_kg27
max_load_capacity_total_kg54

Identification

Product categoryGas Spring Monitor Arm
Product categoryGas Spring Monitor Arm

Compatibility

screen_size_inches24

Mechanical

tilt_range_deg+60\u00b0 to -20\u00b0
rotation_range_deg+90\u00b0 to -90\u00b0
swivel_range_deg+90\u00b0 to -90\u00b0

Mounting

Mount TypePole-mounted
Mount PositionPole-mounted

Identifiers

Model NumberLDT80-C024UCP
