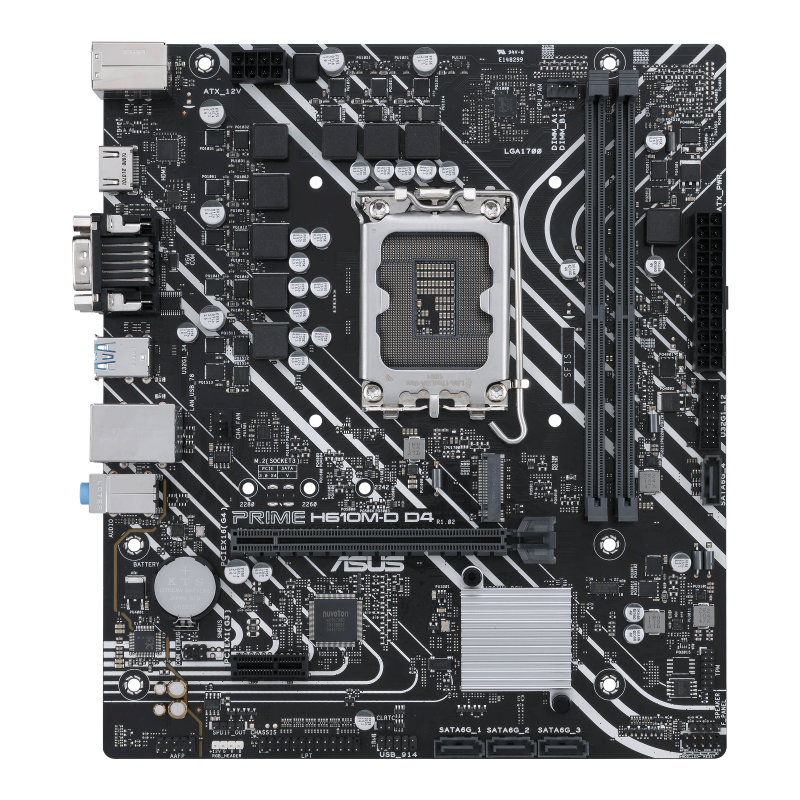

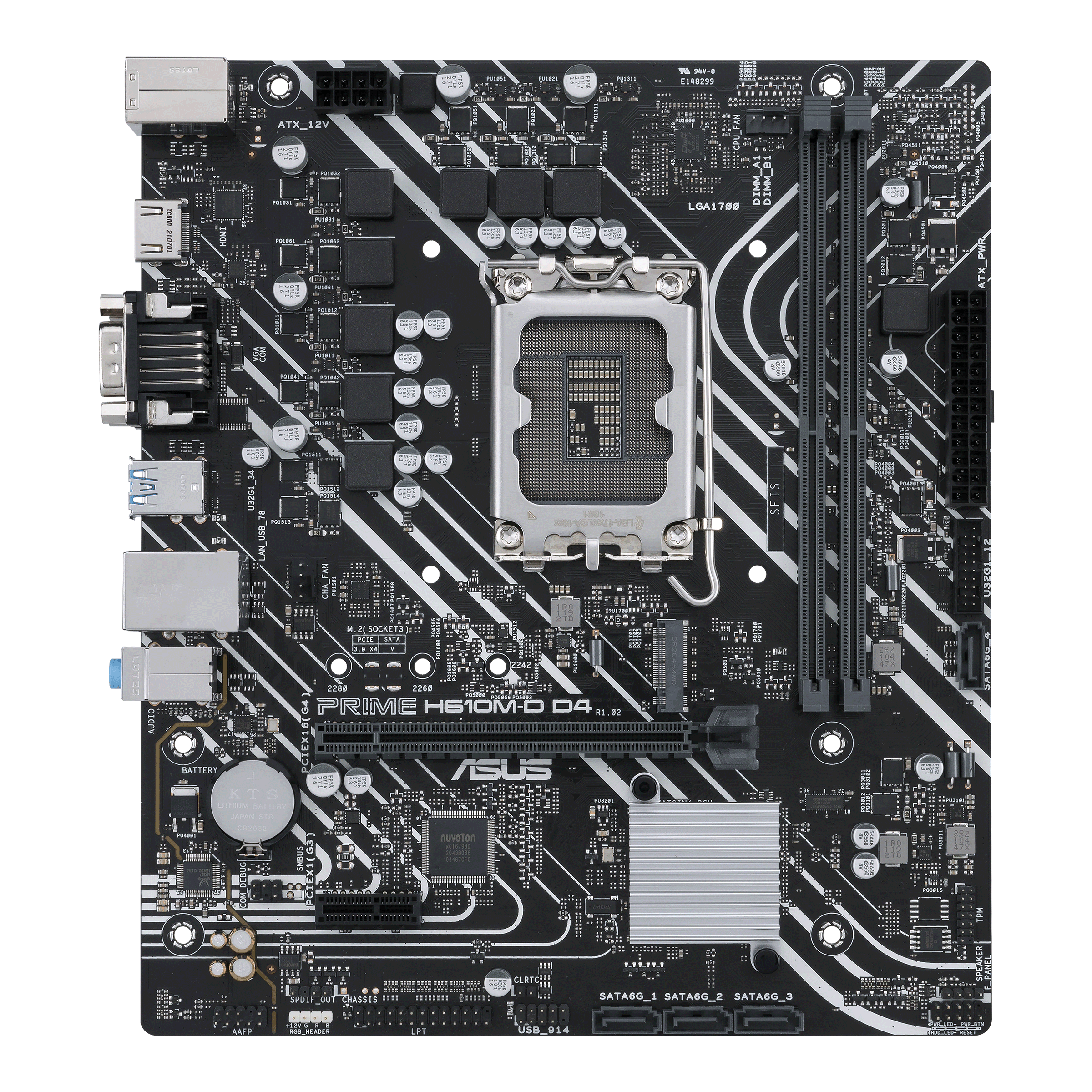

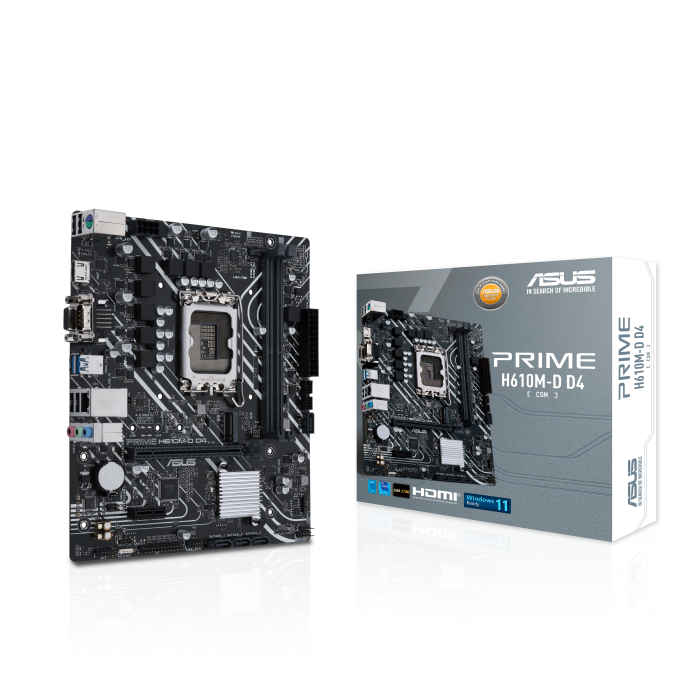

ASUS PRIME H610M-D D4-CSM is a versatile micro-ATX motherboard engineered for Intel LGA 1700 socket processors, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron CPUs. Designed with a focus on stability, expandability, and connectivity, this board is ideal for both corporate and advanced personal computing needs.

• Memory & Performance: Supports up to 64 GB of DDR4 memory across 2 DIMM slots with speeds up to 3200 MHz (dependent on CPU), and features dual channel architecture for optimized bandwidth.
• Expansion & Graphics: Equipped with a PCIe 4.0 x16 slot for discrete GPUs and a PCIe 3.0 x1 slot for additional expansion cards. Integrated graphics output options include HDMI 2.1 supporting 4K@60Hz and legacy D-Sub VGA for broad compatibility.
• Storage: Offers one M.2 slot supporting PCIe 3.0 x4 and SATA SSDs with form factors 2242/2260/2280, along with four SATA 6 Gbps ports for traditional drives.
• Connectivity: Includes Realtek 1 Gb Ethernet for stable networking, USB 3.2 Gen 1 Type-A ports, USB 2.0 ports, and front-panel USB headers to support modern peripherals.
• Reliability Features: Comes with ASUS 5X Protection III hardware safeguards, Digi+ VRM controls, comprehensive cooling solutions via PCH heatsink and multiple fan headers, and the Fan Xpert system for thermal management.
• Corporate Focus: Part of ASUS’s Corporate Stable Model (CSM) program, it supports ASUS Control Center Express (ACCE) endpoint management software, facilitating easier IT administration in enterprise environments.
