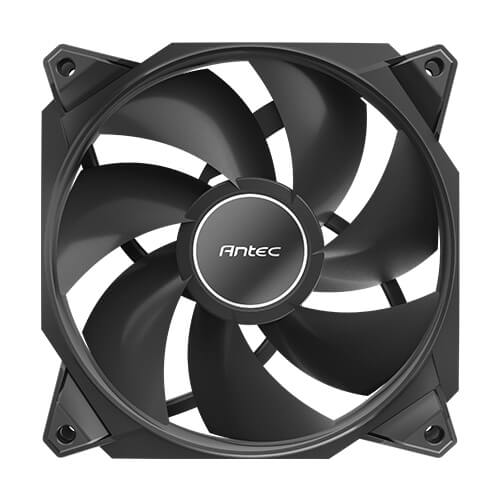

Antec StormT3 120mm PWM FDB High Airflow Case Fan with Daisy Chain, 80.47 CFM, 2.95 mmH2O Static Pressure, 36.99 dB Noise, 3-Year Warranty
โ˜… 0.0 Rating (0 user feedback)

SKU: storm t3 120 pwm

Availability: Out of Stock

Brand: Antec

Category: Cooling & Fans

$49.00


100% Guarantee Safe Checkout

Description
SPECIFICATION
Review

The Antec StormT3 120mm PWM Case Fan is engineered for high-performance cooling with its thick 30mm frame and enhanced blade design that concentrates airflow efficiently. Featuring a Fluid Dynamic Bearing (FDB), this fan offers exceptional durability with a lifespan of up to 70,000 hours at 25ยฐC. The specialized air-concentrating frame and curved blades minimize turbulent flow and reduce noise, delivering powerful yet quiet operation.

Designed for easy installation, the fan supports PWM speed control with a 4-pin connector and includes a unique daisy-chain design that allows multiple fans to be connected with 3-pin connectors without signal interference, optimizing system airflow management.

To further improve noise reduction, the StormT3 is equipped with vibration-absorbing rubber mounting pads, which efficiently dampen vibrations and operational noise. This fan runs on a rated voltage of DC 12V (operating range DC 6.0โ€“13.8V) and has a variable fan speed of 600 to 2200 RPM ยฑ 10%, producing airflow up to 80.47 CFM and a static pressure up to 2.95 mmHโ‚‚O.

With a 3-year manufacturer's warranty, the Antec StormT3 is a reliable choice for gamers, enthusiasts, and PC builders seeking high airflow and quiet cooling solutions.

Key Features:

  • Dimensions: 120 x 120 x 30 mm (thicker for improved air movement)

  • PWM 4-pin connector with daisy-chain capability

  • Fluid Dynamic Bearing for extended lifespan and quiet operation

  • Thickened blades with air-concentrating design for optimized airflow

  • Vibration-absorbing rubber pads for noise reduction

  • Rated voltage: DC 12 V (operating range 6.0โ€“13.8 V), current โ‰ค 0.21 A

  • Fan speed range: 600โ€“2200 RPM ยฑ10%

  • Airflow: up to 80.47 CFM

  • Static Air Pressure: up to 2.95 mmHโ‚‚O

  • Low noise level with effective acoustic design
Ideal for: Enhancing case ventilation, maintaining system temperatures, and reducing noise in gaming rigs, workstations, and desktop PCs.

General

Mounting Pads8 x 6mm rubber vibration absorbing
Expected Lifespan70,000 hours at 25ยฐC
Rated Current\u2264 0.21 A
Connector4-pin PWM with 3-pin daisy-chain adapters
Noise Level (dB(A))Up to 36.99 dB(A)
Rated VoltageDC 12 V
Operating Voltage RangeDC 6.0 to 13.8 V
Fan Speed (RPM)600 - 2200 \u00b1 10%
airflow_cfm18.17 - 80.47
Static Air Pressure (mmHโ‚‚O)0.25 - 2.95
Fan Speed (RPM)600 - 2200 RPM (\u00b110%)
num_fans1

Support

Warranty3 Years

Technical

Bearing TypeFluid Dynamic Bearing (FDB)
Fan TypePWM Case Fan
Bearing TypeFluid Dynamic Bearing (FDB)
Fan TypePWM

Cooling

Fan Size120 x 120 x 30 mm

Identifiers

Model NumberAF12012GH2PB
Model NumberAF12012GH2PB

Power

Power Consumption (W)2.52

Performance

Air Pressure UnitmmH2O
static_pressure_mm_h2o2.95
Airflow UnitCFM
max_airflow_cfm80.47
fan_noise_db36.99

Package

Mounting Kit Included

Warranty

Warranty (years)3

Durability

lifsespan_hours70000

Electrical

Current Draw (Fan)0.21
Rated Voltage (Fan)12

Physical

Connector Type4-pin PWM with 3-pin daisy-chain adapters
fan_dimensions_mm120 x 120 x 30 mm

Identification

ManufacturerAntec
