SKU: fcr200sc.20
Availability: In Stock
Brand: Alloy
Category: Switches
100% Guarantee Safe Checkout

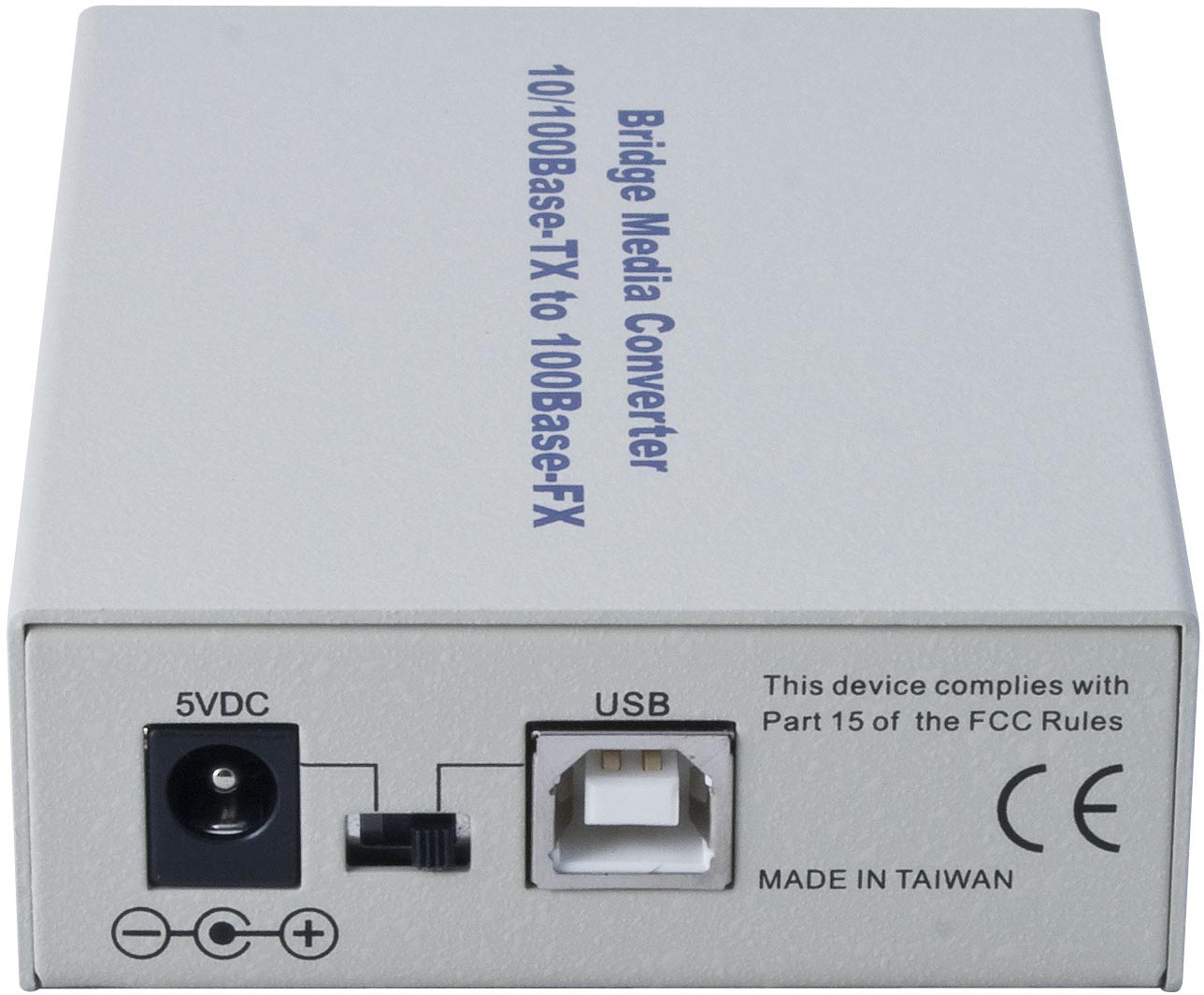

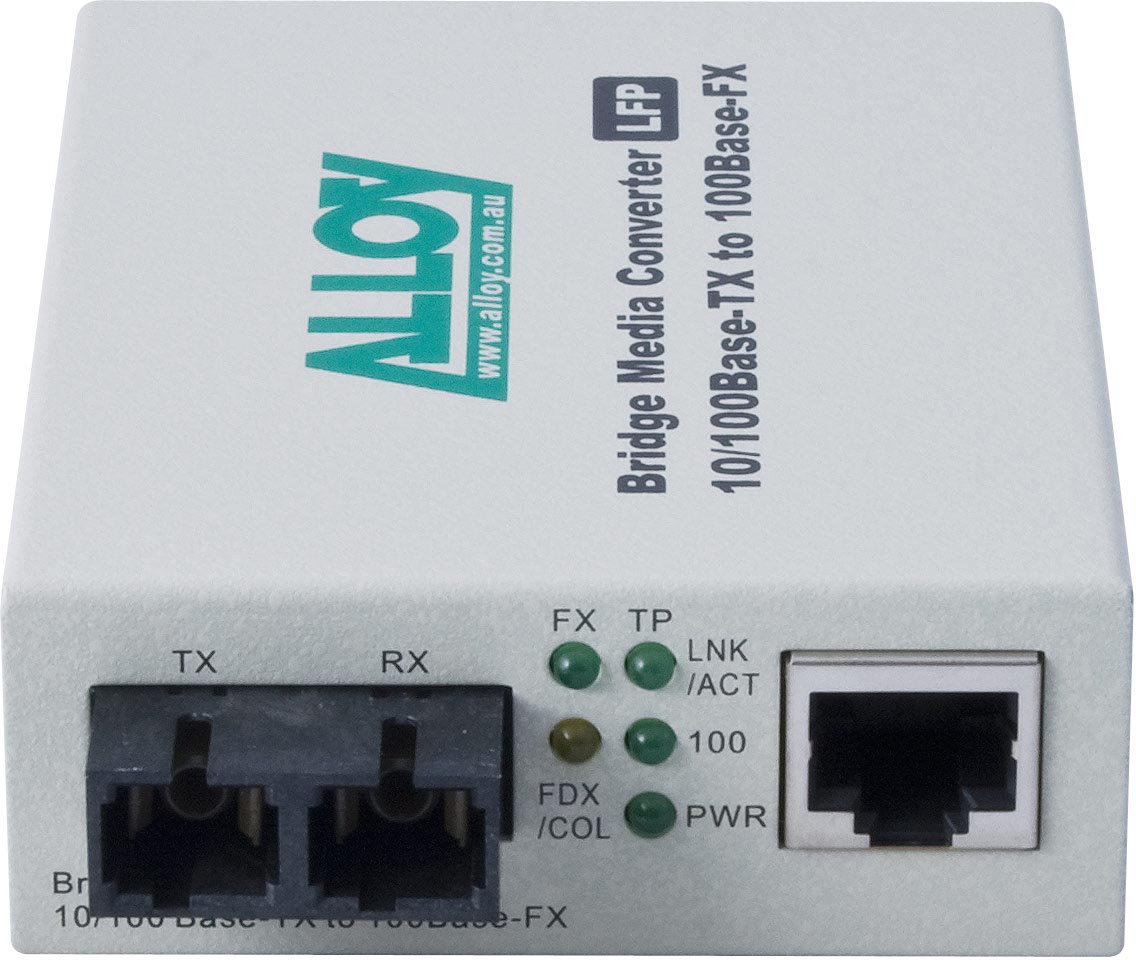

The Alloy FCR200SC.20 is a high-performance Fast Ethernet media converter designed to bridge copper and singlemode fibre networks seamlessly. Operating at speeds of 10/100 Mbps, it features an auto-sensing RJ-45 10/100Base-TX copper port and a 100Base-FX singlemode SC fibre port that supports distances up to 20 kilometres using a 1300 nm wavelength. This dual-purpose device can function as a standalone unit powered via an external 5V DC plugpack or USB, or be installed as a modular converter within the Alloy DCR12 Series 12-slot Media Converter Chassis.
Key highlights include advanced Link Fault PassThrough (LFP) capabilities with Far-end-Fault (FEF) and Forced Mode (FM) options, ensuring enhanced network reliability by synchronizing link fault signals between copper and fibre interfaces. The RJ-45 port supports automatic MDI/MDIX crossover detection and speed/duplex auto-negotiation, simplifying integration into existing Fast Ethernet infrastructures.
Encased in a compact, rugged all-metal chassis, the FCR200SC.20 offers comprehensive LED status indicators for real-time device monitoring. Its flexible operation modes and reliability features make it ideal for telecommunications, enterprise networks, and industrial Ethernet applications requiring media conversion between copper and long-distance singlemode fibre links.
| memory_type | RJ-45,10/100 Mbps (Auto-negotiation) |
| Bands | Supports Far-end-Fault (FEF) and Forced Mode (FM) |
| WiFi Speed (Mbps) | SC Singlemode |
| Voltage (V) | External 5V DC Plugpack or USB Power |
| Module Configuration | 20 |
| Total Capacity (GB) | SC Singlemode |
| Part Number | Comprehensive LED suite |
| Networking Interfaces | Singlemode |
| WAN/LAN Ports | Compact all-metal case |
| Ethernet Ports | RJ-45 |
| Management Interface | Auto MDI\/MDIX crossover detection |
| Backhaul | Standalone or Module for Alloy DCR12 Series Chassis |
| Mesh Technology | External 5V DC Plugpack or USB Power |
| Model Number | 20 Kilometres |
| Product Type | 10\/100 Mbps (Auto-negotiation) |
| Series | FCR200SC.20 |
| Tested Latency | 10\/100Base-TX (RJ-45) to 100Base-FX (SC) Singlemode Fibre |
| SPD Timings | SC |
| Tested Speed (MHz) | 1 |
| CAS Latency (CL) | Singlemode |
| Speed (MHz) | 10\/100 Mbps (Auto-negotiation) |
| Pins | 0.1 |
| Heat Spreader | 1 |
| Form Factor | 2 ports (1x RJ-45 copper,1x SC fibre) |
| Model Number | FCR200SC.20 |
